Product code: 8P-690-2690F-16G-65H12V

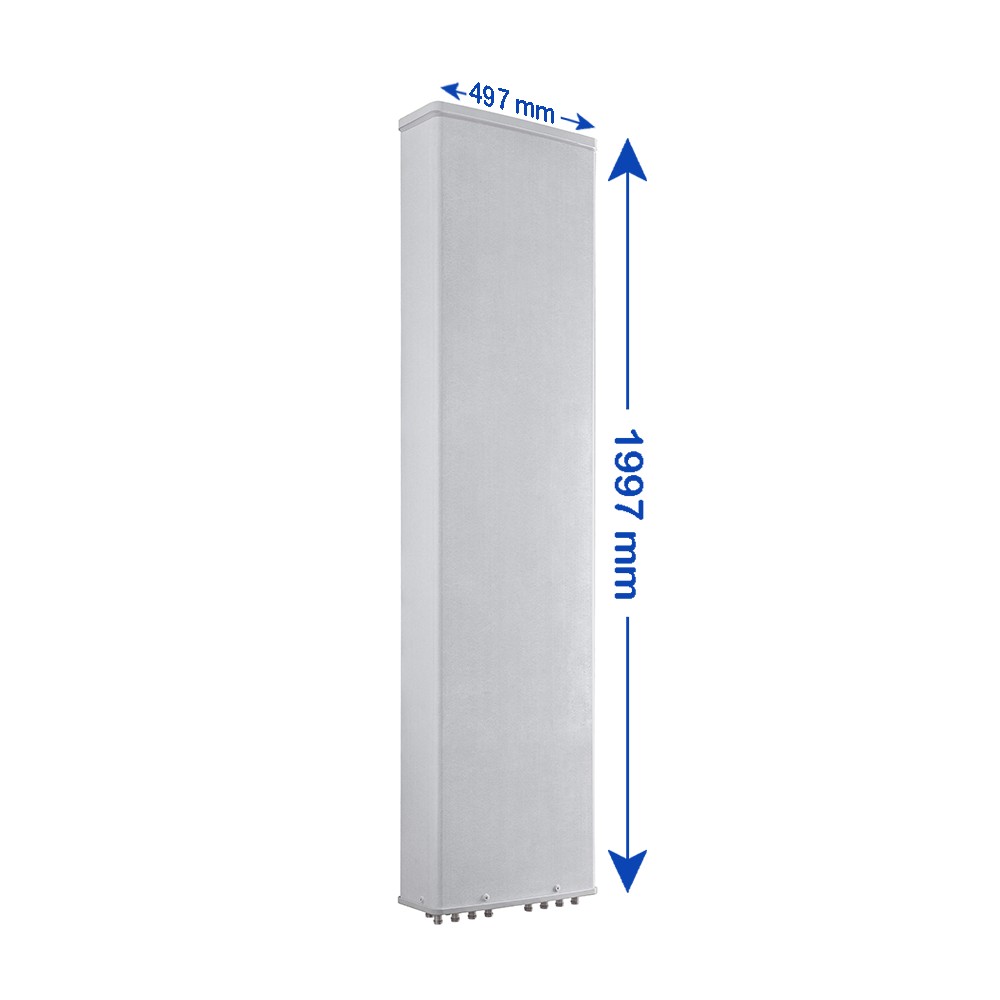

8-Port, Panel Sector Antenna, 65° HBW, 690-960/690-960/1427-2690/1427-2690 MHz, 15.5/15.5/18/18 dBi, 2-12°T, 1.997 m

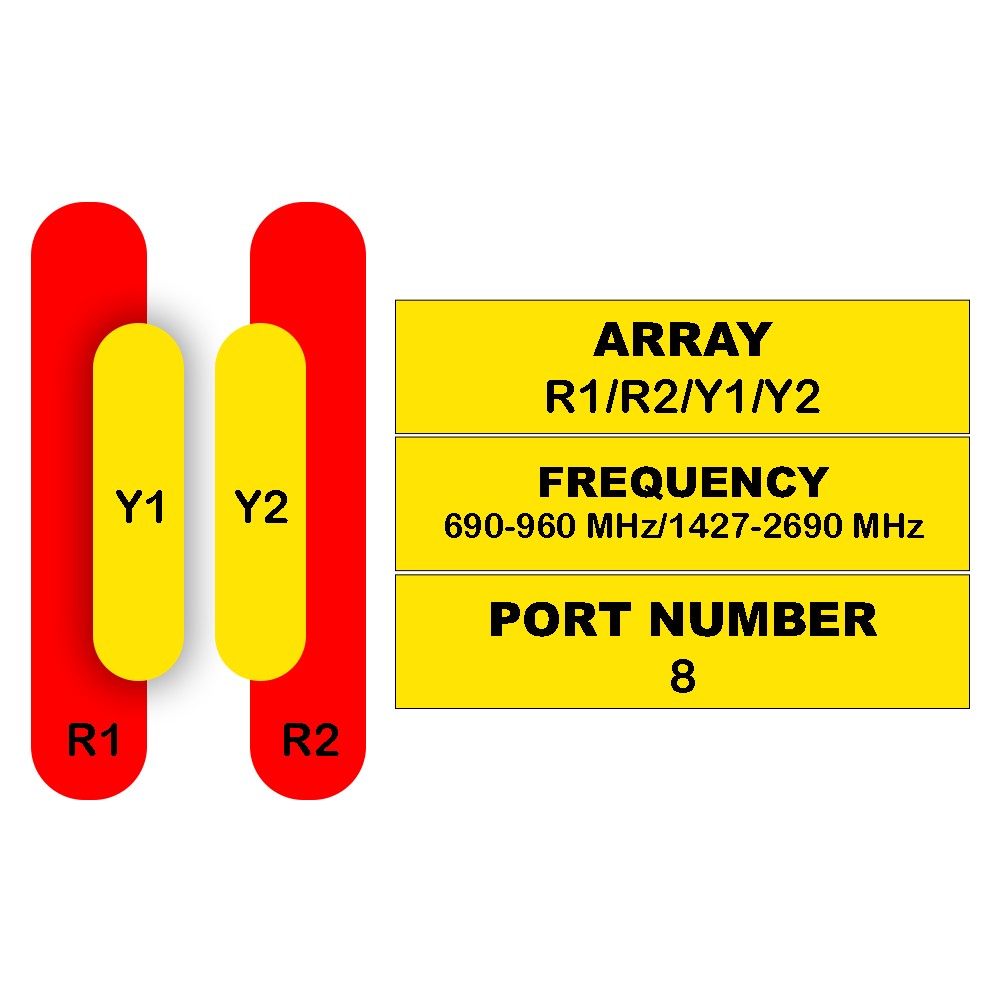

| 8-Port Antenna | R1 | R2 | Y1 | Y2 |
| Frequency Range (MHz) | 690-960 | 690-960 | 1427-2690 | 1427-2690 |
| HBW | 65° | 65° | 65° | 65° |
| Gain | 15.5 dBi | 15.5 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° |

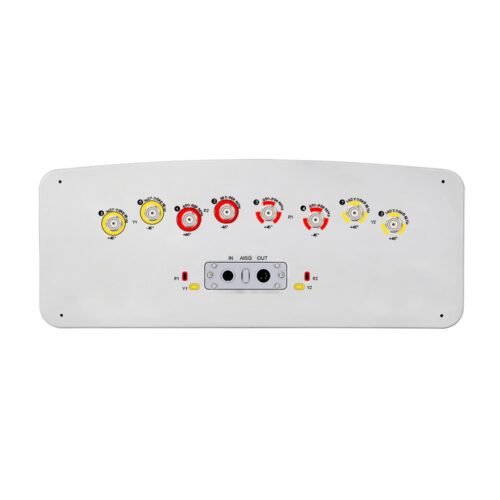

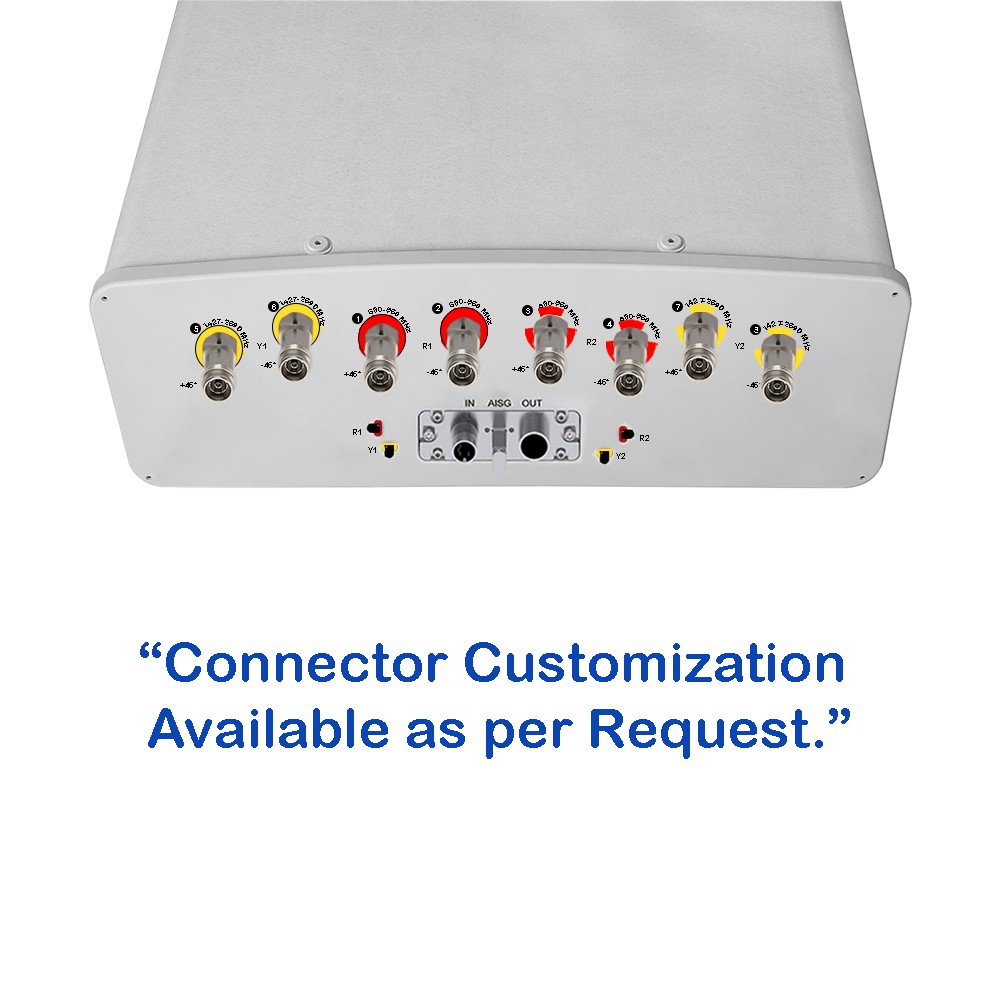

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
