8-Port, Panel Sector Antenna, 65° HBW, 698-960/(3x) 1710-2690 MHz, 13/16/16/16 dBi, 3-16°/2-12°T, 0.997 m

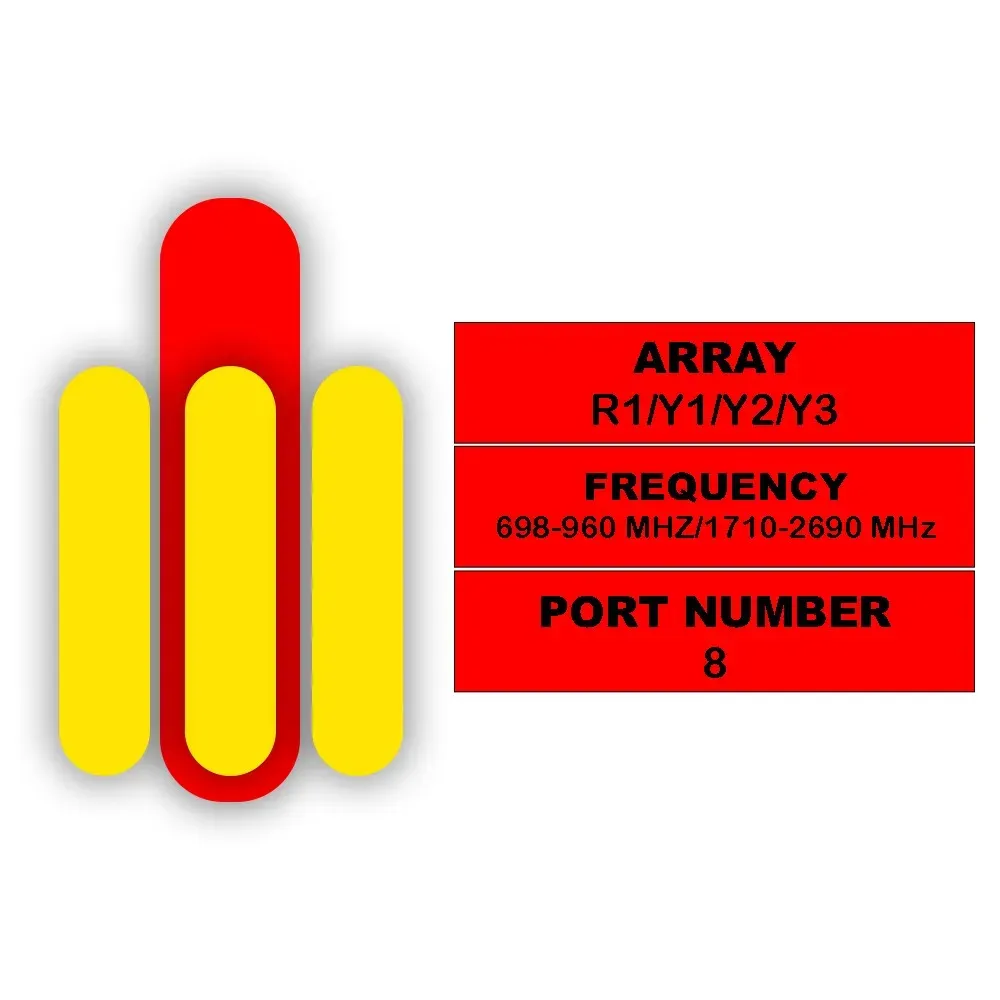

8-Port Antenna	R1	Y1	Y2	Y3
Frequency Range (MHz)	698-960	1710-2690	1710-2690	1710-2690
HBW	65°	65°	65°	65°
Gain	13 dBi	16 dBi	16 dBi	16 dBi
Tilt	3-16°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

8P-698-2690F-16G-65H21V

Electrical & Mechanical Specification

Electrical Specifications
			R1			Y1 / Y2 / Y3
Frequency Range		MHz	698-960			1710-2690
Frequency Range		MHz	698-806	790-894	880-960	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	12.6	12.9	13.2	15.3	15.6	15.9	16.2	16.2
Gain	Over All Tilts	dBi	12.4 ± 0.4	12.7 ± 0.4	13.0 ± 0.3	15.1 ± 0.5	15.4 ± 0.5	15.7 ± 0.4	16.0 ± 0.4	16.0 ± 0.4
Horizontal Beamwidth		degree	68 ± 2.9	65 ± 2.9	63 ± 4.1	69 ± 4.5	67 ± 5.1	65 ± 5.2	63 ± 5.3	63 ± 4.9
Vertical Beamwidth		degree	23.5 ± 1.5	20.5 ± 1.5	18.6 ± 1.5	9.5 ± 0.6	8.8 ± 0.5	7.9 ± 0.5	7.2 ± 0.4	6.5 ± 0.4
Electrical Downtilt, Continuously Adjustable		degree	Mar-16			2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio ±30°		dB	> 24	> 25	> 25	> 25	> 25	> 25	> 25	> 25
Cross Polar Discrimination at Boresight		dB	> 17	> 18	> 17	> 16	> 17	> 17	> 18	> 18
Isolation	Cross-Polar	dB	> 25			> 25
Isolation	Port-To-Port	dB	> 25			> 25
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
Connectors		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: GND
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

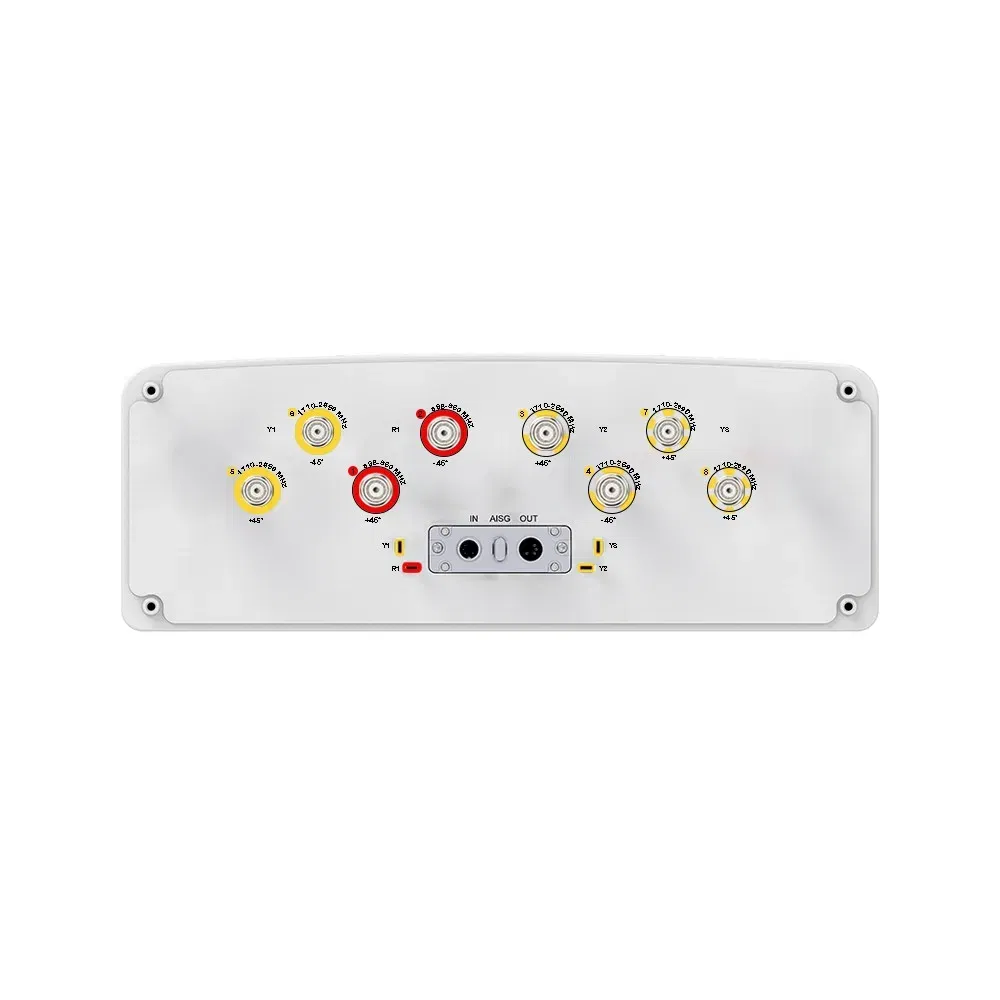

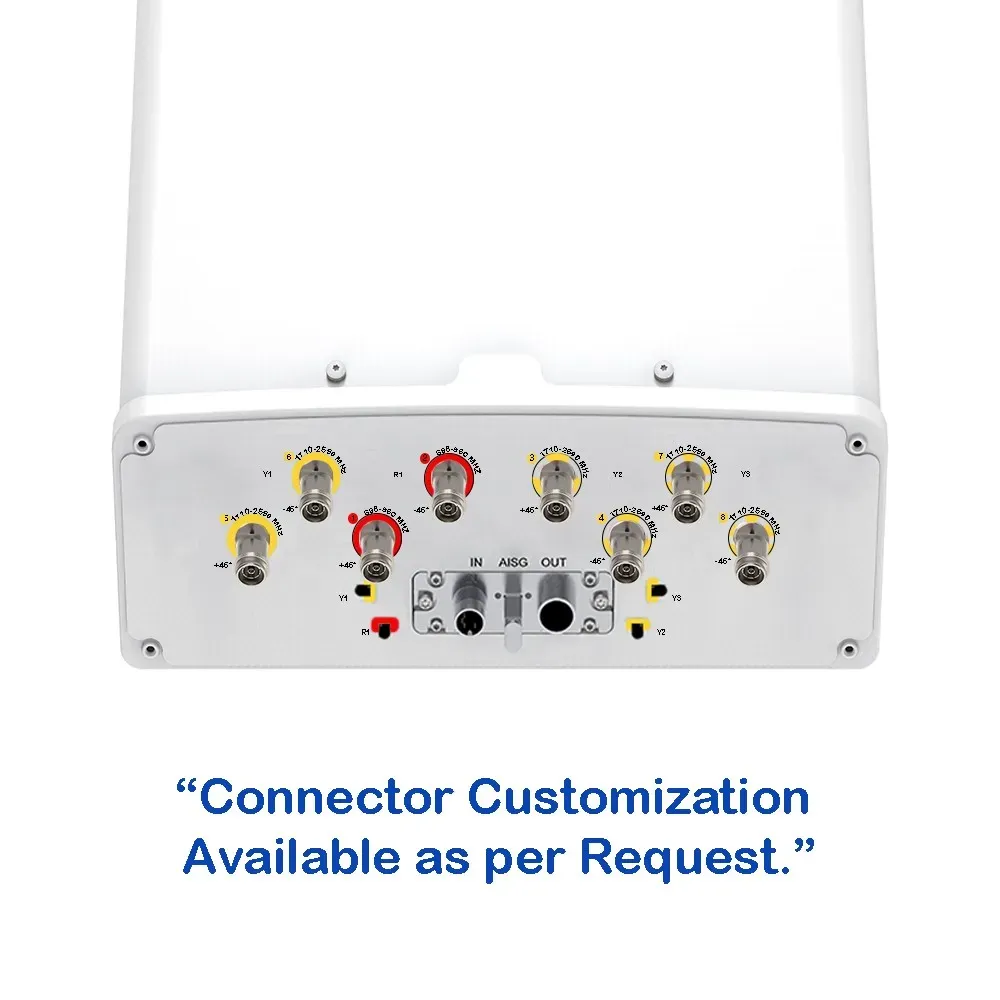

Connector Type		—	(8x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

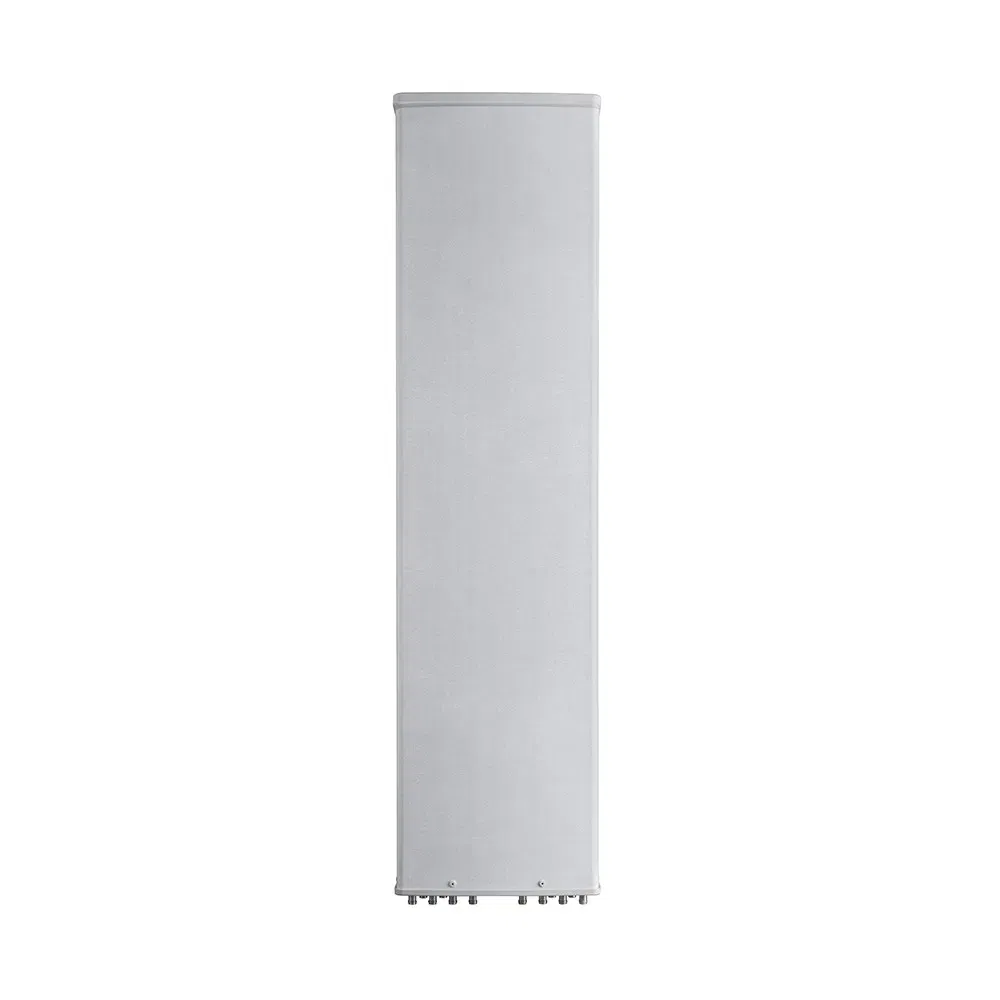

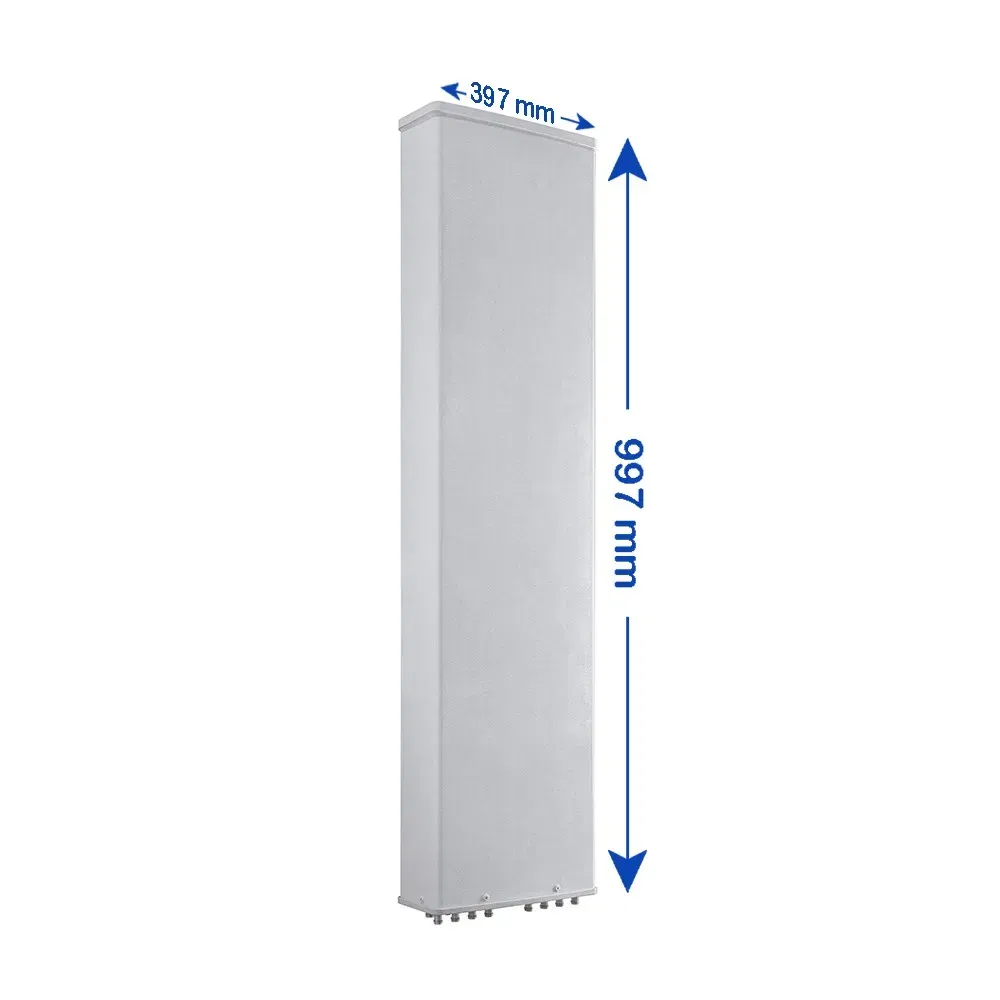

Antenna Dimensions (H x W x D)		mm (in)	997 x 397 x 157 (39.3 x 15.6 x 6.2)
Antenna Weight	Antenna Only	kg (lbs)	16 (35.3)
Antenna Weight	with Clamps	kg (lbs)	20 (44.1)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	365 (82.1)
at 150 km/h	Rear	N (lbf)	410 (92.2)
	Lateral	N (lbf)	180 (40.5)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
