Product code: 8P-1710-2690F-18G-65H7V

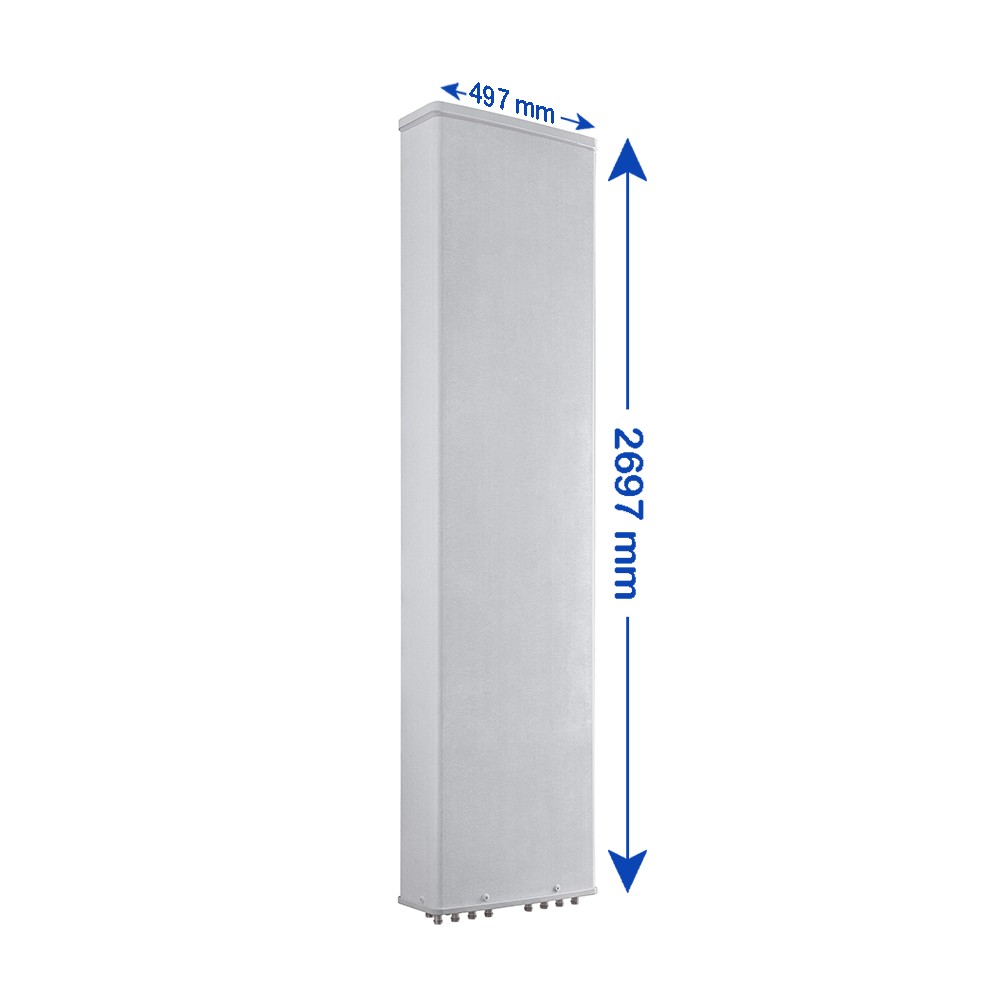

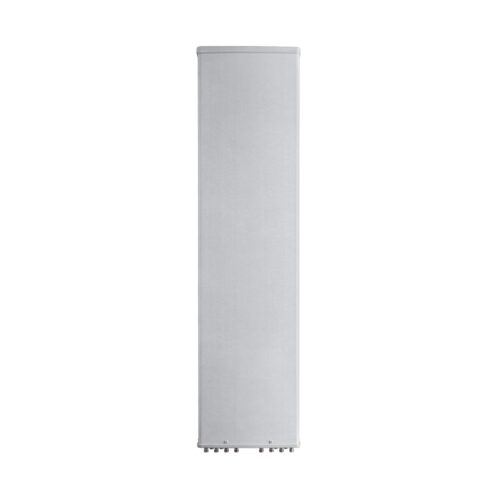

8-Port, Panel Sector/Split-Beam Antenna, 65°/65°/35°/35° HBW, (4x) 1710-2690 MHz, 18/17.5/20.5/20.5 dBi, 2-12°T, 2.697 m

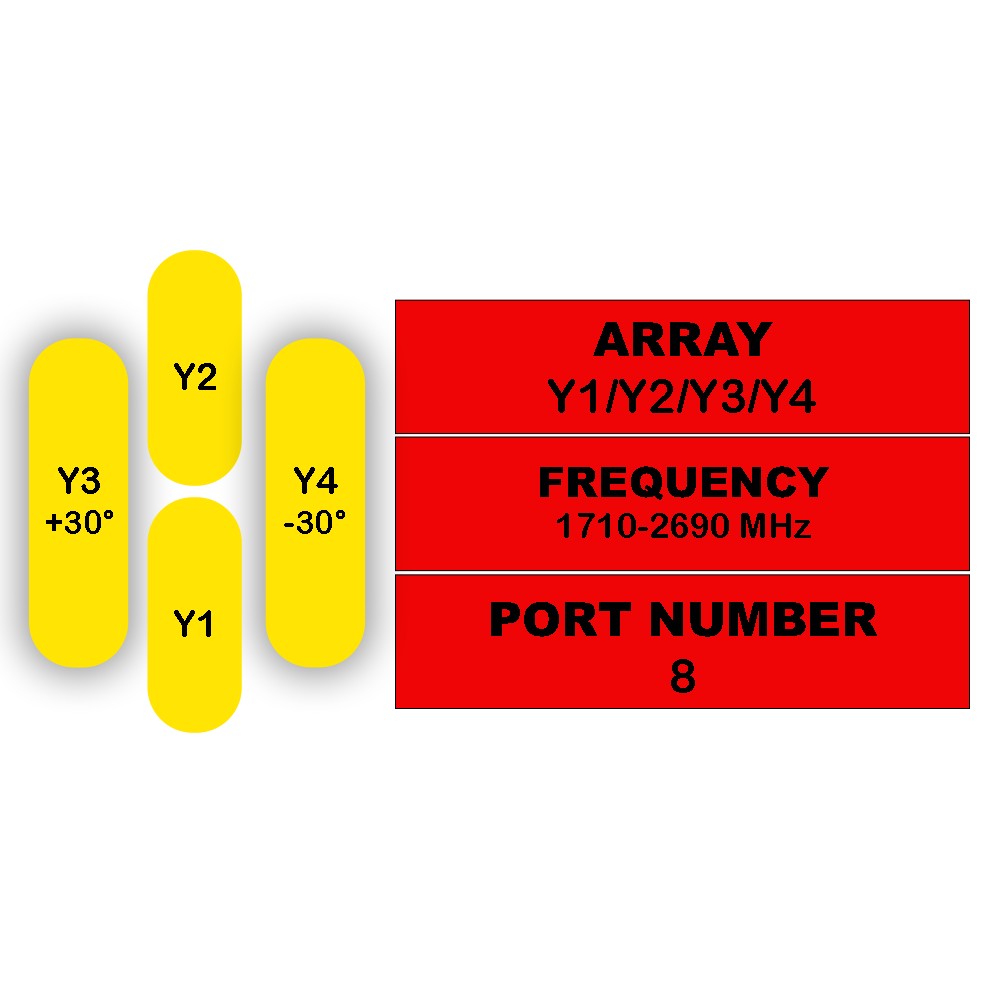

| 8-Port Antenna | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 65° | 35° | 35° |
| Gain | 18 dBi | 17.5 dBi | 20.5 dBi | 20.5 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° |

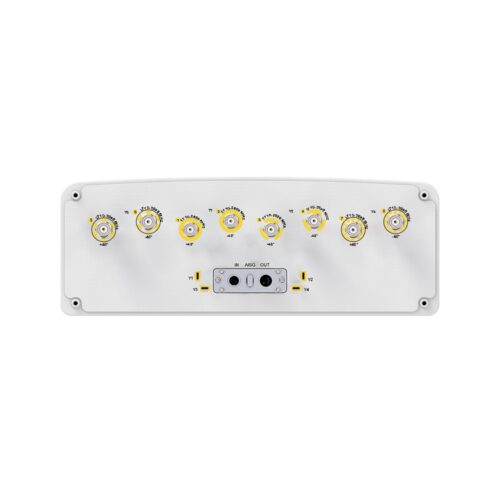

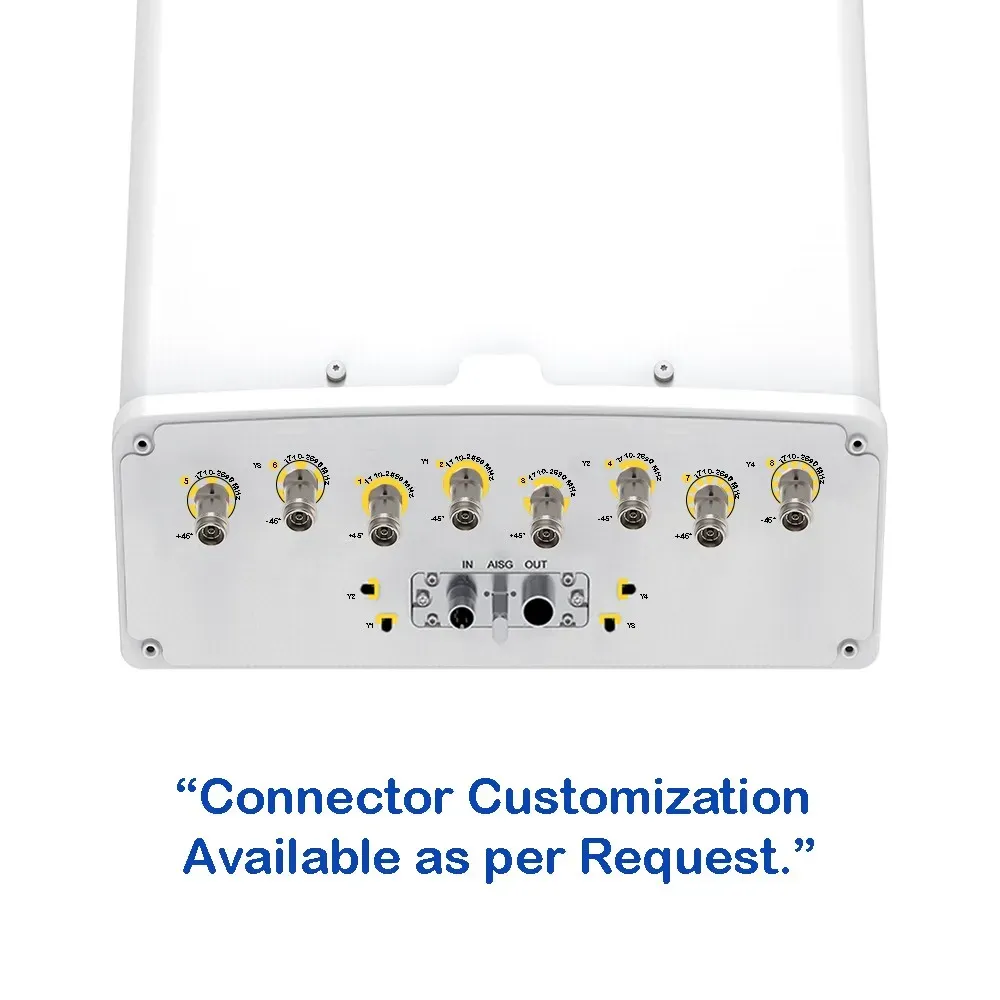

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
