8-Port, Panel Split Beam Antenna, 33° HBW, (4x) 1710-2400 MHz, 17/17/17/17 dBi, 2-12°T, 0.997 m

Please send purchase request at sales@mtsrl.in

Product code: 8P-1710-2400F-17G-33H21V-1

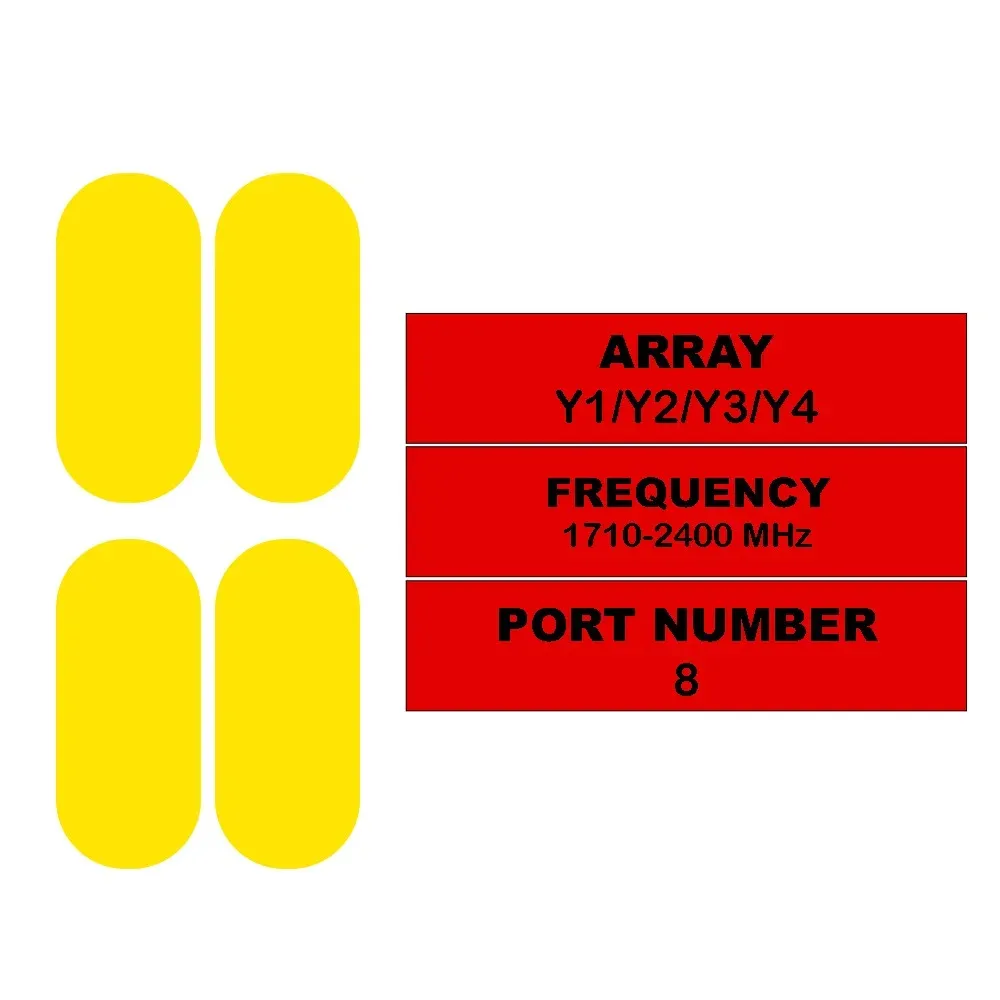

8-Port Antenna	Y1	Y2	Y3	Y4
Frequency Range (MHz)	1710-2400	1710-2400	1710-2400	1710-2400
HBW	33°	33°	33°	33°
Gain	17 dBi	17 dBi	17 dBi	17 dBi
Tilt	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

Product Part Number

8P-1710-2400F-17G-33H21V-1

Electrical & Mechanical Specification

Electrical Specifications
			Y1 / Y2 / Y3 / Y4
		MHz	1710-2400
Frequency Range		MHz	1710-1880	1850-1990	1920-2170	2300-2400
Polarization		—	±45°
	at Mid Tilt	dBi	16	16.3	16.6	16.8
Gain	Over All Tilts	dBi	15.9 ± 0.6	16.2 ± 0.6	16.5 ± 0.6	16.7 ± 0.6
Horizontal Beamwidth		degree	35 ± 3	33 ± 3	31 ± 3	27 ± 3
Azimuth Beam Pointing		degree	Y1 & Y3: +30; Y2 & Y4: -30
Vertical Beamwidth		degree	21 ± 2.5	19.5 ± 2.5	18 ± 2	16 ± 2
Electrical Downtilt, Continuously Adjustable		degree	2-Dec
First Upper Side Lobe Suppression		dB	> 14	> 14	> 14	> 14
Front-To-Back Ratio Co-Pol, ±30°		dB	> 23	> 23	> 23	> 23
Cross Polar Discrimination at Boresight		dB	> 15	> 15	> 15	> 15
	Cross-Polar (Same Beam)	dB	≥ 23
	Beam-to-Beam	dB	≥ 14
Isolation	Interband	dB	≥ 25
Impedance		Ohm	50
VSWR		—	< 1.5
Return Loss		dB	> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150
Lightning Protection		—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200

Mechanical Specifications

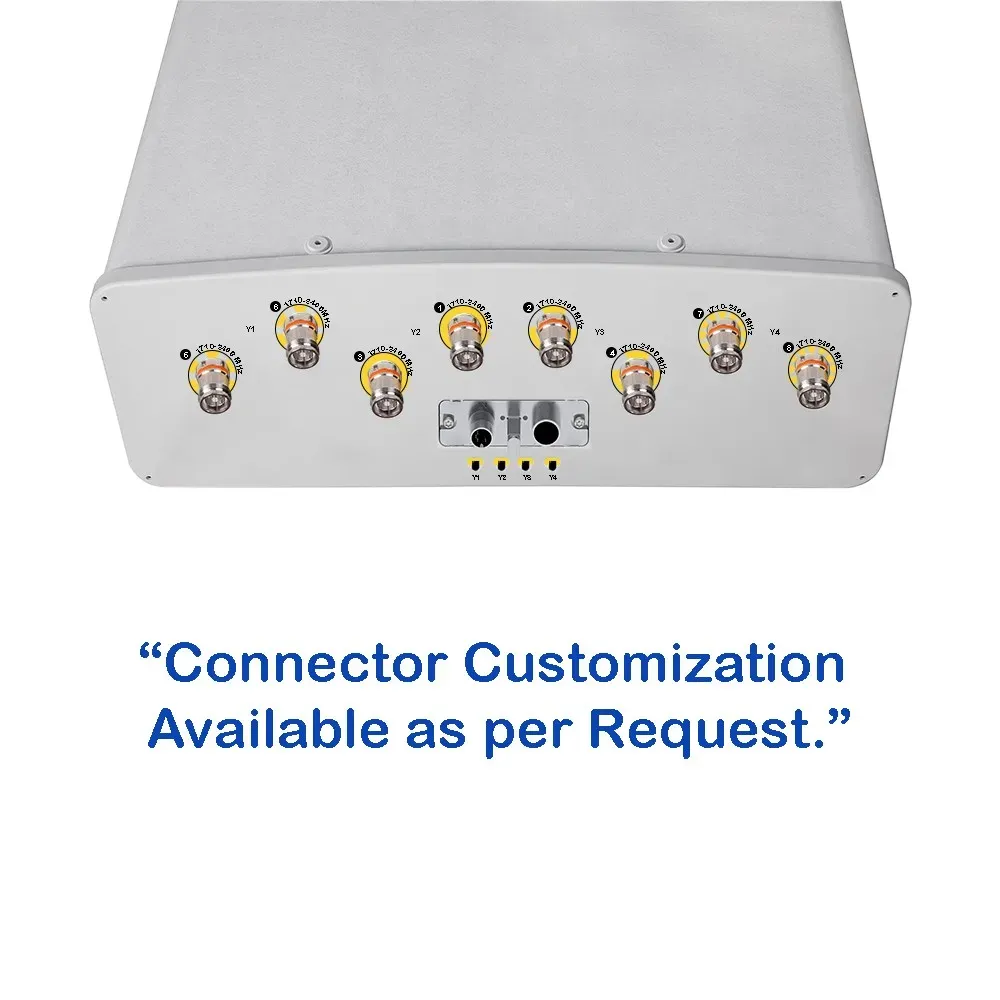

Connector Type		—	(8x) 4.3/10 Female
Connector Position		—	Bottom
Radome Material		—	UPVC
Antenna Dimensions (H x W x D)		mm (in)	997 x 350 x 178 (39.3 x 13.8 x 7.0)
Antenna Weight	Antenna Only	kg (lbs)	12 (26.5)
Antenna Weight	with Clamps	kg (lbs)	16 (35.3)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	320 (71.9)
at 150 km/h	Rear	N (lbf)	360 (80.9)
	Lateral	N (lbf)	220 (49.5)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)

Mounting Specifications
Mounting Brackets Are Included Unless	Otherwise Spe	cified
Brackets Attach to Pole Diameter	mm (in)	50-125 (2.0-4.9)
Mechanical Tilt Range	degree	0-16
