Product code: 8P-1710-2690F-21G-35H7V

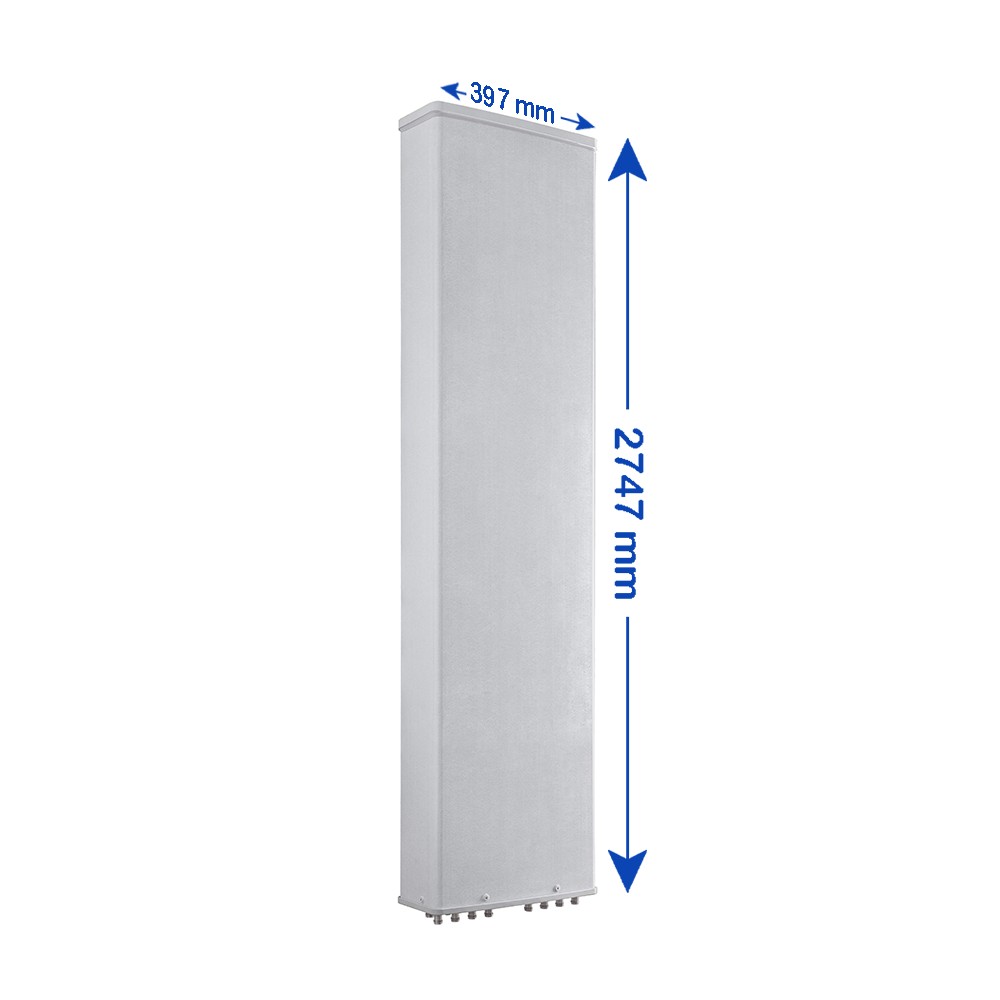

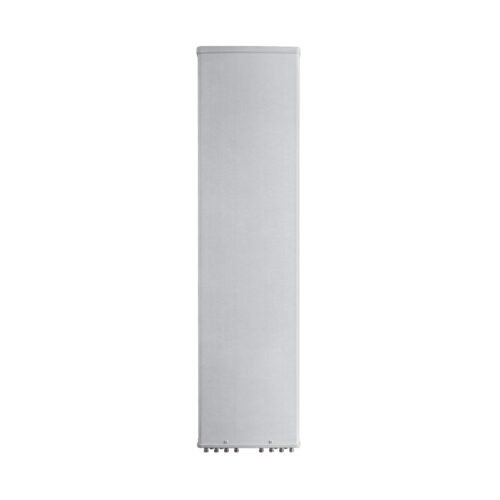

8-Port, Panel Split Beam Antenna, 35° HBW, (4x) 1710-2690 MHz, 21/21/21/21 dBi, 2-12°T, 2.747 m

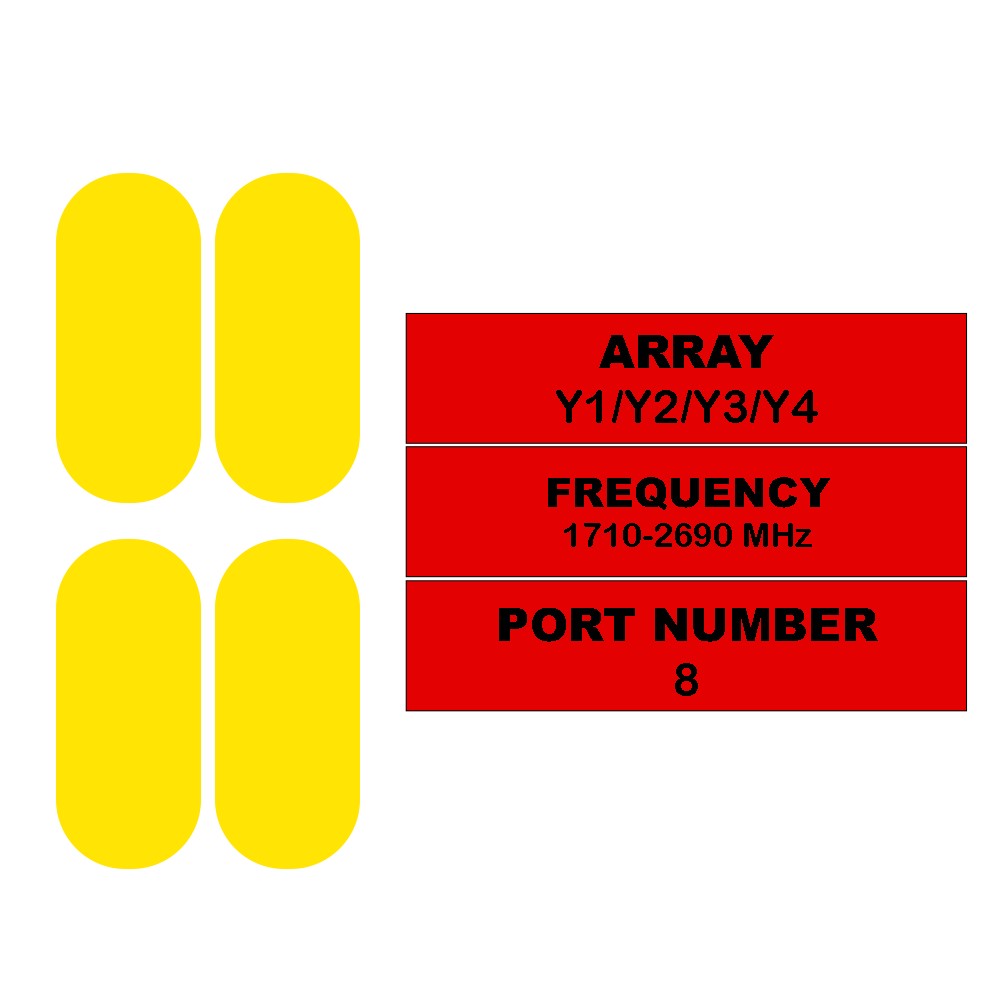

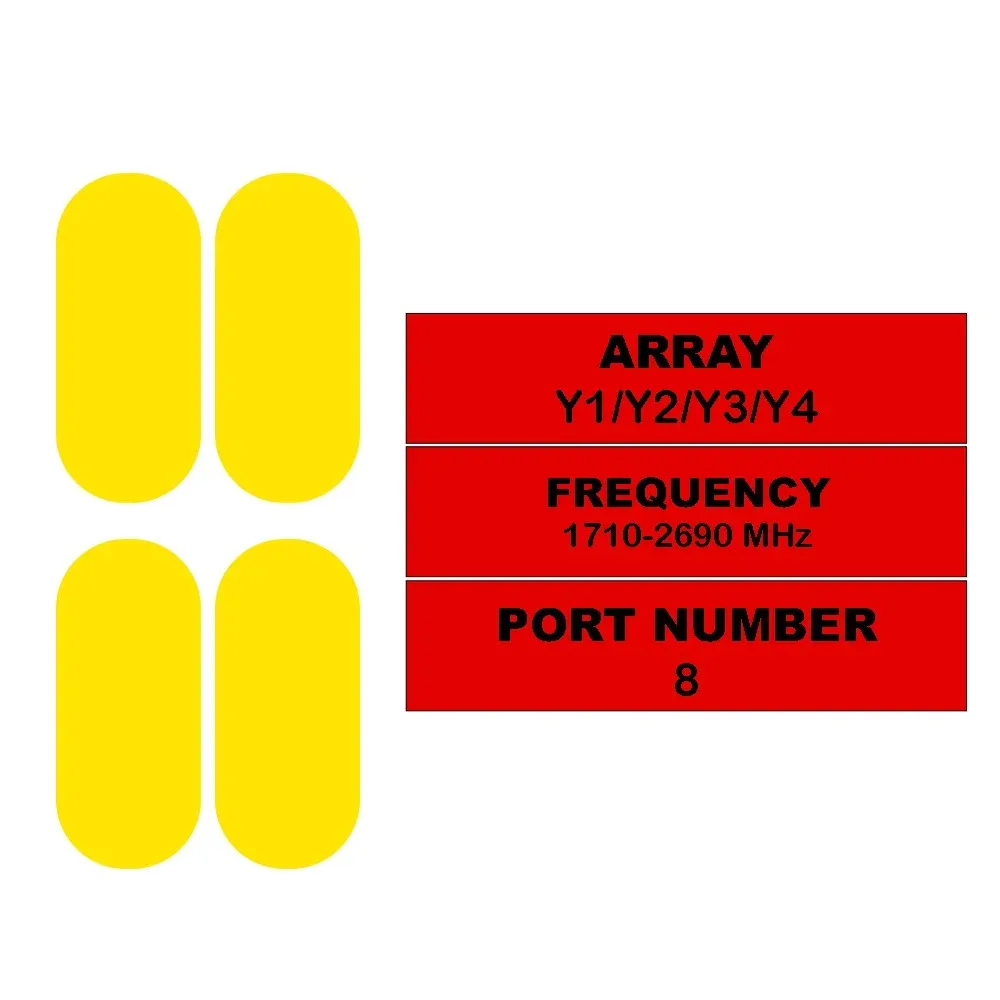

| 8-Port Antenna | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 35° | 35° | 35° | 35° |
| Gain | 21 dBi | 21 dBi | 21 dBi | 21 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° |

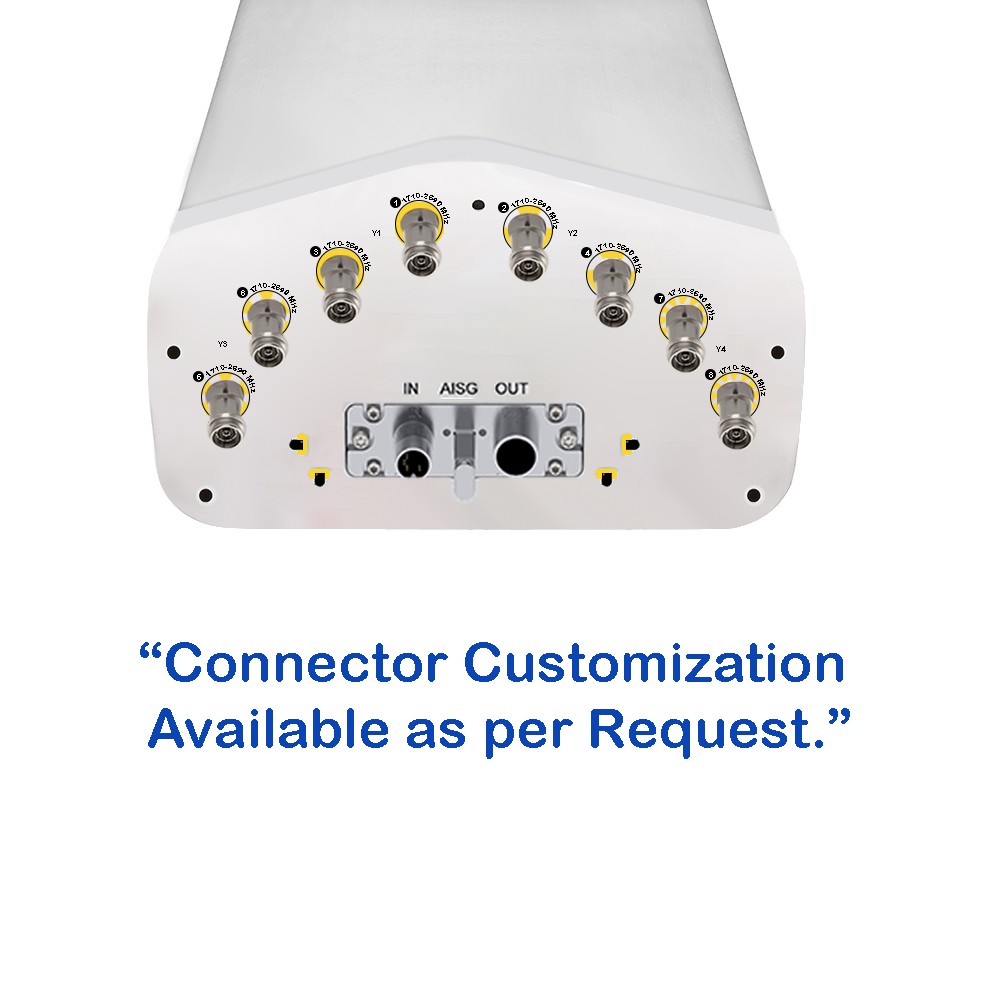

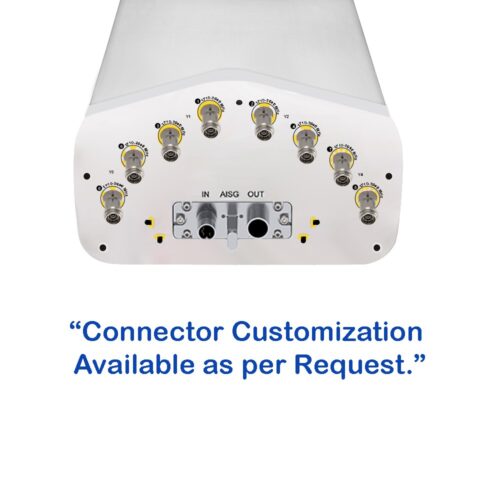

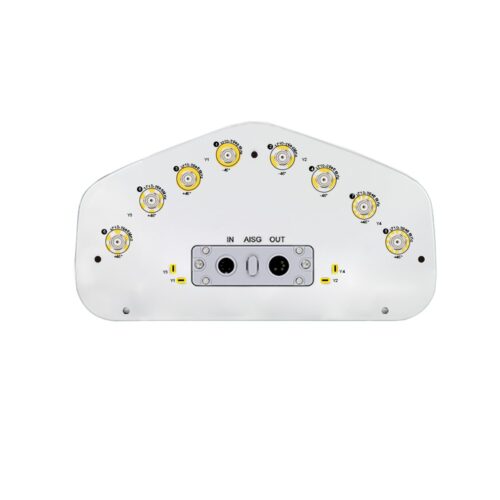

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
