Product code: 8P-698-2690F-19G-35H13V

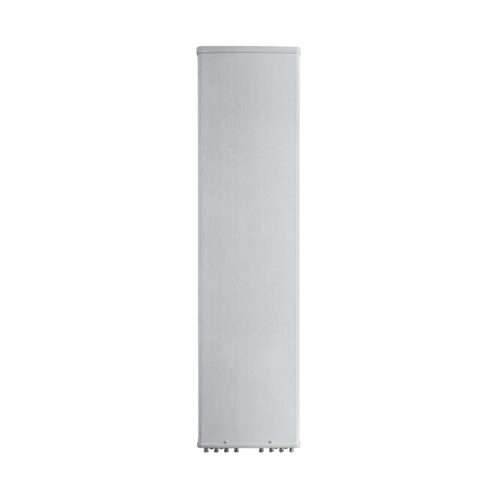

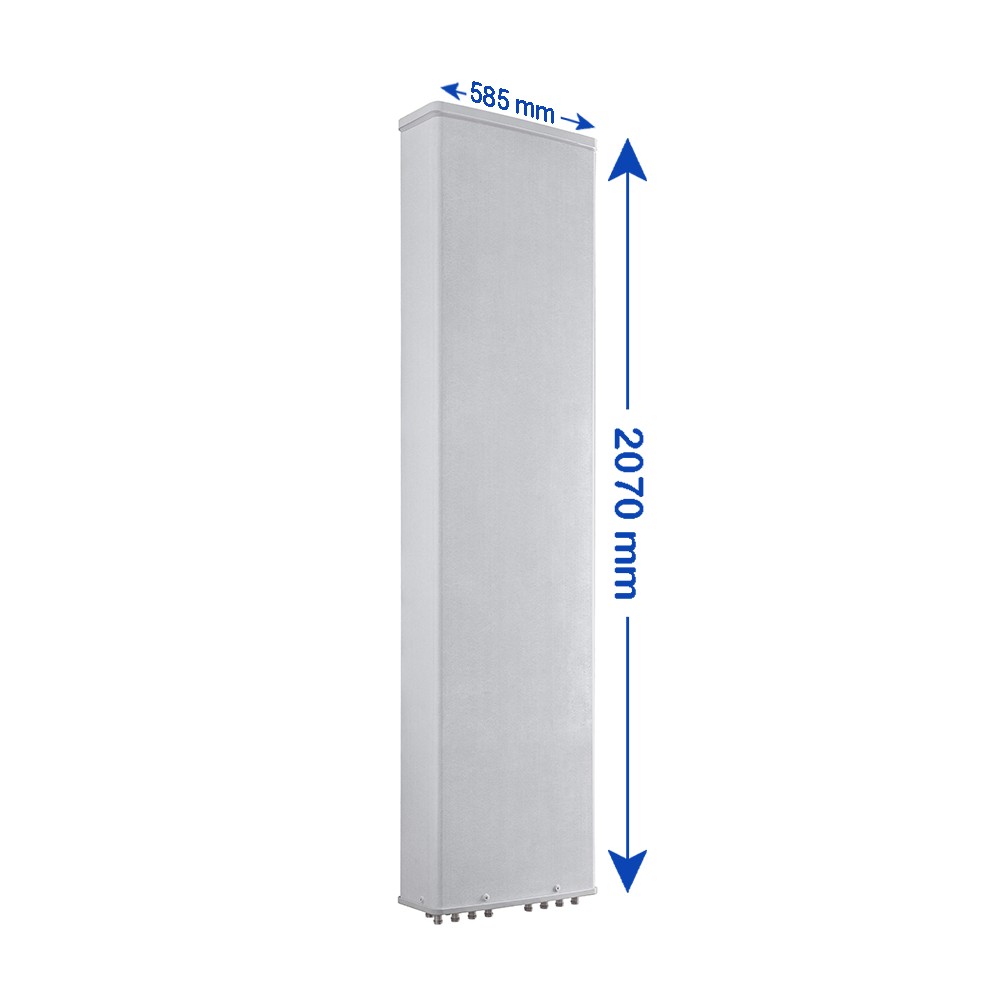

8-Port, Split-Beam Panel Antenna, 35°/35°/65°/65° HBW, (2x) 698-960/(2x) 1710-2690 MHz, 19.1/19.1/18.3/18.3 dBi, 2-12° T, 2.070 m

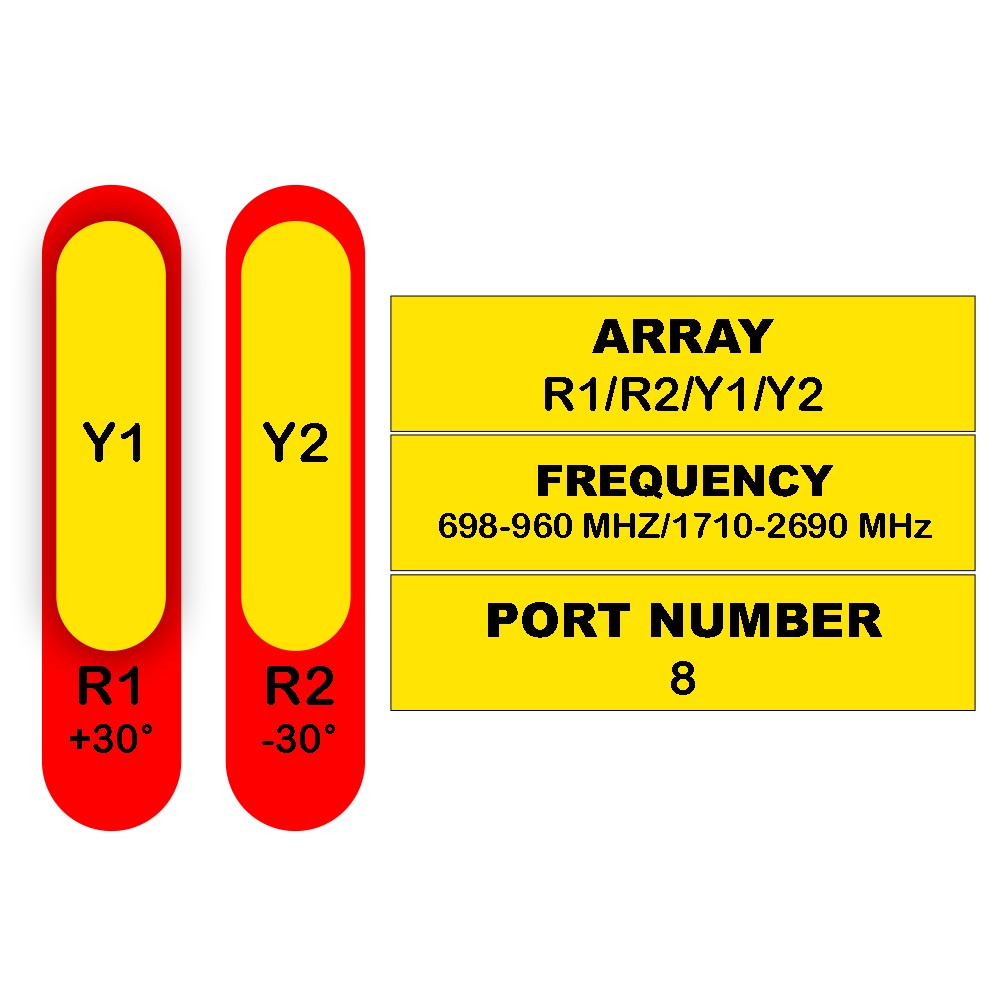

| 8-Port Antenna | R1 | R2 | Y1 | Y2 |
| Frequency Range (MHz) | 698-960 | 698-960 | 1710-2690 | 1710-2690 |
| HBW | 35° | 35° | 65° | 65° |
| Gain | 19.1 dBi | 19.1 dBi | 18.3 dBi | 18.3 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° |

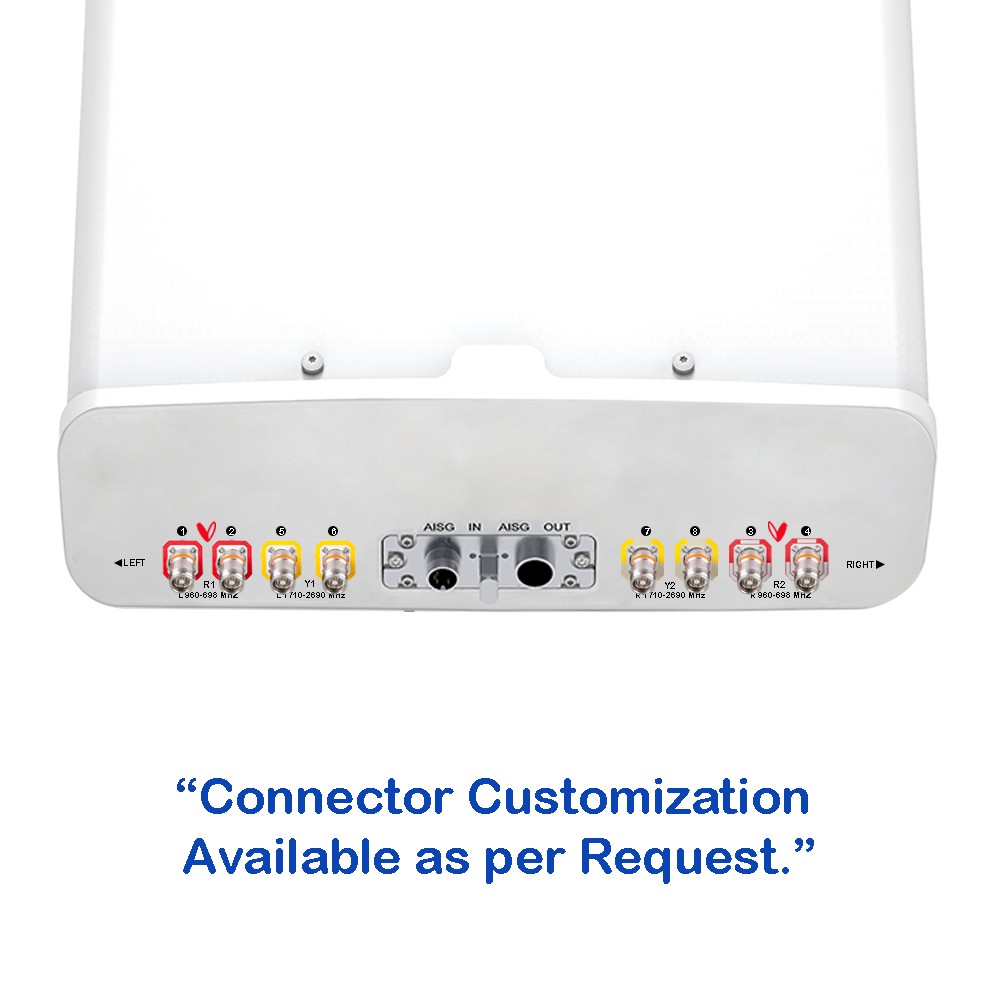

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
