Product code: 8P-1710-2690F-20G-65H4V

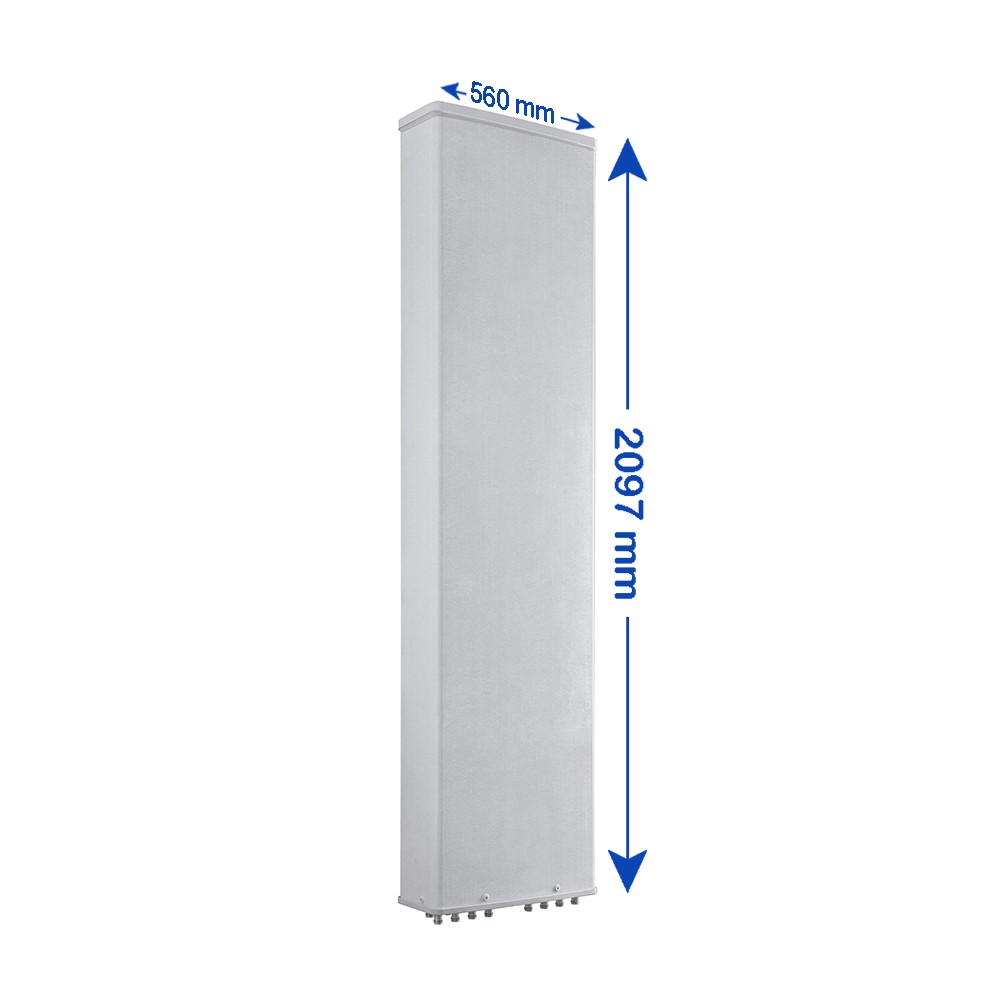

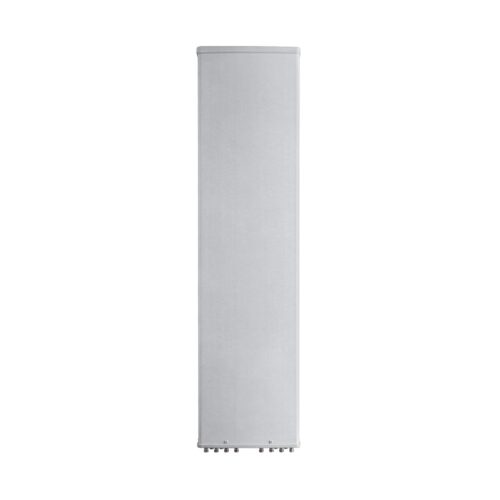

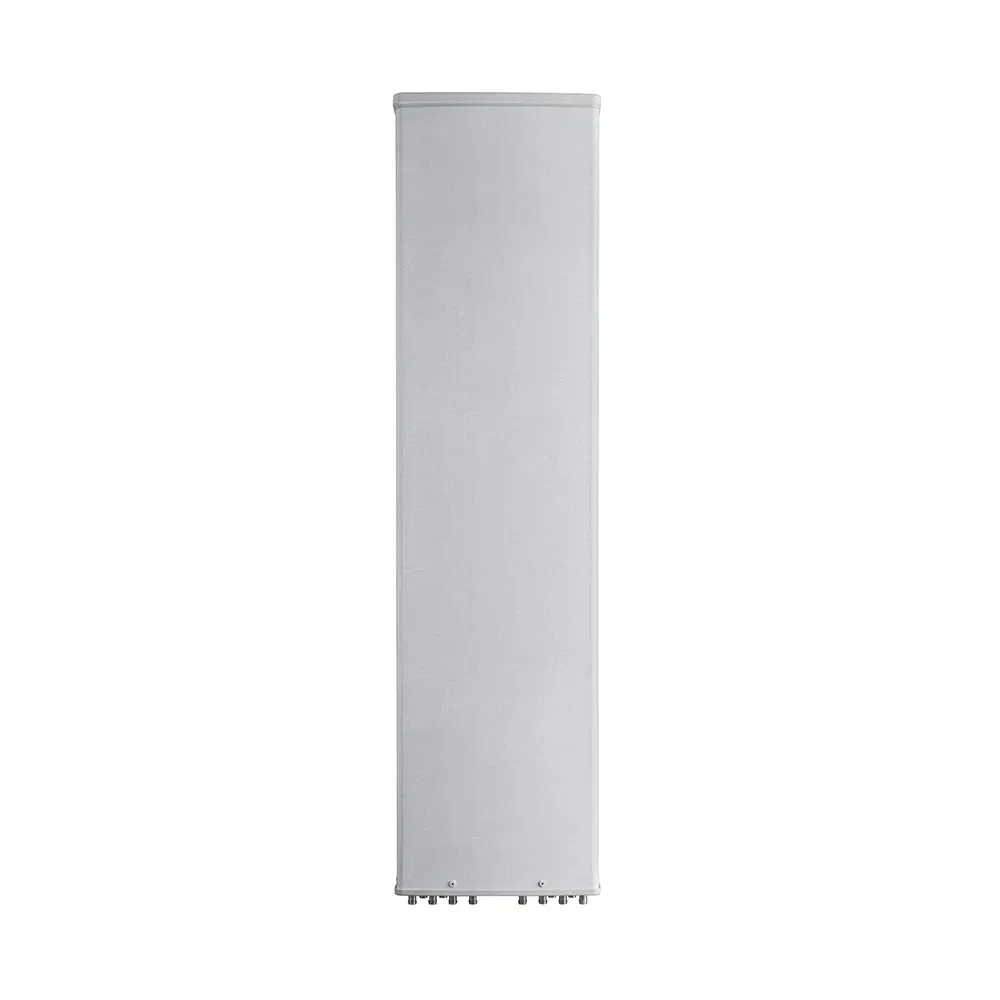

8-Port, Split-Beam Panel Antenna, 65°/65°/33°/33° HBW, (2x) 698-960/(2x) 1710-2690 MHz, 20/20/20/20 dBi, 2-12° T, 2.690 m

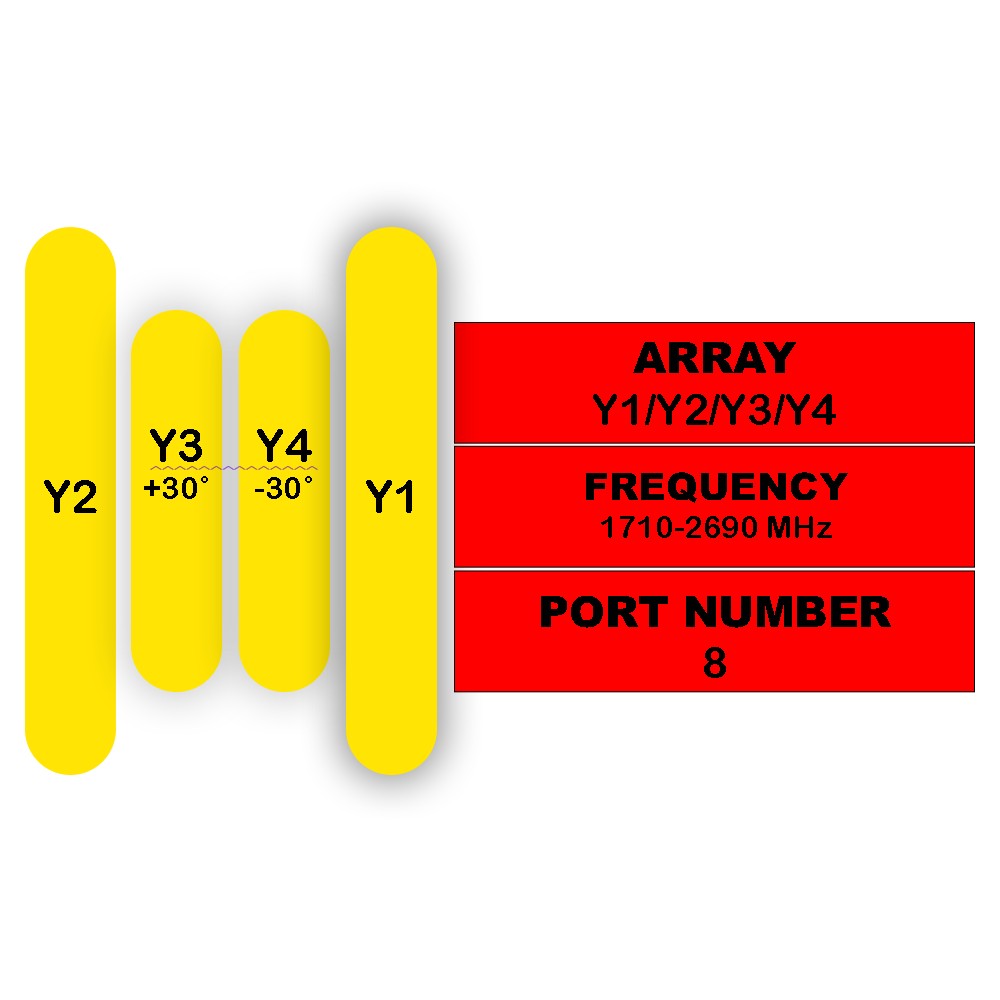

| 8-Port Antenna | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 65° | 33° | 33° |
| Gain | 20 dBi | 20 dBi | 20 dBi | 20 dBi |
| Tilt | 2-10° | 2-10° | 2-10° | 2-10° |

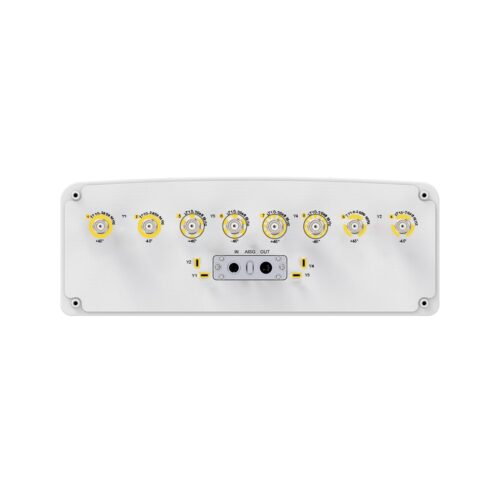

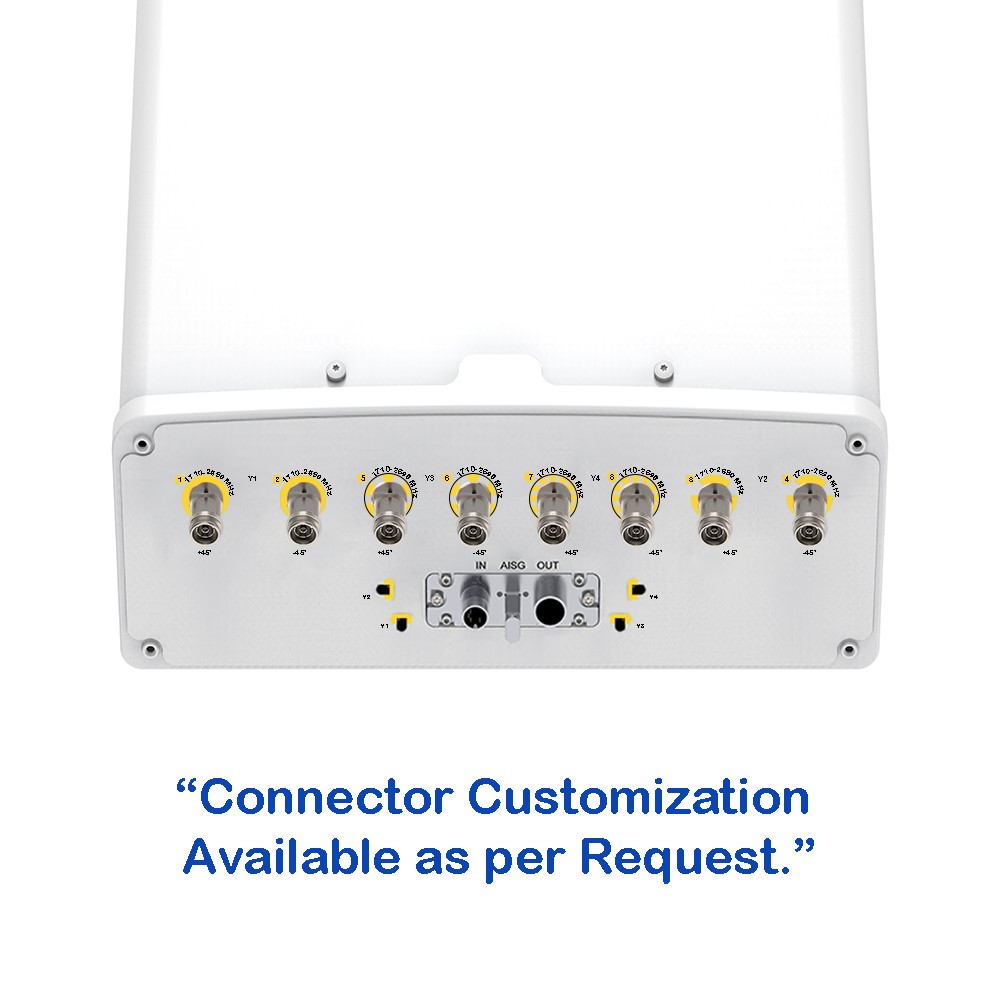

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
