Product code: 8P-698-2690F-17G-65H10V

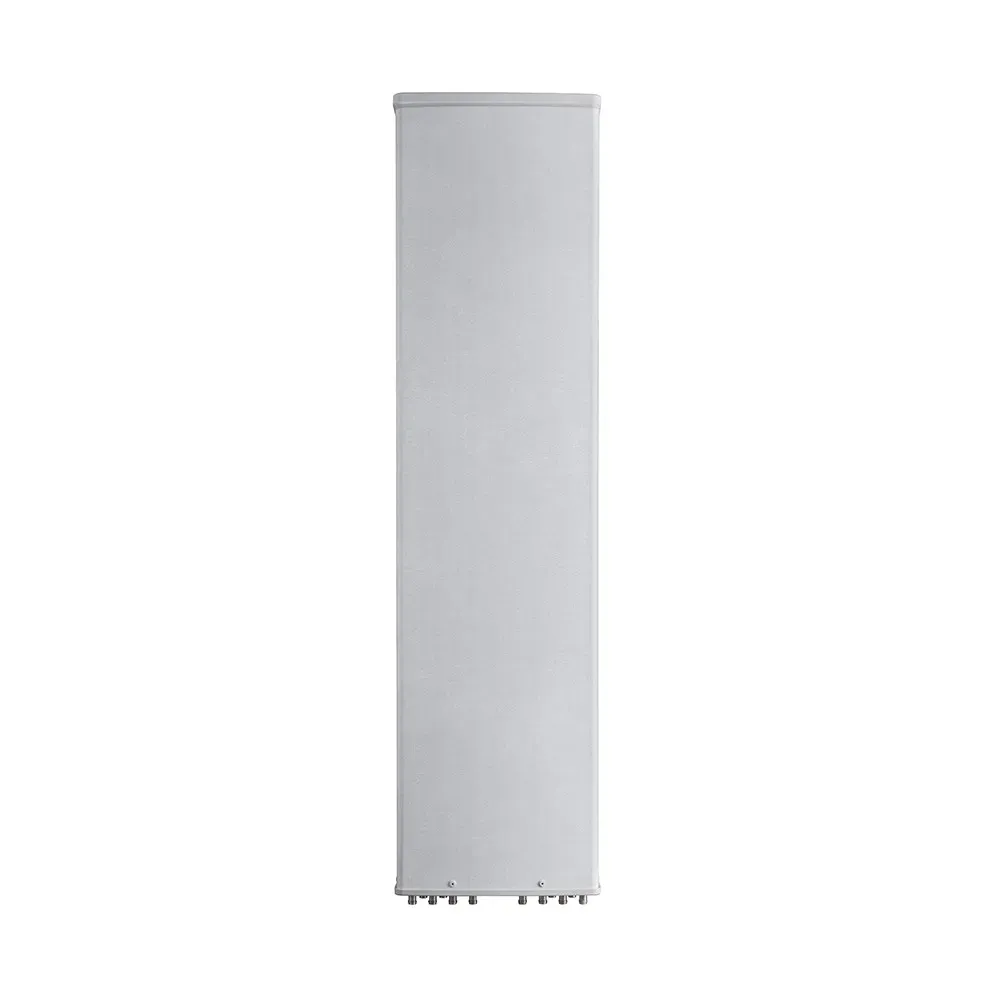

8-Port, Split-Beam Panel Antenna, 65°/65°/33°/33° HBW, 698-960/(3x) 1710-2690 MHz, 17/18/19/19 dBi, 2-12° T, 2.697 m

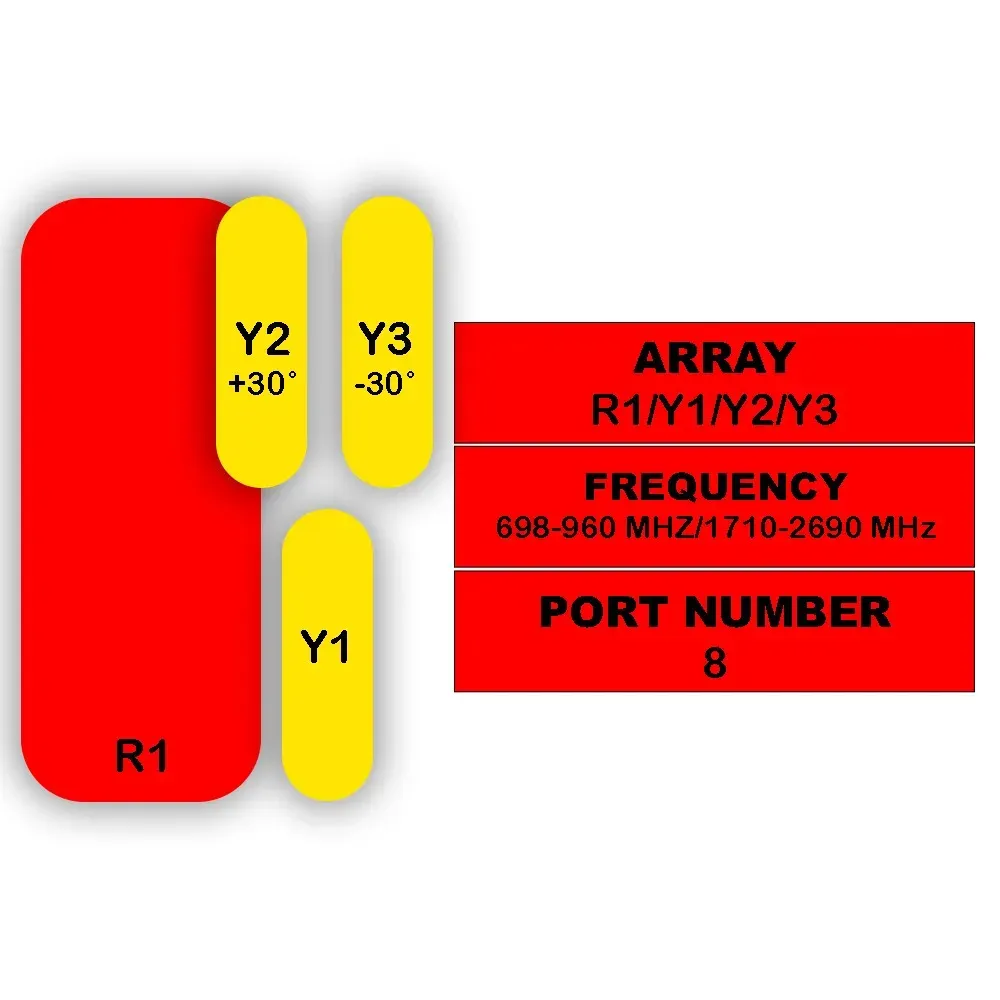

| 8-Port Antenna | R1 | Y1 | Y2 | Y3 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 65° | 33° | 33° |
| Gain | 17 dBi | 18 dBi | 19 dBi | 19 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° |

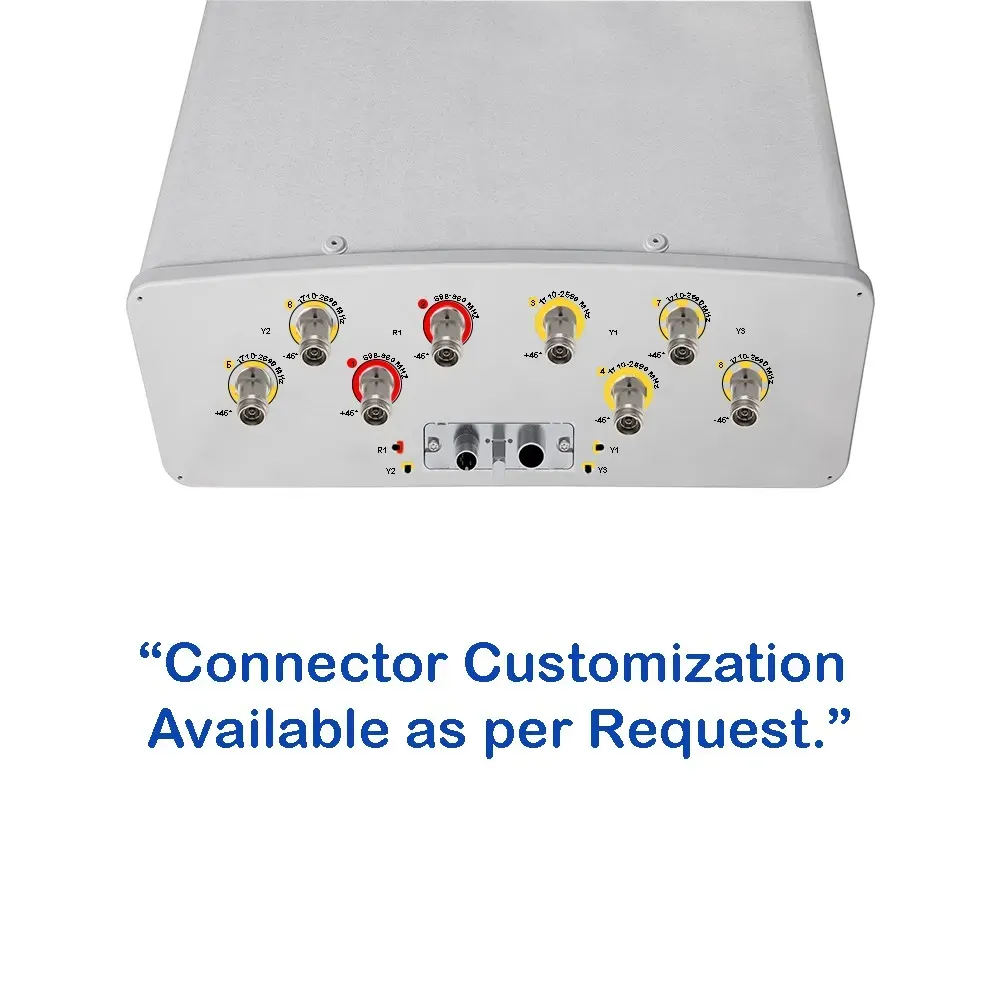

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
Product Part Number
8P-698-2690F-17G-65H10V
Electrical & Mechanical Specification
| Electrical Specifications | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | Y1 | Y2/Y3 | |||||||||||
| Frequency Range | MHz | 698-960 | 1710-2690 | 1710-2690 | |||||||||
| MHz | |||||||||||||
| 698-806 | 790-894 | 880-960 | 1710-1880 | 1920-2170 | 2300-2400 | 2500-2690 | 1710-1880 | 1920-2170 | 2300-2400 | 2500-2690 | |||
| Polarization | — | ±45° | ±45° | ±45° | |||||||||
| Gain | at Mid Tilt | dBi | 15.5 | 16 | 16.3 | 16.6 | 17.3 | 17.7 | 17.6 | 17.1 | 17.6 | 18.1 | 18 |
| Over All Tilts | dBi | 15.4 ± 0.5 | 15.9 ± 0.5 | 16.2 ± 0.5 | 16.5 ± 0.5 | 17.2 ± 0.5 | 17.6 ± 0.5 | 17.5 ± 0.6 | 17.0 ± 0.6 | 17.5 ± 0.6 | 18.0 ± 0.6 | 17.9 ± 0.6 | |
| Horizontal Beamwidth | degree | 69 ± 6 | 66 ± 6 | 62 ± 6 | 65 ± 5 | 65 ± 5 | 67 ± 5 | 67 ± 5 | 35 ± 3 | 31 ± 3 | 29 ± 3 | 26 ± 3 | |
| Vertical Beamwidth | degree | 9.8 ± 1.0 | 8.5 ± 1.0 | 8.0 ± 1.0 | 7.5 ± 0.8 | 6.7 ± 0.7 | 5.7 ± 0.6 | 5.5 ± 0.5 | 13.0 ± 1.3 | 11.5 ± 1.2 | 10.0 ± 1.0 | 9.0 ± 1.0 | |
| Electrical Downtilt, Continuously Adjustable | degree | 2-Dec | 2-Dec | 2-Dec | |||||||||
| First Upper Side Lobe Suppression | dB | > 15 | > 15 | > 15 | ≥ 15 | ≥ 15 | ≥ 15 | ≥ 15 | ≥ 15 | ≥ 15 | ≥ 15 | ≥ 15 | |
| Front-To-Back Ratio Co-Pol, ±30° | dB | > 23 | > 24 | > 25 | ≥ 28 | ≥ 28 | ≥ 28 | ≥ 28 | > 23 | > 24 | > 25 | > 25 | |
| Cross Polar | at Boresight | dB | > 15 | > 15 | > 15 | > 20 | > 20 | > 20 | > 20 | > 15 | > 15 | > 15 | > 15 |
| Discrimination | Over Sector | dB | > 7 | > 7 | > 7 | > 10 | > 10 | > 9 | > 8 | — | — | — | — |
| Isolation | Intraband | dB | ≥ 25 | ≥ 25 | ≥ 25 | ||||||||
| Beam-To-Beam | dB | — | — | ≥ 15 | |||||||||
| Interband | dB | ≥ 25 | ≥ 25 | ≥ 25 | |||||||||
| Impedance | Ohm | 50 | 50 | 50 | |||||||||
| VSWR | — | < 1.5 | < 1.5 | < 1.5 | |||||||||
| Return Loss | dB | > 14 | > 14 | > 14 | |||||||||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | < -150 | |||||||||
| Lightning Protection | — | DC Ground | DC Ground | DC Ground | |||||||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | 200 | |||||||||
| Integrated RET Specifications | |||||||||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | ||||||||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | ||||||||||||
| Power | Standby | < 2 W | |||||||||||
| Consumption | In Motion | < 10 W | |||||||||||
| Connectors | 2 x 8 Pin Circle Connector | ||||||||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | |||||||||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | |||||||||||||
| Hardware Interfaces | RS485 and Power | ||||||||||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | ||||||||||||
| Adjustment Cycles | > 20,000 | ||||||||||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | ||||||||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | ||||||||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 | |||||||||||||
| Remote Control | Can manage from OMC, BTS/Node B | ||||||||||||
| Daisy Chaining Method | Ready for daisy-chaining | ||||||||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | ||||||||||||
| Housing Material / Color | Aluminum / Grey | ||||||||||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | ||||||||||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | ||||||||||||
| Humidity | Up to 95% | ||||||||||||
| IP Rating | IP65 | ||||||||||||
| Weight | ≤ 500 g | ||||||||||||
| Mechanical Specifications | |||||||||||||

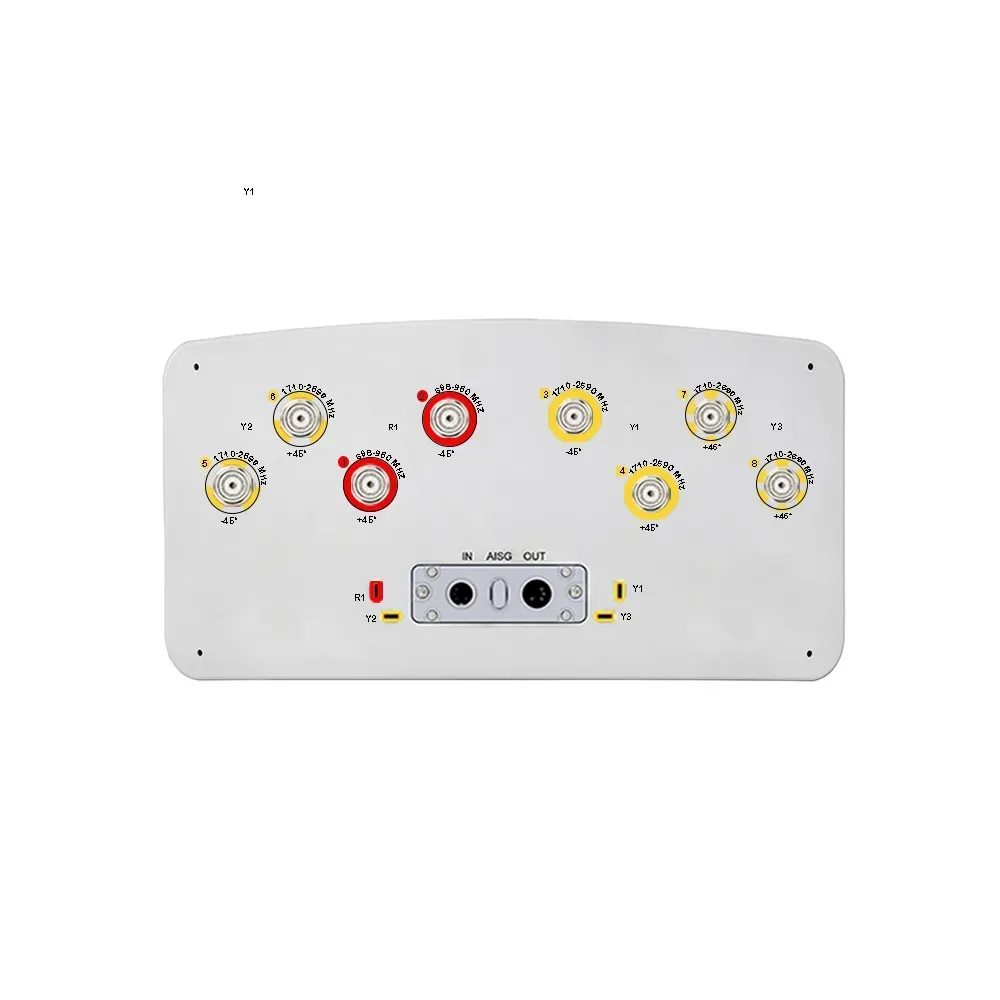

| Connector Type | — | (8x) 4.3/10 Female | |||||||||||
| Connector Position | — | Bottom | |||||||||||
| Radome Material | — | UPVC | |||||||||||

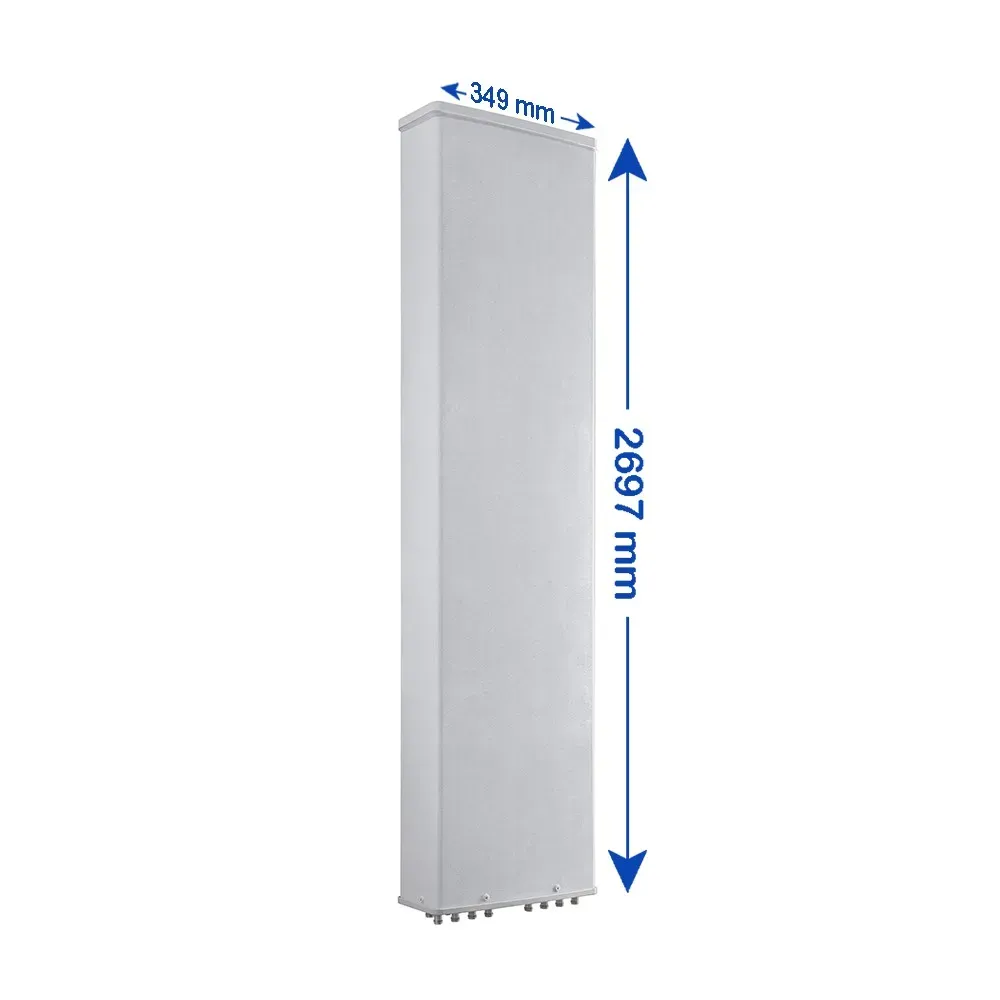

| Antenna Dimensions (H x W x D) | mm (in) | 2697 x 349 x 177 (106.2 x 13.7 x 7.0) | |||||||||||
| Antenna Weight | Antenna Only | kg (lbs) | 30.5 (67.2) | ||||||||||
| with Clamps | kg (lbs) | 34.5 (76.1) | |||||||||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | |||||||||||
| Wind Load | Frontal | N (lbf) | 865 (194.5) | ||||||||||
| at 150 km/h | Rear | N (lbf) | 970 (218.1) | ||||||||||
| Lateral | N (lbf) | 600 (134.9) | |||||||||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to 140) | |||||||||||
