Product code: MT-6-18GHz

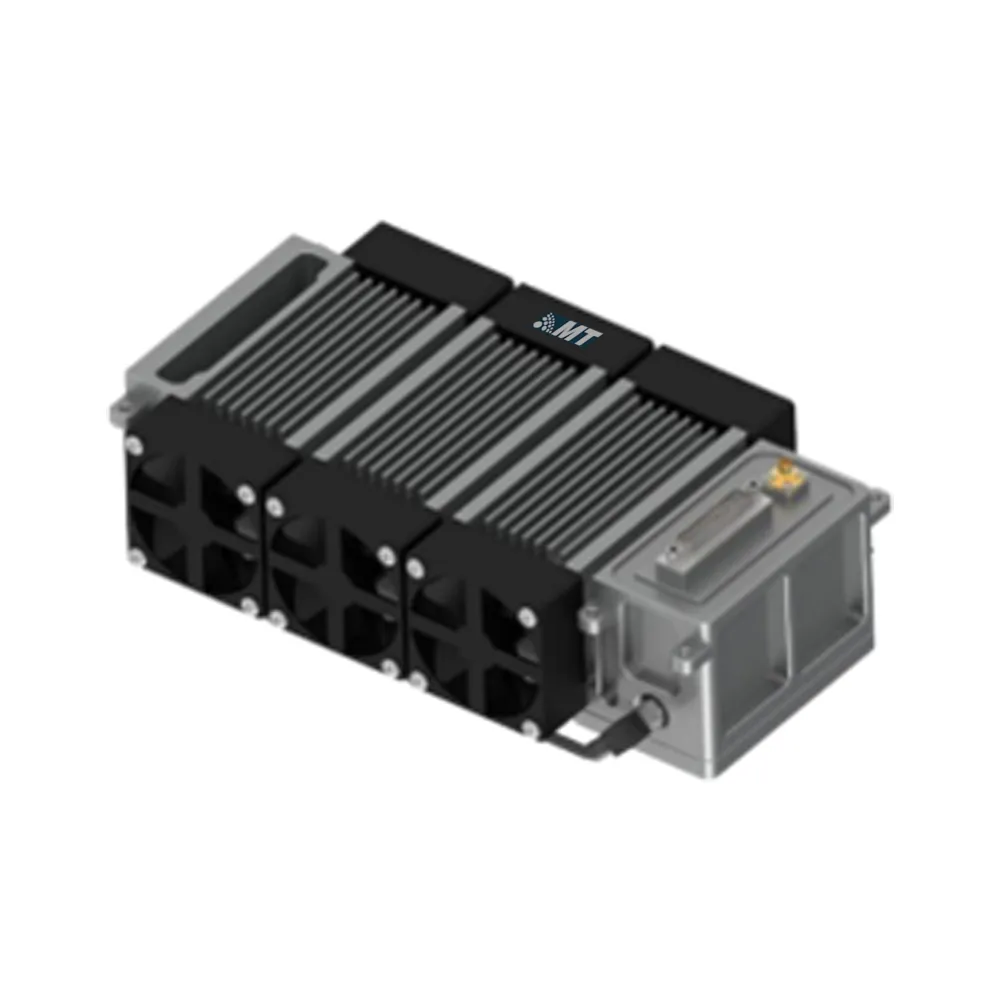

6~18GHz 50W Band Power Amplifier
| Model-MT-6-18GHz |
| Power monitoring function |
| Temperature alarm and protection function |
| Power supply modulation function |
| Operating Temperature:-40℃~+65℃ |
| Storage Temperature:-50℃~+85℃ |
Product Part Number
MT-6-18GHz
Electrical & Mechanical Specification
| Performance Specifications | |
|---|---|
| Parameter | Specifications |
| Frequency | 6~18GHz |
| Saturation Output Power | 50W |
| Power Gain | 43dB |
| Power Gain Flatness | ≤±3dB |
| Input VSWR | ≤1.3:1 |
| Output VSWR | ≤2:1 |
| Second Harmonic | ≤-25dBc |
| Third-Order Intermodulation | ≤-25dBc |
| Operating Voltage | 28V |
| Interface Definition | |
| Parameter | Specifications |
| Size | 350mm*240mm*120mm |
| RF Input | SMA-K |
| RF Output | SMA-K |
| Power Supply Port | DB-15 |
| Cooling | Forced air cooling |
