Product code: MT-8221M03-NF

824 to 960MHz and 1710 to 2170MHz 2.5dbi / 3.5dBi Five Band Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-8221M03-NF

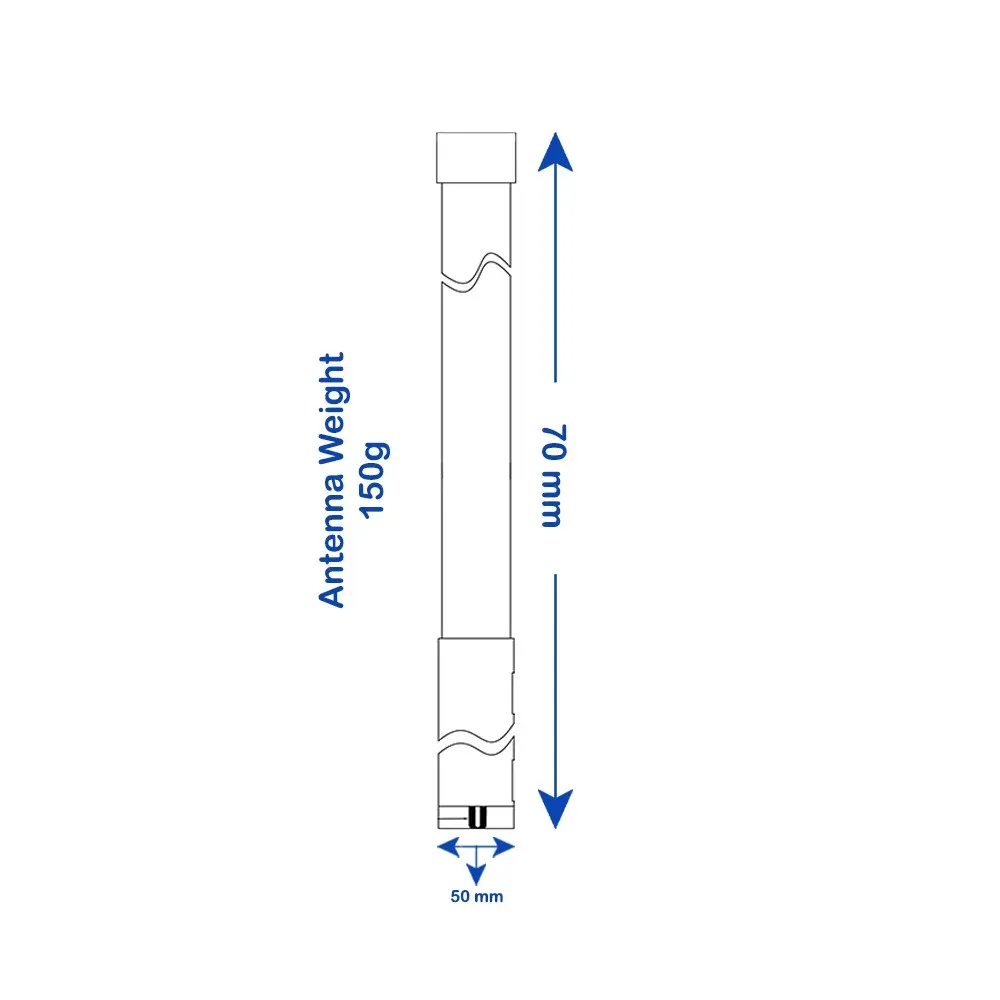

Dimension 298x70x50mm
Weight 150g
Connector N-Female
Beam-width Horz.360 deg
824MHz to 960MHz : Vert.70 deg
1710MHz to 2170MHz : Vert.47 deg



WhatsApp Chat
Skype
Product Part Number
MT-8221M03-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range824 to 960MHz
1710 to 2170MHz
V.S.W.R (MAX) 2.0 :1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)2.5 dbi/ 3.5 dBi
PolarizationVertical
Maximum Power150 Watts
Vertical Beam-width824 to 960MHz: 70 Deg
1710 to 2170MHz: 47 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna Design1/4 Wavelength Dipole
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length (MAX)298mm
Diameter (MAX)70mm
Antenna Weight (G.W)150 g
Accessories (G.W)35 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium

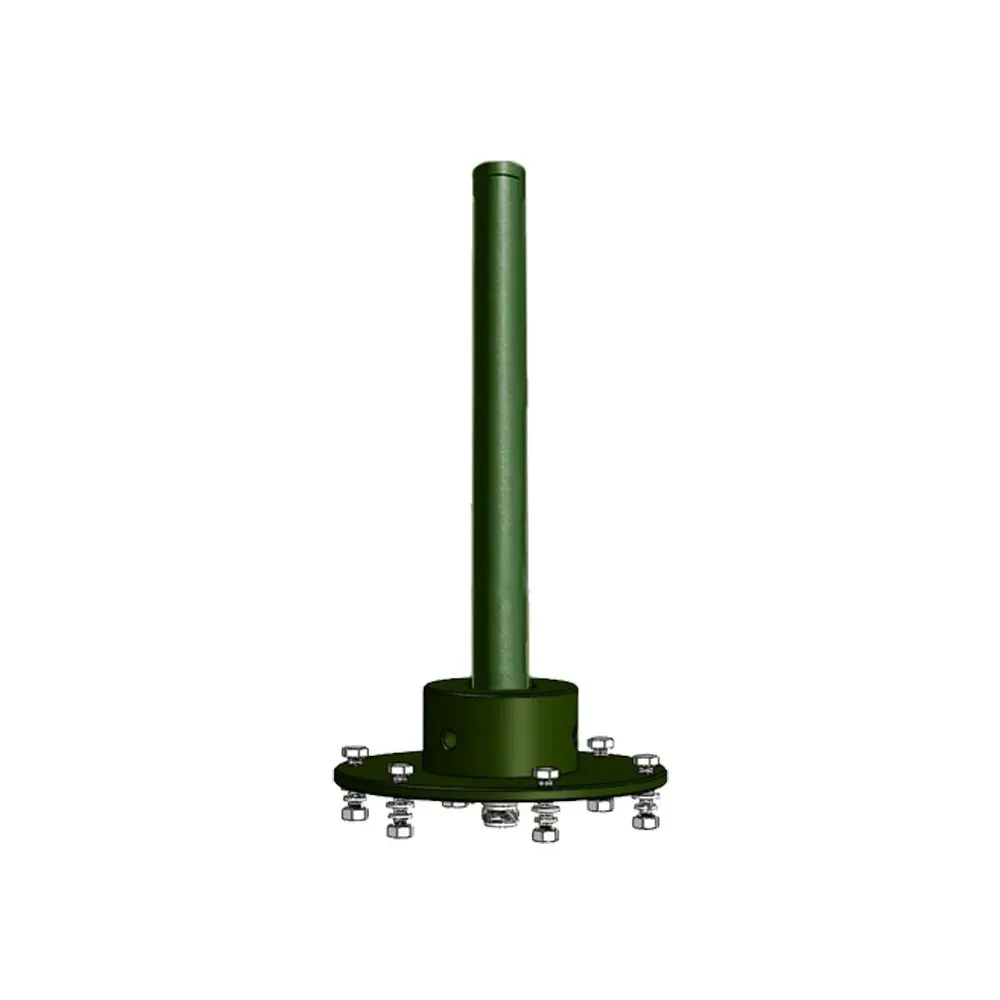

Mount StylePole Mount / Well Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherRoHS
