Product code: MT-8221M03-NM

824 to 960MHz and 1710 to 2170MHz 3dBi Multi-Frequency Super Mini Omni Directional Outdoor Antenna (N-Male)

Product Overview
Part Number MT-8221M03-NM

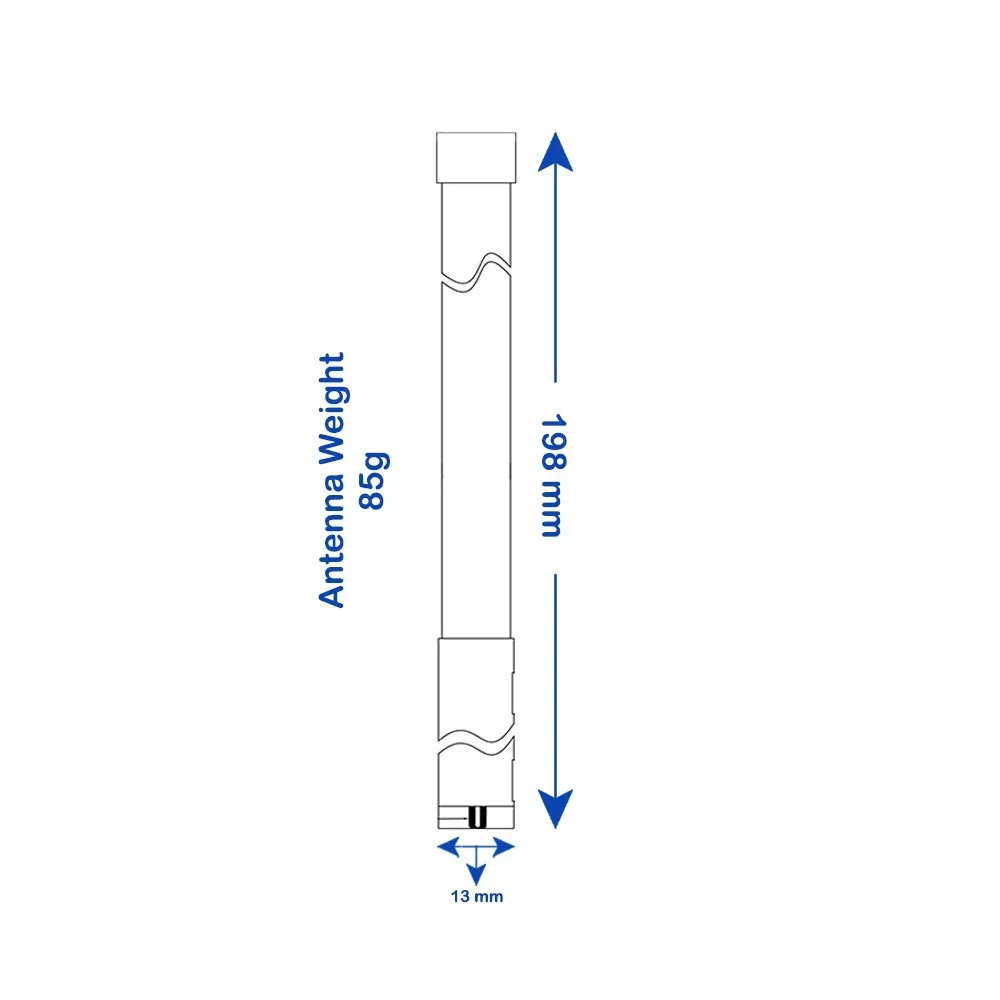

Dimension 198x13mm
Weight 85g
Connector N-Male
Beam-width Horz.360Deg 824MHz to 960MHz: Vert.41Deg, 1710MHz to 2170MHz: Vert.60Deg



WhatsApp Chat
Skype
Product Part Number
MT-8221M03-NM
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range824 to 960MHz
1710 to 2170MHz
V.S.W.R (Avg) 2.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (Avg)3 dBi
PolarizationVertical
Maximum Power5 Watts
Vertical Beam-width824-960MHz: 41 Deg
1710-2170Mhz: 60Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole
Internal MaterialPCB (FR4)
ConnectorN-Male
Mechanical
Length (MAX)198mm
Diameter (MAX)13mm
Antenna Weight (G.W)85 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Base MaterialCopper with nickel-plated
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature  -20 to +60
Operating Humidity  10%~80% non-condensing
Storage Humidity  5%~80% non-condensing
Safety, Emission and other  RoHS
