Product code: MT-8289M03-NF

824MHz to 896MHz 3dBi Vertical Omni Outdoor Antenna (868 MHz antenna) N-Female

Product Overview
Part Number MT-8289M03-NF
Gain 3 dBi

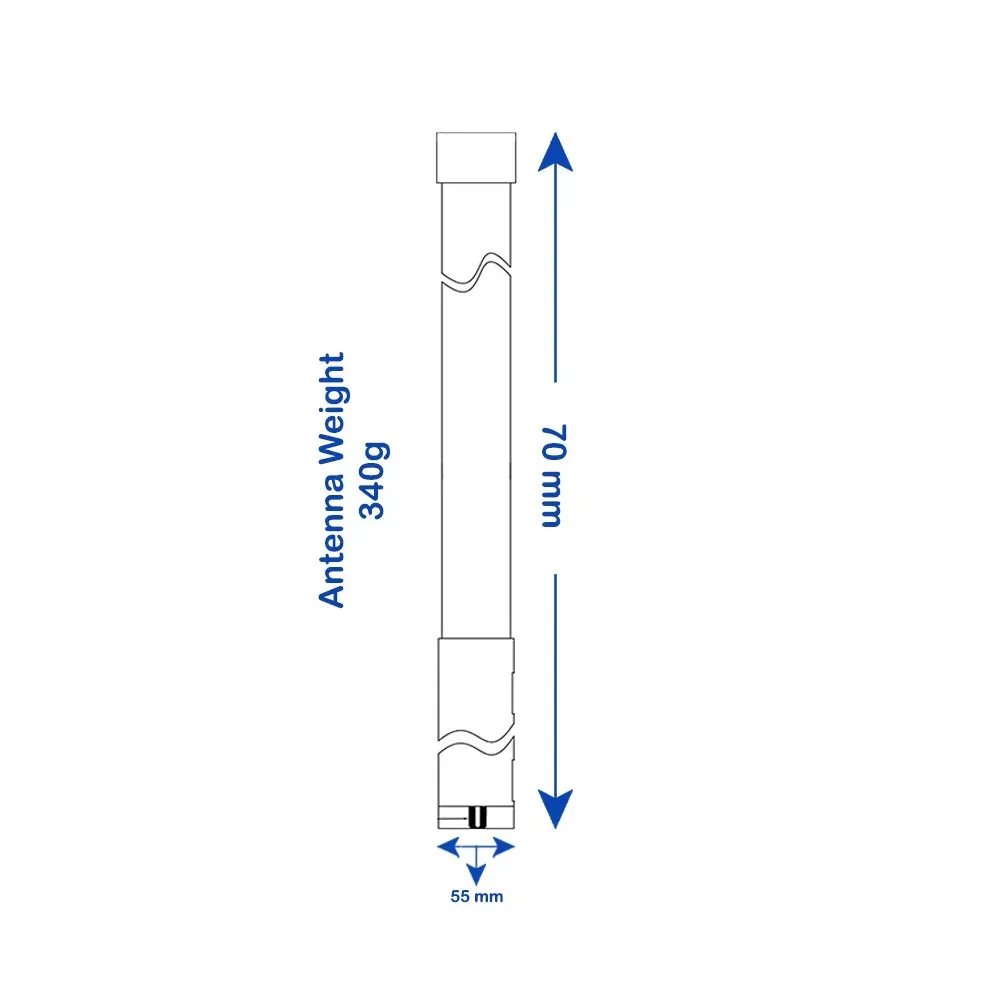

Dimension 20x70x55mm
Weight 340g
Connector N-Female
Beam-width Horz.360 deg Vert.73 deg





WhatsApp Chat
Skype
Product Part Number
MT-8289M03-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range824 to 896MHz
V.S.W.R (Avg)1.3:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (Avg)3 dBi
PolarizationVertical
Maximum Power120 Watts
Vertical Beam-width73 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length (MAX)320 mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)340 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminum
Mount StylePole Mount / Well Mount
Pole Mounting32mm to 45mm
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherRoHS
