Product code: MT-8289M08-NF

824MHz to 896MHz 8.5dBi Vertical Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-8289M08-NF
Gain 8.5 dBi
Dimension 1420x70x55mm
Weight 1400g
Connector N-Female
Beam-width Horz.360 deg Vert.12 deg



WhatsApp Chat
Skype
Product Part Number
MT-8289M08-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range824 to 896MHz
V.S.W.R (MAX)1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)8.5 dBi
PolarizationVertical
Maximum Power200 Watts
Vertical Beam-width12 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array Dipole
Internal MaterialCopper
ConnectorN-Female

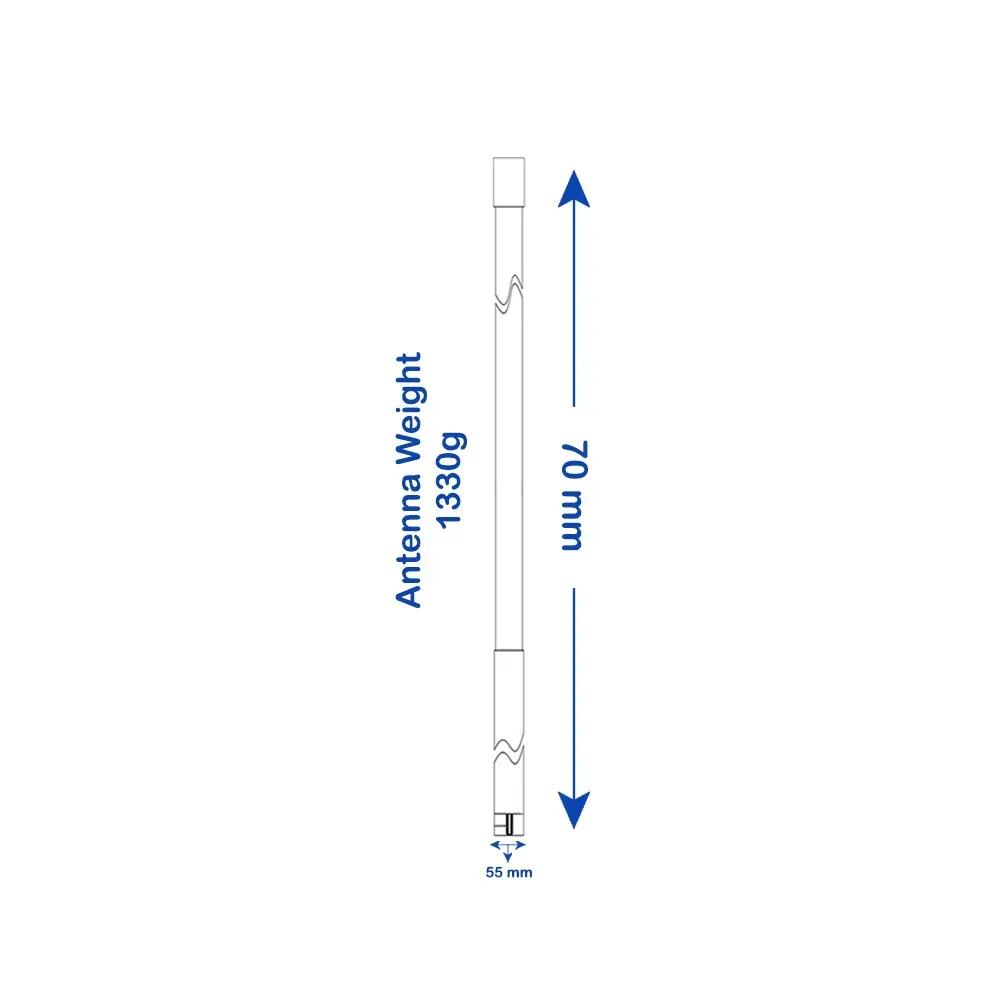

Mechanical
Length (MAX)1420 mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)1330 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Well Mount
Pole Mounting32mm to 45mm
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
