Product code: MT-DTA148
850-870MHz Cavity Band Pass filter
- P/N：MT-DTA148
- Frequency:850-870MHz
- Stop Band Rejection：≥50dB
- Connectors：SMA-Female
Product Part Number
MT-DTA148
Electrical & Mechanical Specification
| S/N | Parameters | Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Frequency Range | 850 ~Â 870MHz | |||||||||
| 2 | Insertion Loss | ≤2.0dB | |||||||||
| 3 | Passband Ripple | ≤1.0dB | |||||||||
| 4 | Return Loss | ≥18dB | |||||||||
| 5 | Rejection | ≥50dB@DC ~ 840MHz @885 ~ 1000MHz | |||||||||
| 6 | Input Power | 20W | |||||||||
| Port Connectors | SMA-Female | ||||||||||
| 7 | Impedance | 50 Ω | |||||||||
| 8 | Operating Temperature | -20℃ ~ +60℃ | |||||||||
| 10 | Surface Finish | Black Paint | |||||||||

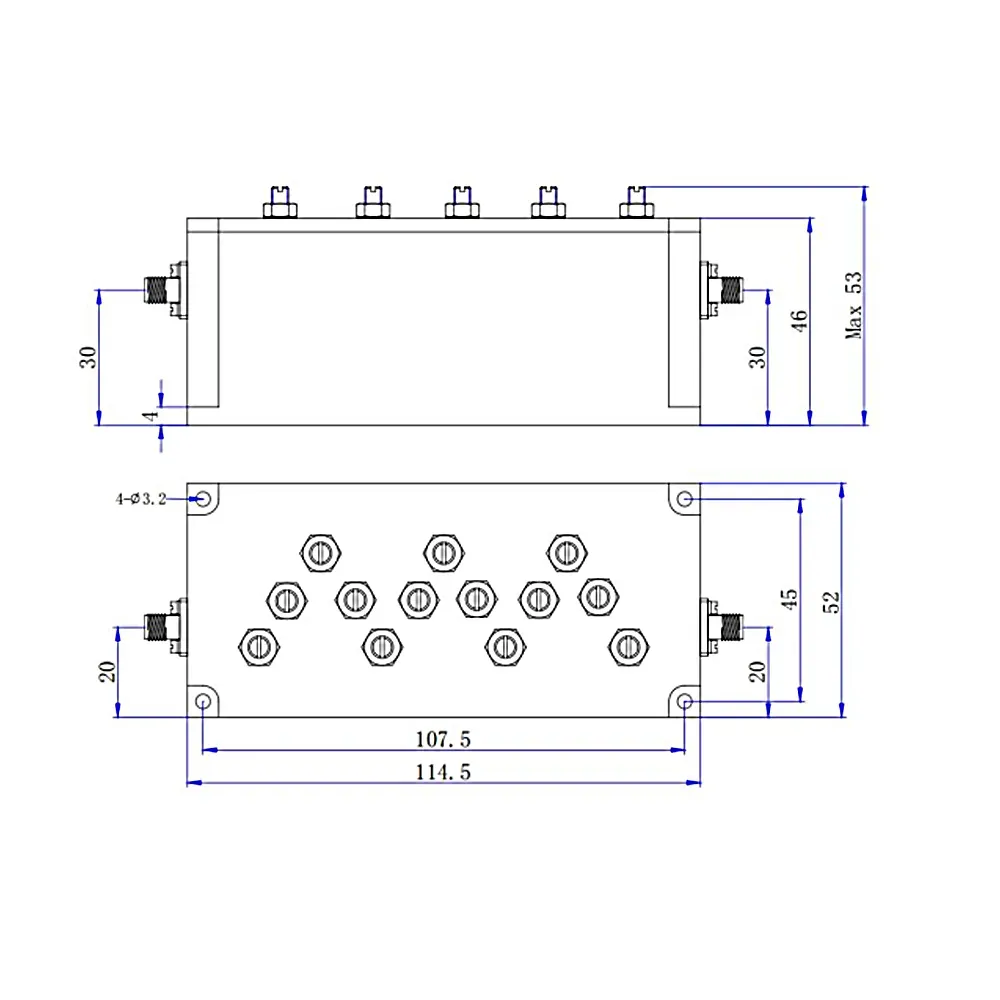

| 11 | Configuration | As Below (Dimensions:mm) |
