Product code: MT-DTA161

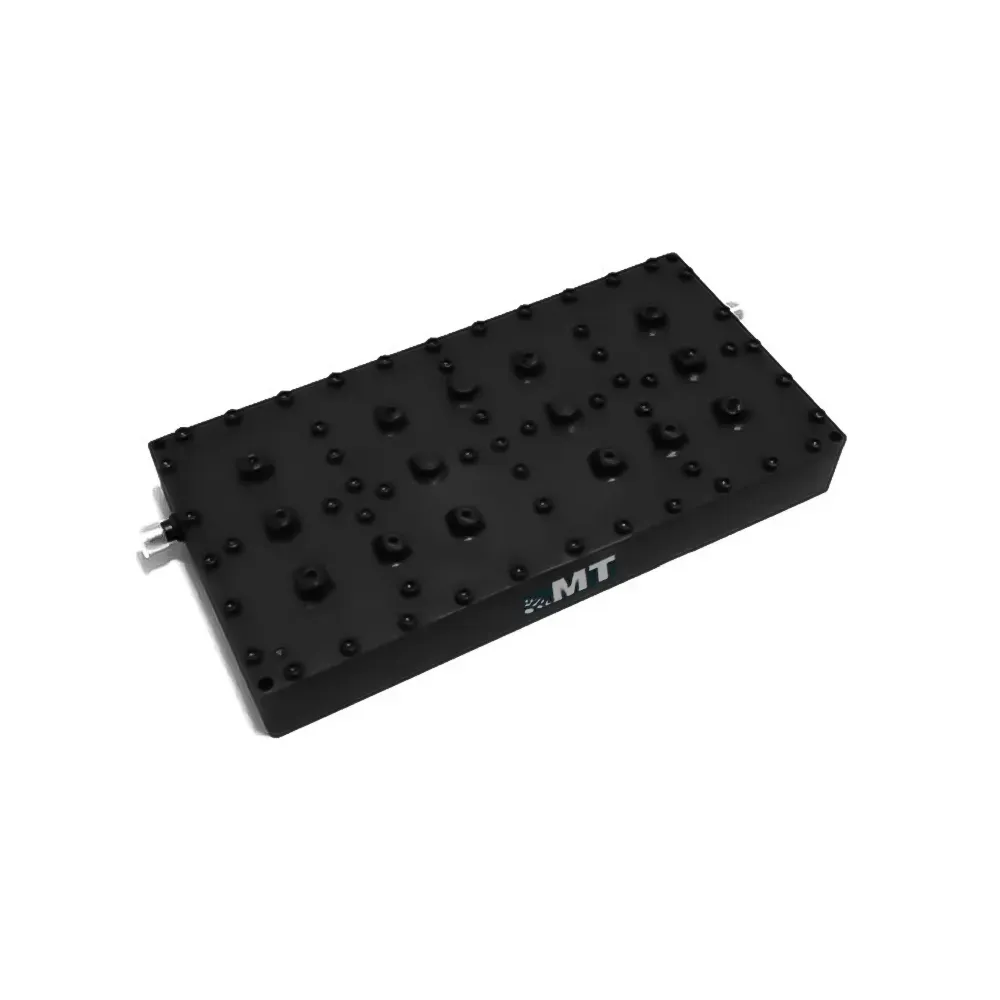

8550-8650MHz Cavity Band Pass Filter
- P/N: MT-DTA161
- Frequency:8550-8650MHz
- Stop Band Rejection：≥70dB
- Connectors：SMA-Female
Product Part Number
MT-DTA161
Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 8600MHz |
| 2 | Pass Band Frequency | 8550 ~ 8650MHz |
| 3 | Pass Band Insertion Loss | ≤2.5dB |
| 4 | Pass Band VSWR | ≤1.3:1 |
| 5 | Stop Band Attenuation | ≥70dB @ DC ~ 8450MHz @ 8750 ~ 12000MHz |
| 6 | Impedance | 50 Ohms |
| 7 | Power Handling | 10W Max. |
| 8 | Connectors | SMA-Female |
| 9 | Surface Finish | Painted Black |
| 10 | Material | Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel |
| 11 | Dimensions | 73*39*10mm |
| 12 | Net weight | TBD |
