Product code: MT-868M05C-NF

860 MHz to 870 MHz 5dBi Omnidirectional Outdoor Antenna Spring Designed (EU868) N-Female

Product Overview
Part Number MT-868M05C-NF

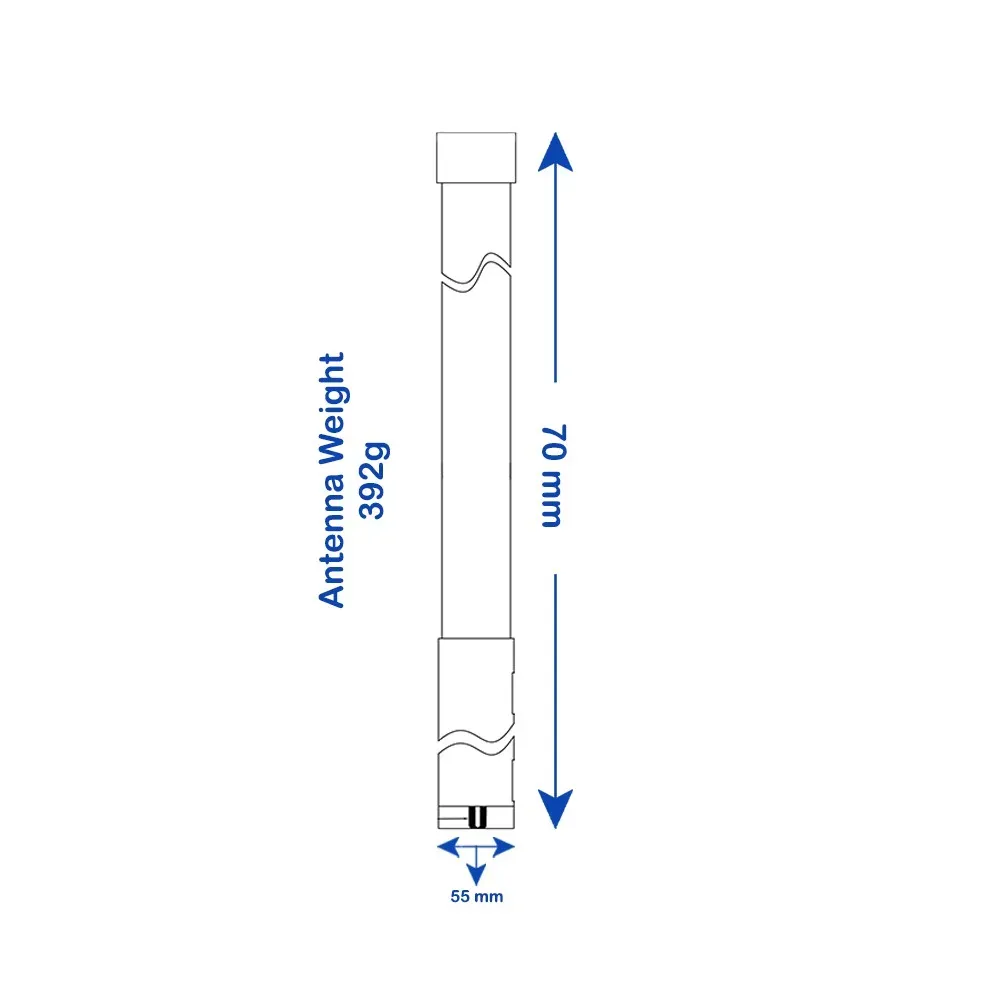

Dimension 745x70x55mm
Weight  392g
Connector N-Female
Beam-width Horz.360 deg Vert.26 deg



WhatsApp Chat
Skype
Product Part Number
MT-868M05C-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency860 to 870MHz
V.S.W. R≤ 2.0:1
Antenna TypeOmni
RadiationDirectional
Gain (MAX)5 dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beamwidth26 Deg
Horizontal Beamwidth360 Deg
Impedance50 Ohm
Antenna DesignDipole spring array
Internal MaterialCopper
ConnectorN-Female
Mechanical
Dimension745x70x55mm
Antenna Weight (N.W)392 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminum
Mount StylePole Mount / Wall Mount
MountingU type Stainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
