Product code: MT-868M12-NF

860MHz-870MHz 12dBi Omni Directional Outdoor Antenna (LoRa Antenna)

Product Overview
Part Number MT-868M12-NF

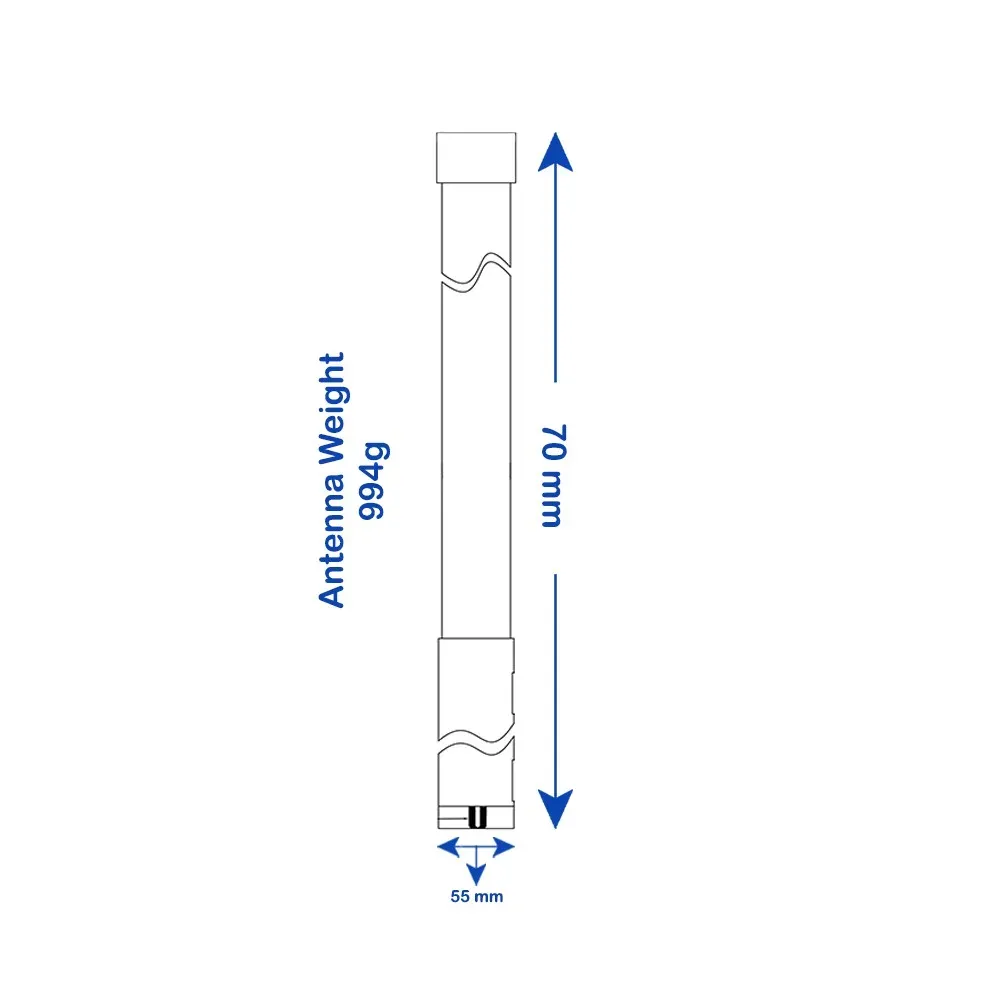

Dimension 2240x70x50mm
Weight 994g
Connector N-Female
Beam-width Horz.360 deg Vert.8 deg



WhatsApp Chat
Skype
Product Part Number
MT-868M12-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range860 to 870MHz
V.S.W.R (MAX)868MHz: 1.5 :1
860 and 870MHz: <2.0
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)12 dBi
PolarizationVertical
Maximum Power100 Watts
Vertical Beam-width8 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length2240+/-5 mm
Diameter70 x 50mm
Antenna Weight (N.W)994 g
Accessories (N.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and other RoHS
