Product code: MT-868M04-NF

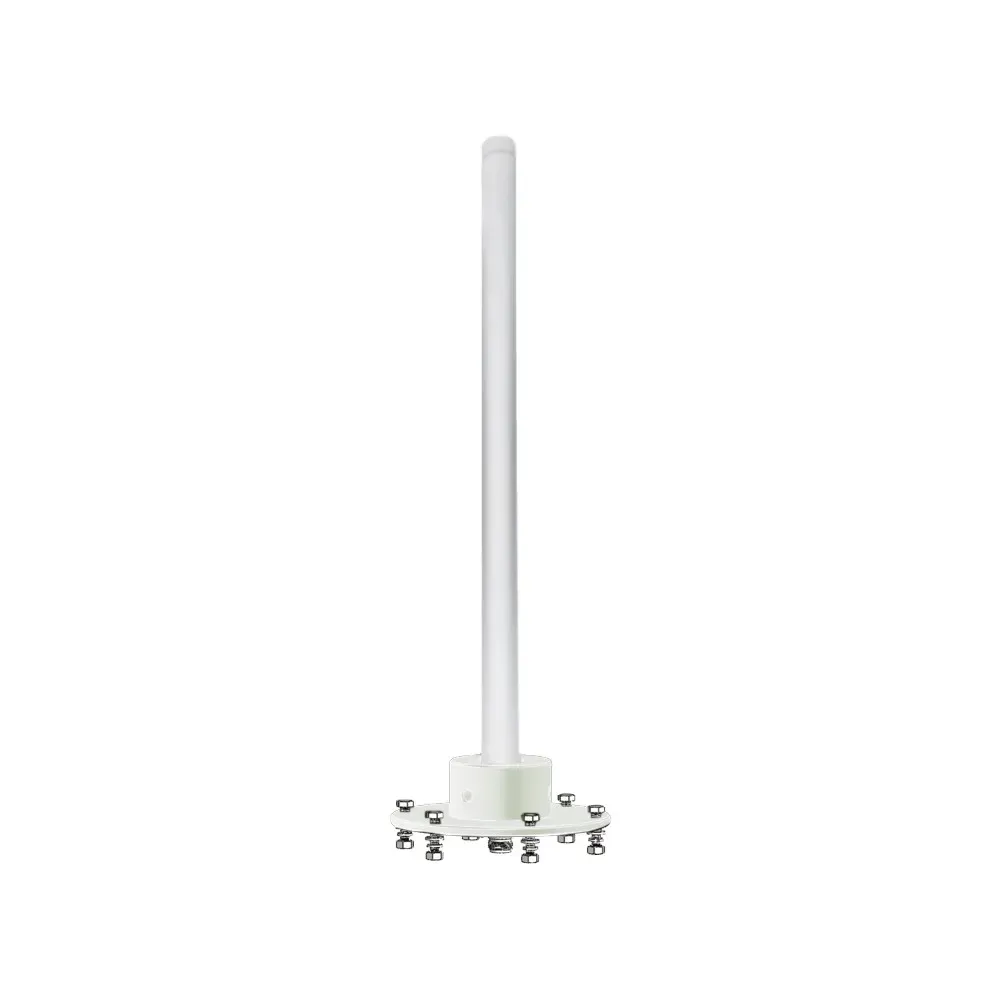

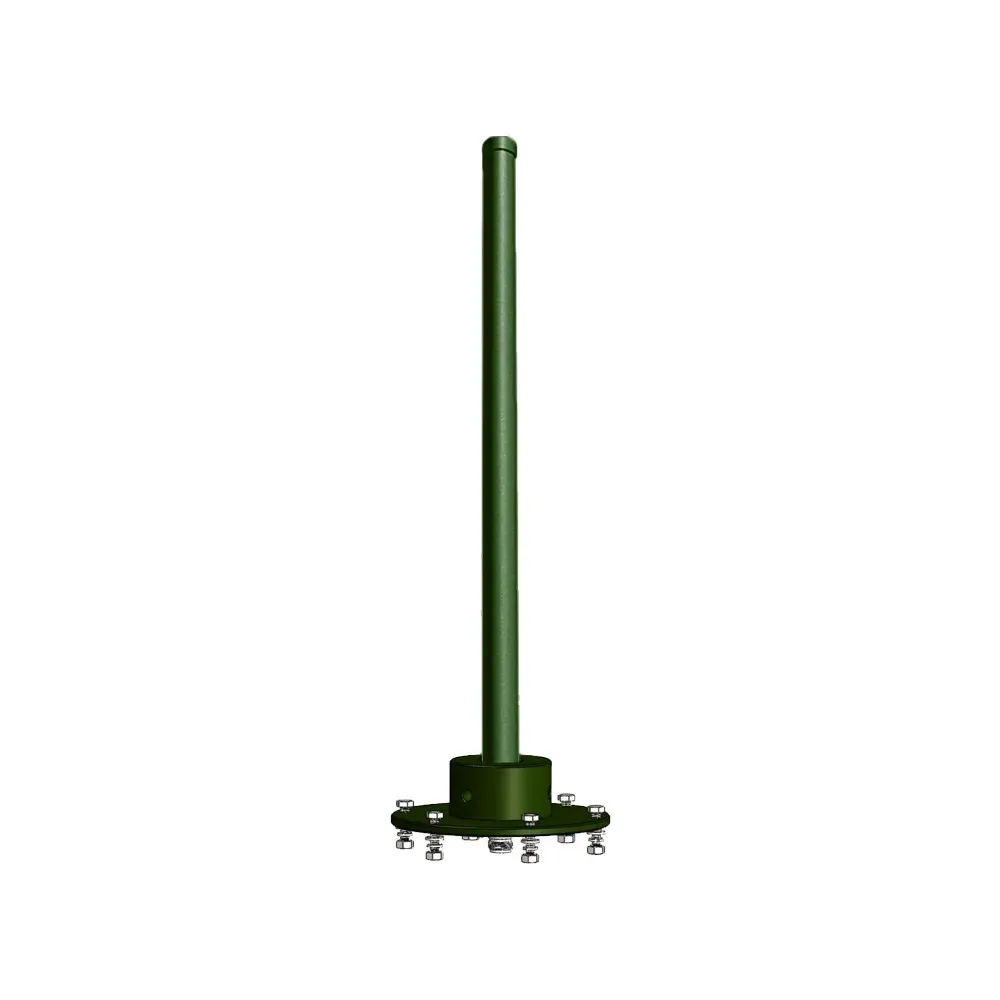

868 MHz to 870 MHz 4dBi Omni Directional Outdoor Antenna (EU868) N-Female

Product Overview
Part Number MT-868M04-NF
Dimension  670x70x55mm
Weight 513g
Connector N-Female
Beam-width Horz.360 deg Vert.27 deg



WhatsApp Chat
Skype
Product Part Number
MT-868M04-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range860 to 870MHz
V.S.W.R (MAX)868MHz: 1.5 :1
860 and 870MHz: <2.0
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)4 dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beam-width50 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female

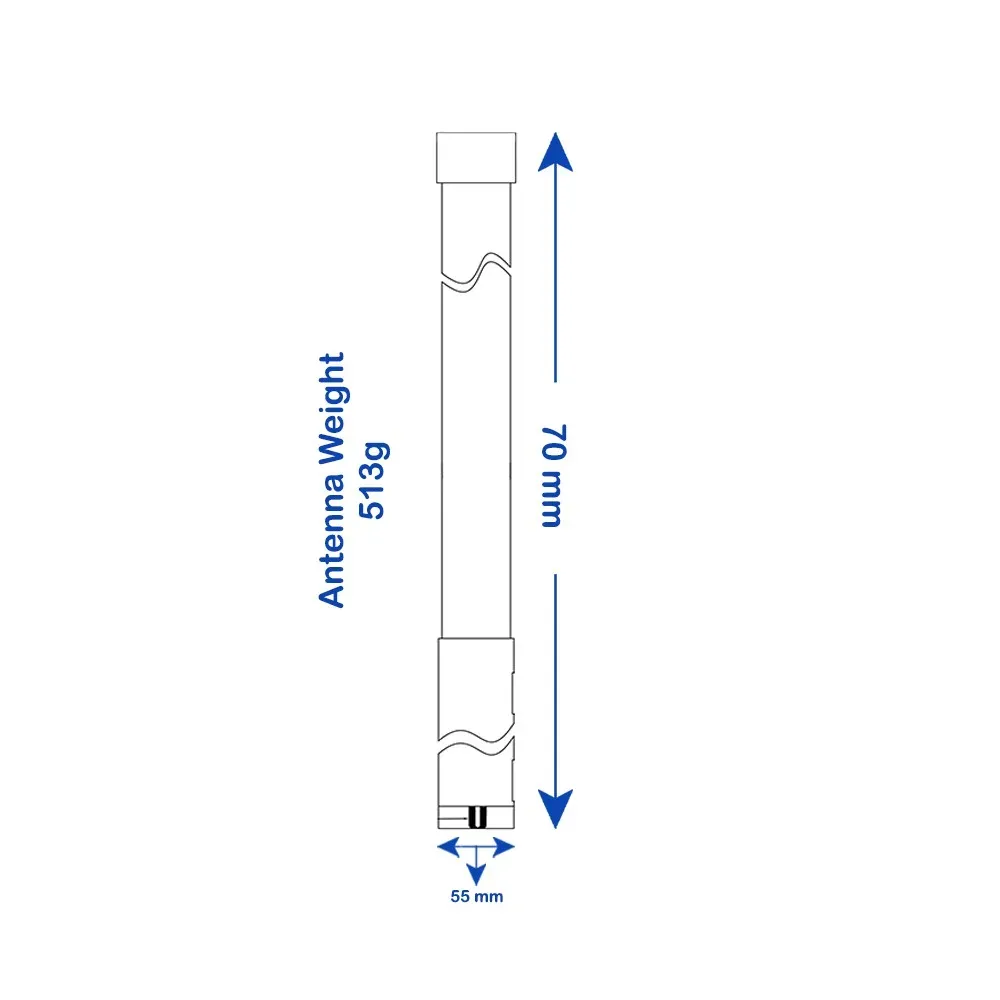

Mechanical
Length665+/-5 mm
Diameter70 x 55mm
Antenna Weight513 g
Accessories70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminum

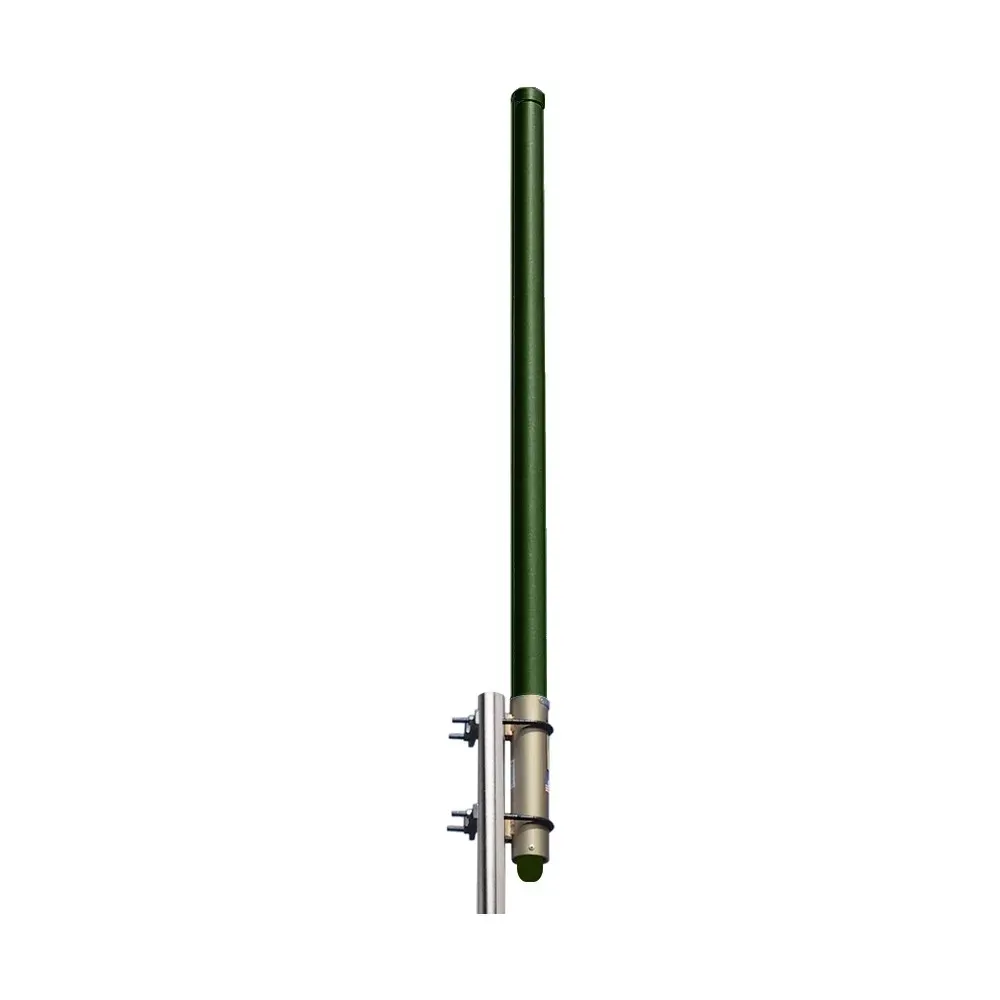

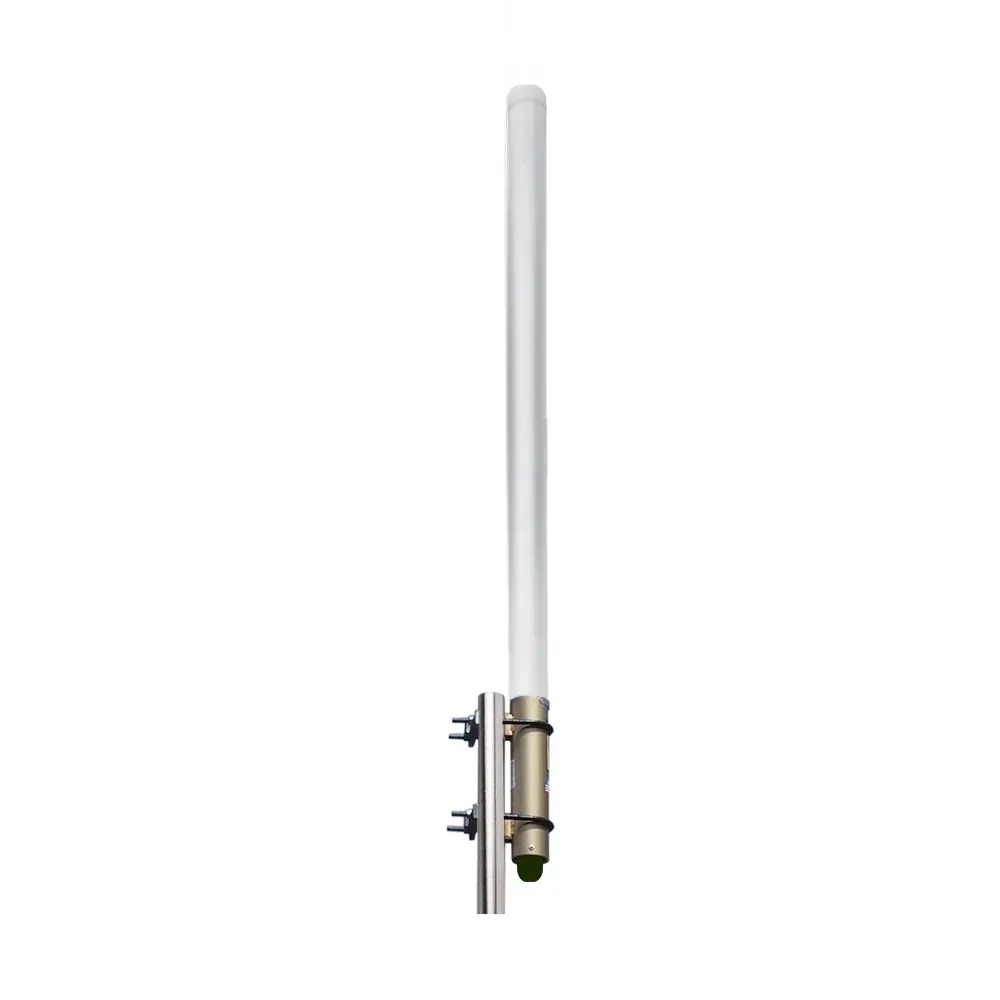

Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherCE, FCC, RoHS
