Product code: MT-DTA159
870 ~ 880MHz Cavity Band Pass Filter
- P/N：MT-DTA159
- Frequency:870 ~ 880MHz
- Stop Band Rejection：≥45dB
- Connectors：SMA-Female
Product Part Number
MT-DTA159
Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 875MHz |
| 2 | Pass Band Frequency | 870 ~ 880MHz |
| 3 | Pass Band Insertion Loss | ≤2.0dB |
| 4 | Pass Band VSWR | ≤1.3:1 |
| 5 | Stop Band Rejection | ≥45dB @ DC ~ 855MHz @ 895 ~ 2700MHz |
| 6 | Impedance | 50 Ohms |
| 7 | Power | 10W Max. |
| 8 | Connectors | SMA-Female |
| 9 | Surface Finish | Painted Black |
| 10 | Temperature Range | -20℃ ~ +60℃ |
| 11 | Material | Housing: 6061 Aluminum alloy Cover: 6061 Aluminum alloy Tuning screw: H62 Copper alloy Resonant column: H59 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel |

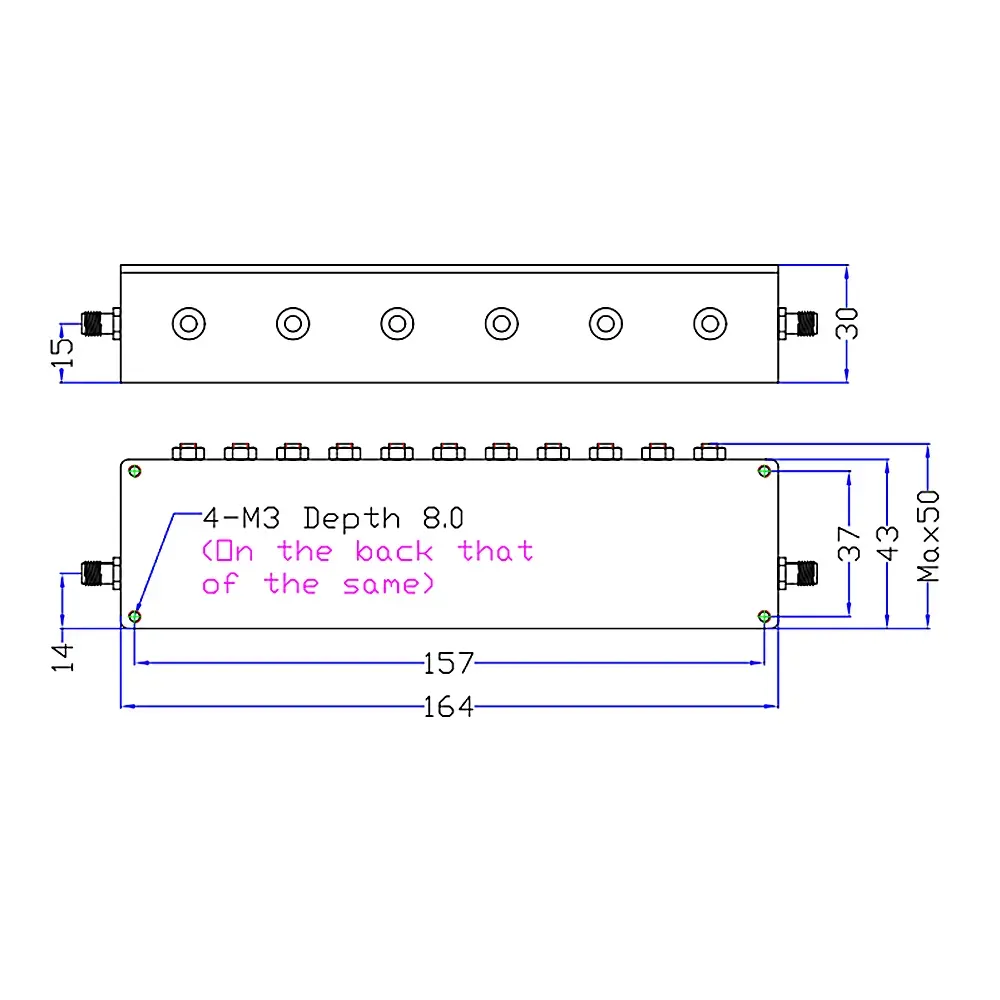

| 12 | Dimensions | 164*43*30mm |
| 13 | Net weight | TBD |
