Product code: MT-DTA4D

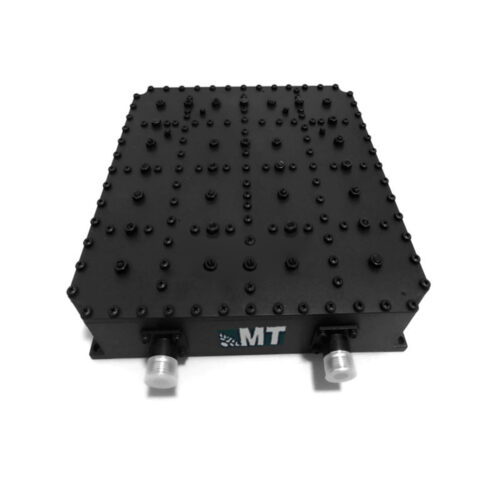

885-889MHz/930-934MHz_GSM-R Anti-Interference Band-Pass Filter

  • P/N：MT-DTA4D
  • Pass Band Frequency:885～889MHz/930～934MHz
  • inhibition：≥40dB
  • Connectors：N-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA4D
Electrical & Mechanical Specification
ParametersSpecifications
Frequency Range885～889MHz930～934MHz
Insection Loss≤1.5dB≤5.0dB
VSWR≤1.30:1
Rejection≥40db@400-875 ≥20dB@875-882MHz ≥20dB@892-899MHz ≥40dB@899-925 ≥40dB@889-925MHz ≥25dB@936-940MHz ≥60dB@940-2200MHz
Power Handling70W
Port ConnectorsN-Female
Temperature-20℃～+60℃
Impedance50Ω
Surface Finish
CongfigurationAs Below
