Product code: MT-DTA460

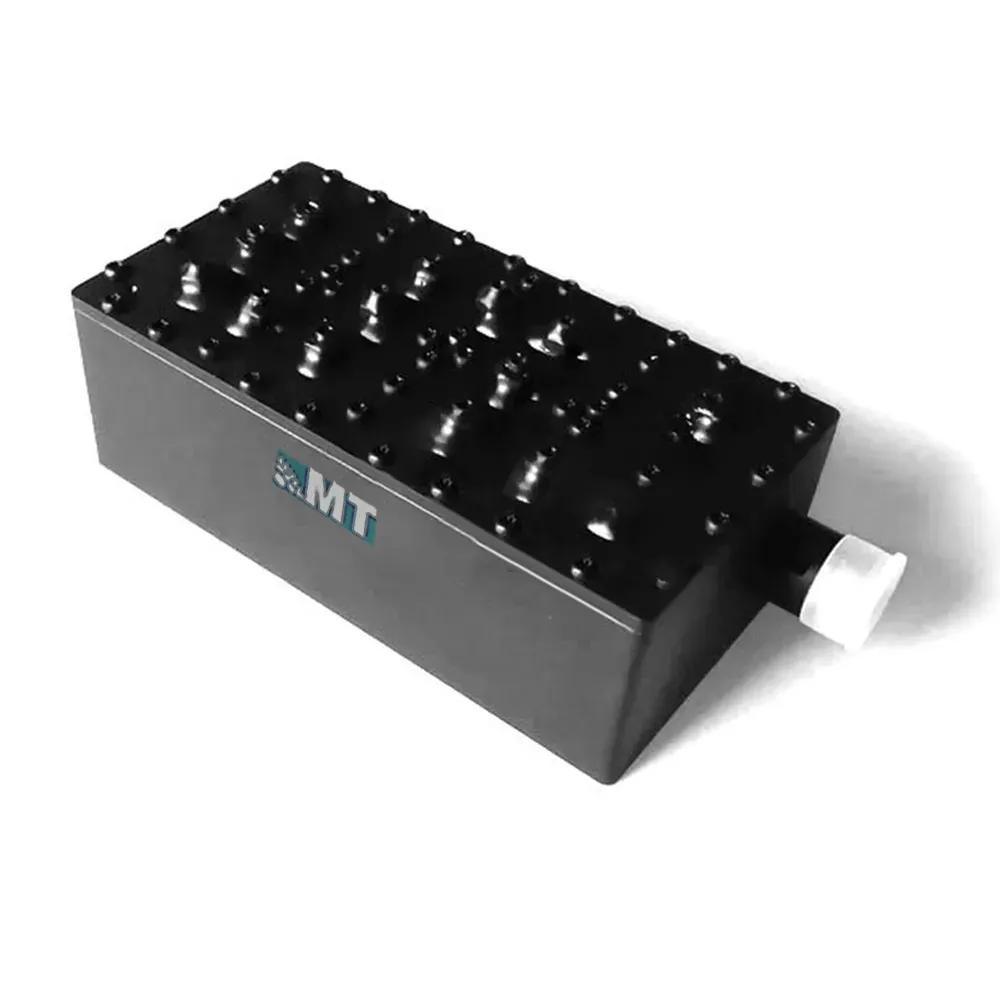

885-915MHz Cavity Band Pass Filter

  • P/N：MT-DTA460
  • Frequency：885-915MHz
  • Stop Band Attenuation：≥40dB
  • Connectors：N-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA460
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)900MHz
2Pass Band Frequency885 ~ 915MHz
3Pass Band Insertion Loss≤1.5dB
4Pass Band Ripple≤0.7dB
5Pass Band VSWR≤1.22:1
6Stop Band Rejection≥40dB @ DC ~ 875MHz @ 925 ~ 3000MHz
7Impedance50 Ohms
8Power Handling20W Max.
9ConnectorsN-Female
10Surface FinishPainted Black
11Temperature Range-30℃ ~ +70℃
