Product code: MT-8996M02-NF

890MHz to 960MHz 2dBi Vertical Omni Directional Outdoor Antenna

Product Overview
Part Number MT-8996M02-NF
Dimension 345x70x50mm
Weight 340g
Connector N-Male
Beam-width Horz.360 deg Vert.77 deg



WhatsApp Chat
Skype
Product Part Number
MT-8996M02-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range890 to 960MHz
V.S.W.R (MAX)1.5:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)2 dBi
PolarizationVertical
Maximum Power120 Watts
Vertical Beam-width77 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female

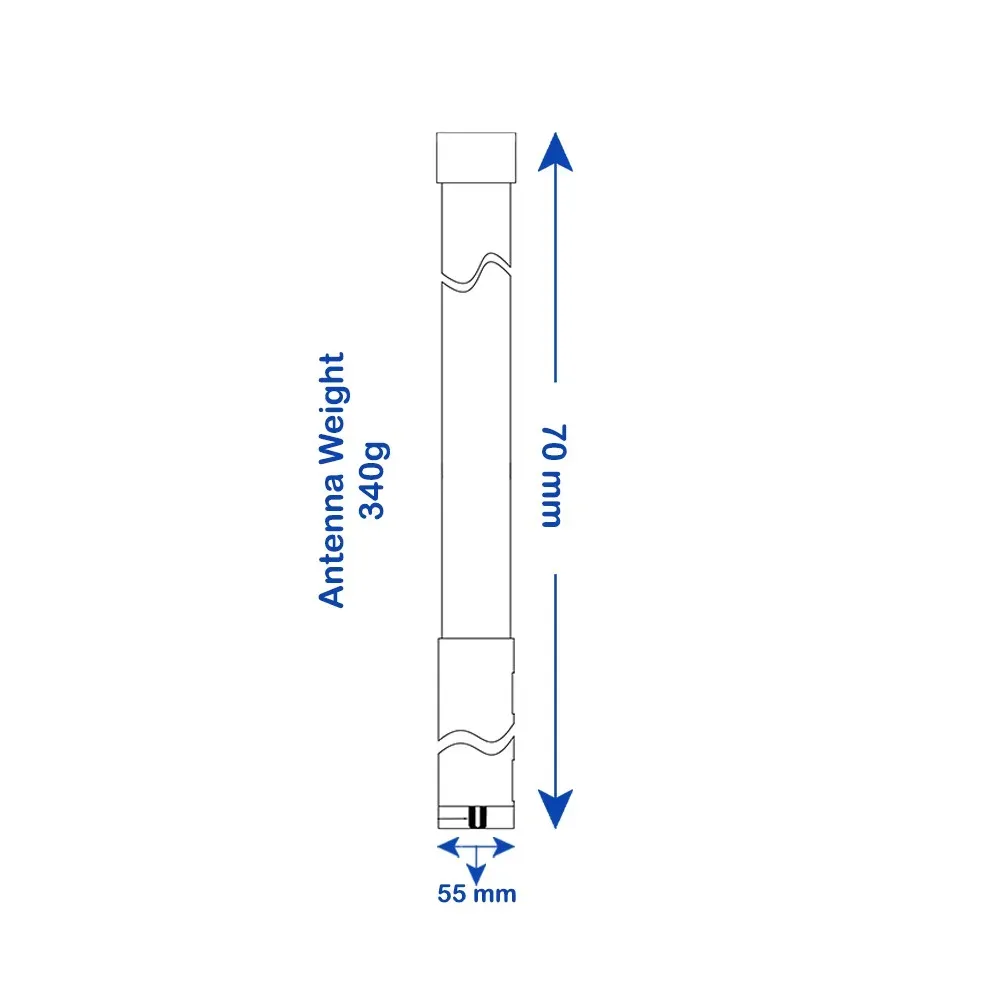

Mechanical
Length (MAX)345 mm
Diameter 70 x 55mm
Antenna Weight 340 g
Accessories70 g
ApplicationIndoor / Outdoor
(Outdoor Antenna)
Radom MaterialWhite Fiberglass
Parts MaterialAluminium

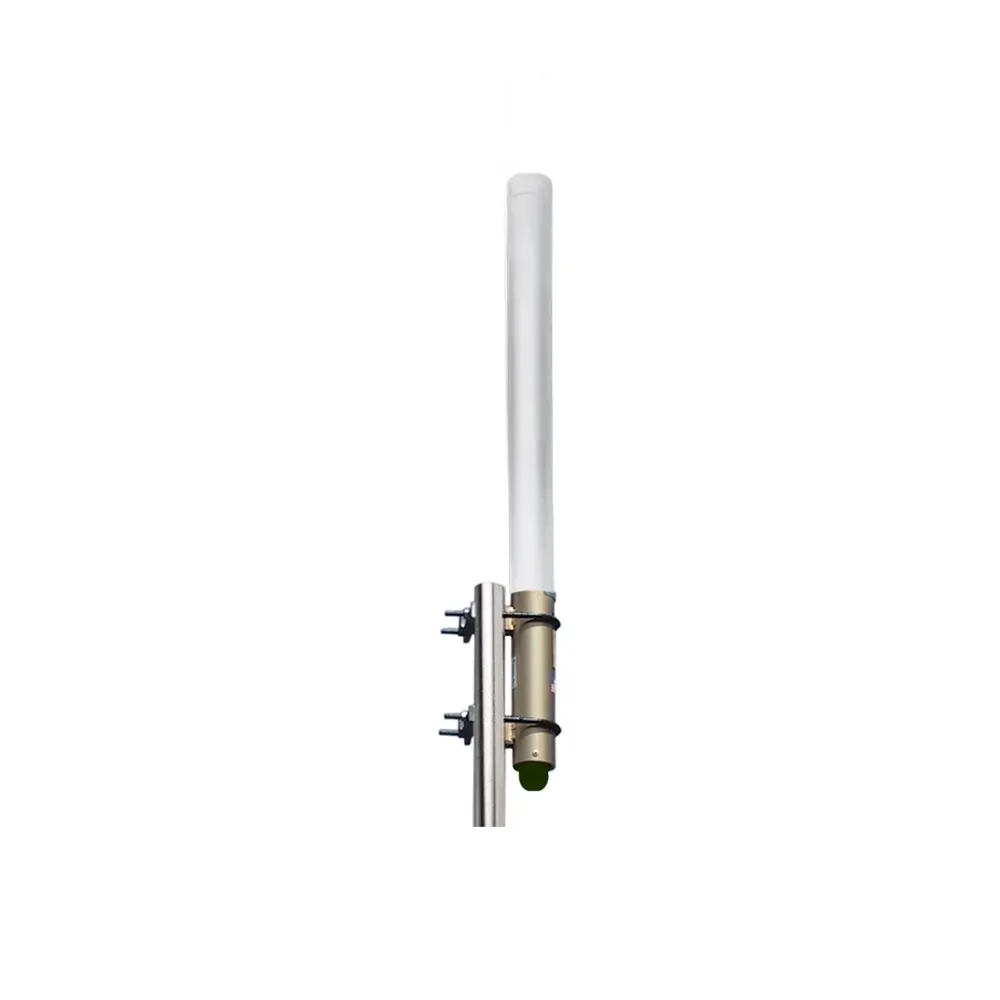

Mount StylePole Mount / Wall Mount
Pole Mounting32mm to 45mm
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
