Product code: MT-DTA676

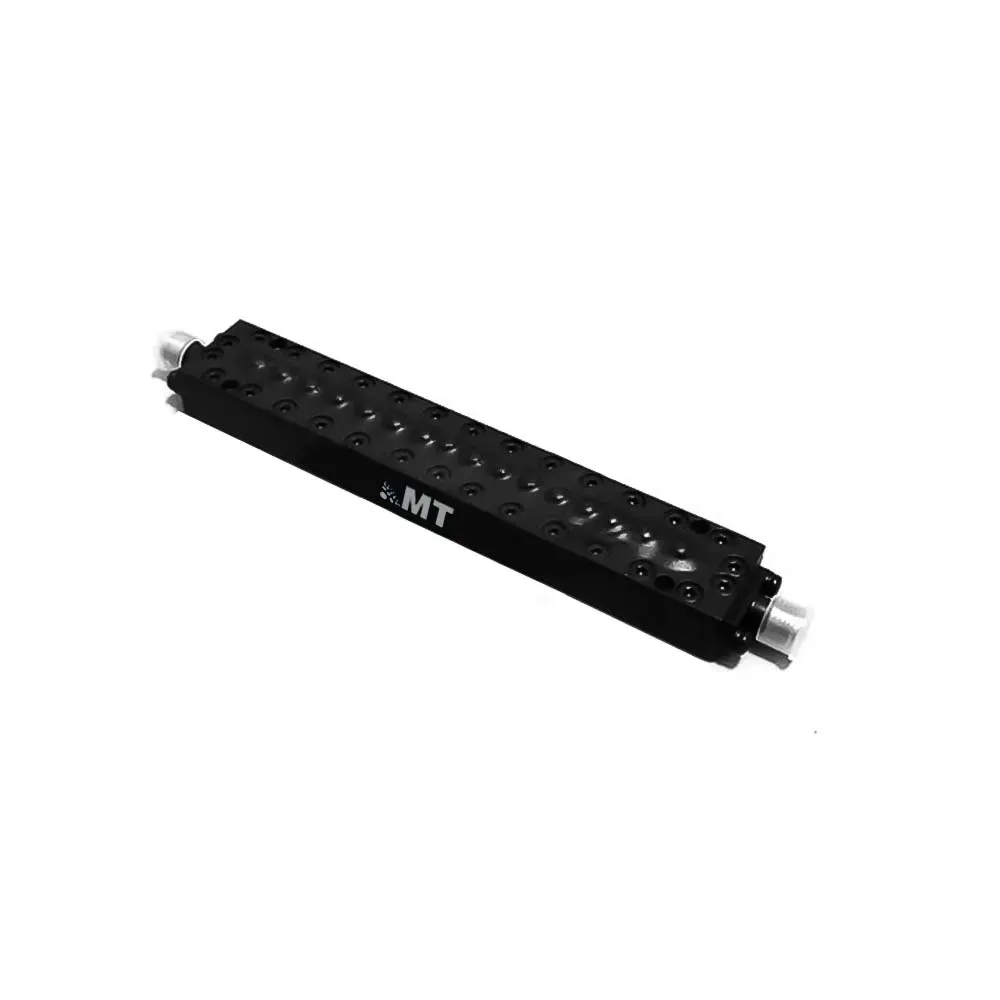

8950-9150MHz Cavity Band Pass Filter

  • P/N：MT-DTA676
  • Pass Band Frequency：8950-9150MHz
  • Stop Band Attenuation：≥80dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA676
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)9050MHz
2Pass Band Frequency8950 ~ 9150MHz
3Pass Band Insertion Loss≤1.5dB
4Pass Band Ripple≤0.4dB
5Pass Band Return Loss≥23dB
6Stop Band Rejection≥80dB @ DC ~ 8600MHz ≥40dB @ 8600 ~ 8800MHz ≥40dB @ 9300 ~ 9500MHz
≥80dB @ 9500 ~ 23000MHz
7Impedance50 Ohms
8Power Handling10W Max.
9ConnectorsSMA-Female
