Product code: MT-DTA71

9.8-9.88GHz Cavity Band Pass Filter

  • P/N：MT-DTA71
  • Pass Band Frequency:9800～9880MHz
  • inhibition：≥30dB
  • Insertion loss：≤2.8dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA71
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)9840MHz
2Pass Band Frequency9800～9880MHz
3Pass Band Insertion Loss≤2.8dB
4Pass Band VSWR≤1.3:1
5Stop Band Rejection≥30dB @ F0±80MHz *(DC～9760MHz、9920～15000MHz)
6Impedance50 ohms
7Power Handling≤5W
8ConnectorsSMA-Female
9Surface FinishBlack Paint
10Temperature Range0℃～+40℃
11Net WeightTBD

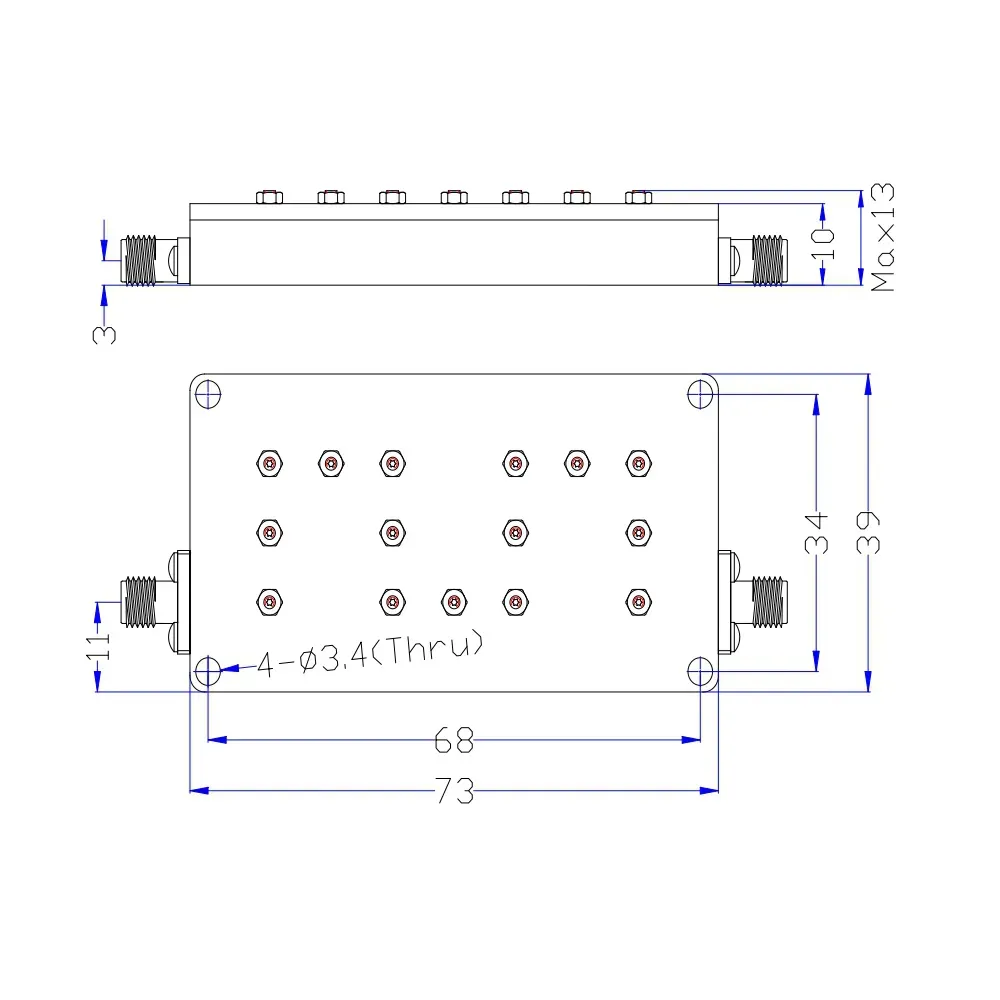

12ConfigurationAs Below (Size Unit: mm)
