Product code: MT-DTA158
9.8~11.8GHz Comb Band Pass Filter
- P/N：MT-DTA158
- Frequency:9.8~11.8GHz
- Stop Band Rejection：≥45dB
- Connectors：SMA-Female
Product Part Number
MT-DTA158
Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 10.8GHz |
| 2 | Pass Band Frequency | 9.8 ~ 11.8GHz |
| 3 | Pass Band Insertion Loss | ≤1.0dB |
| 4 | Pass Band Ripple | ≤0.6dB |
| 5 | Pass Band VSWR | ≤1.3:1 |
| 6 | Stop Band Attenuation | ≥45dB @ DC ~ 9.0GHz @ 12.6 ~ 22GHz |
| 7 | Impedance | 50 Ohms |
| 8 | Power Handling | 5W Max. |
| 9 | Connectors | SMA-Female |
| 10 | Surface Finish | Painted Black |
| 11 | Temperature Range | -30℃ ~ +70℃ |
| 12 | Material | Housing: H62 Copper alloy Cover: H62 Copper alloy Tuning screw: H62 Copper alloy Connectors: H59 Copper, Plated ternary alloy Other screw: Stainless Steel |

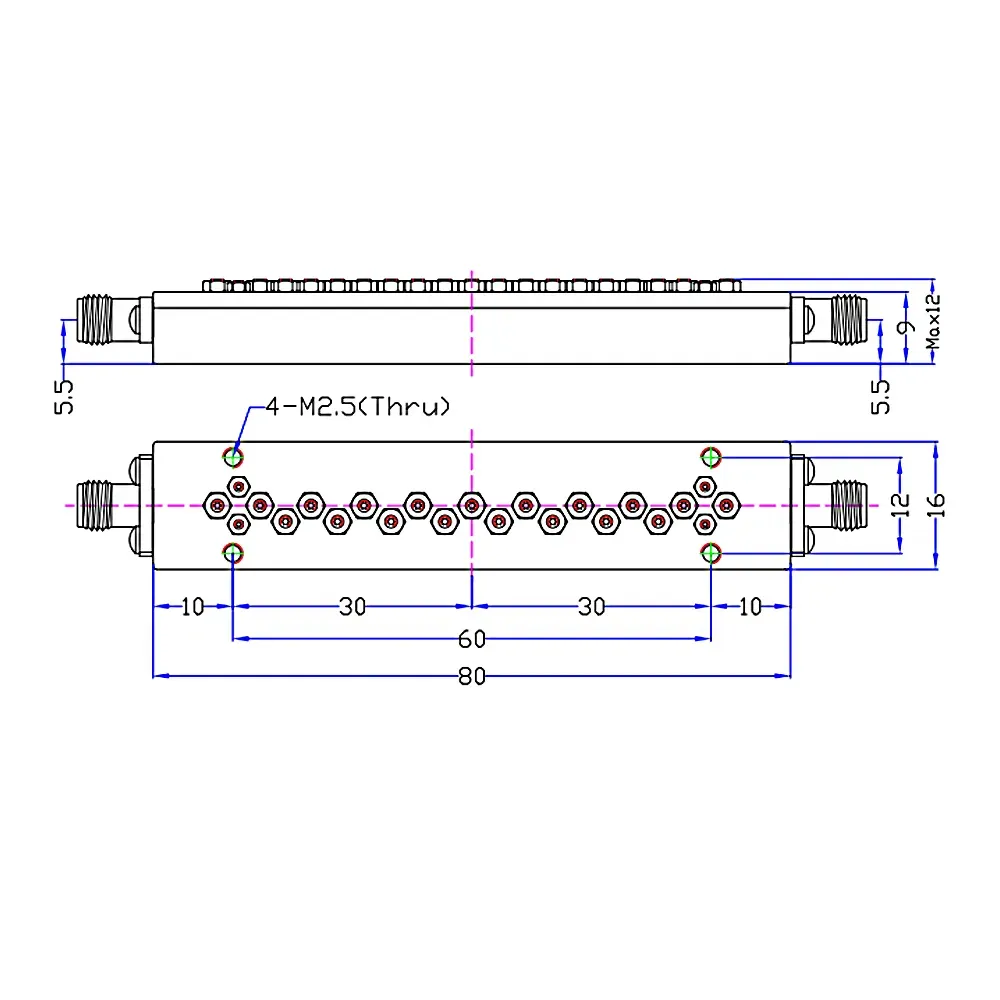

| 13 | Dimensions | 80*16*9mm |
| 14 | Net weight | 0.0781 KG |
