Product code: 9P-2300-2690F-18G-65H5V

9-Port, TDD Panel Antenna 65° HBW, 2300-2690 MHz, 18 dBi, 2-12°T, 1.497 m

9-Port Antenna Y1
Frequency Range (MHz) 2300-2690
HBW 65°
Gain 18 dBi
Tilt 2-12°

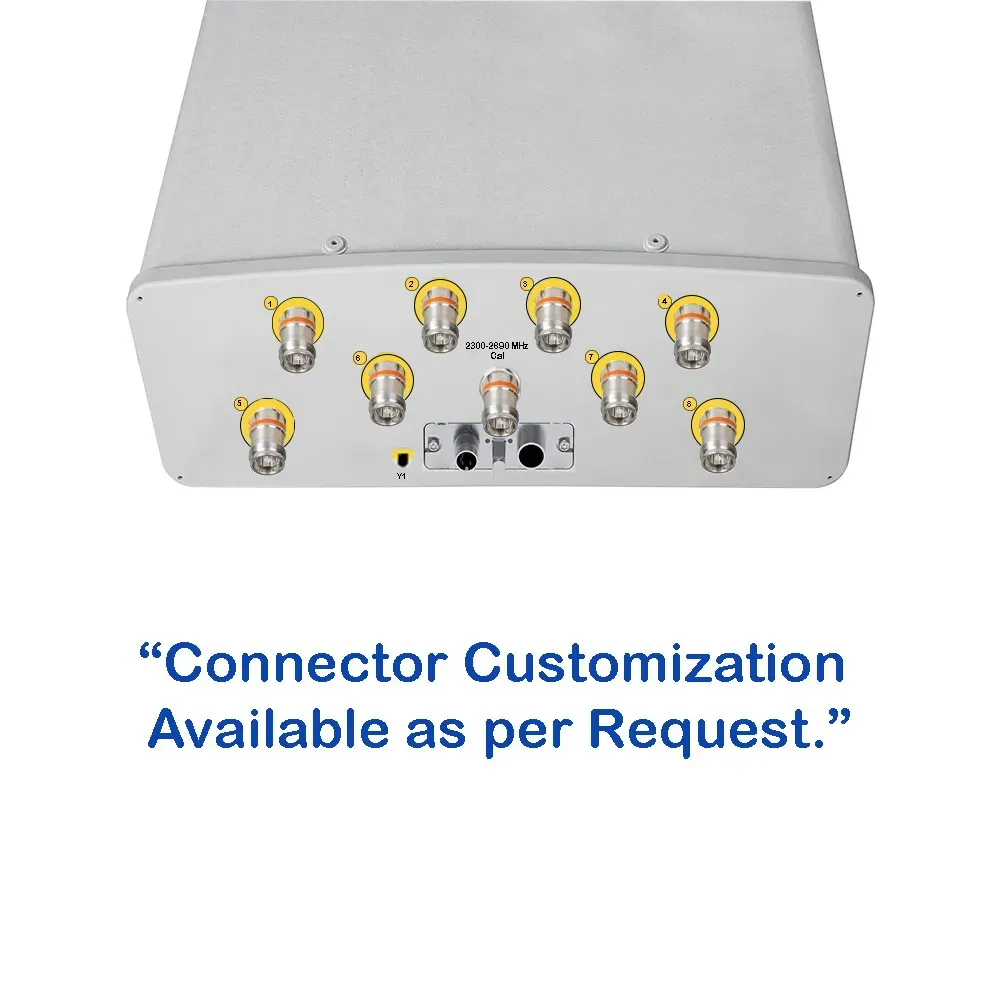

Connectors

(other connectors by request)

 (8x) 4.3/10 Female &

(1x) 4.3/10 Female Calibration Port
WhatsApp Chat
Skype
Product Part Number
9P-2300-2690F-18G-65H5V
Electrical & Mechanical Specification
Electrical Specifications
Y1
MHz2300-2690
Frequency RangeMHz2300-24002490-2690
Polarization—±45°
Electrical Downtilt, Continuously Adjustabledegree2-Dec
GaindBi16.5 ± 117 ± 1
Horizontal Beamwidthdegree90 ± 2080 ± 20
Single Column BeamVertical Beamwidth (3 Db)degree5.4 ± 0.55.0 ± 0.5
Cross-Polar Discrimination (0°)dB≥ 16≥ 16
First Upper Side Lobe SuppressiondB≥ 17≥ 17
Front-To-Back RatiodB≥ 28≥ 28
Gain Of Broadcasting Pattern (Typical)dBi17.5 ± 118 ± 1
Horizontal Beamwidthdegree6565
65°Vertical Beamwidthdegree5.4 ± 0.55.0 ± 0.5
Broadcast BeamCross Polar Discrimination At BoresightdB≥ 16≥ 16
Front-To-Back RatiodB≥ 28≥ 28
First Upper Sidelobe SuppressiondB≥ 17≥ 17
Direct Beam GaindBi22 ± 122 ± 1
Horizontal 3 Db Beamwidthdegree22 ± 321 ± 3
Service±30° Direction Beam GaindBi20 ± 120 ± 1
BeamBeam Cross Polar RatiodB≥ 20≥ 20
(0° Direction)Horizontal Sidelobe SuppressiondB≥ 12≥ 12
Beam Front To Back Ratiodegree≥ 30≥ 30
GaindBi20.5 ± 121 ± 1
Soft Split Electrical Properties (Multi-Beam)Horizontal Beamwidthdegree30 ± 328 ± 3
Vertical Beamwidth (3 dB)degree5.4 ± 0.55.0 ± 0.5
First Upper Side Lobe SuppressiondB≥ 17≥ 17
Front-To-Back RatiodB≥ 28≥ 28
Coupling Factor Between Calibration PortdB-26 ± 2
And Each Antenna Port
Max. Amplitude Tolerance FromdB≤ 0.9
Calibration Port To Input Ports
Max. Phase Tolerance From Calibration Portdegree≤ 7
Calibration & Electrical ParametersTo Input Ports
Ports VSWR—< 1.5
Return LossdB> 14
Max. Average Input Power Per RF PortW60
Co-Polarization Isolation Between PortsdB≥ 25
Cross-Polarization Isolation Between PortsdB≥ 25
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(8x) 4.3/10 Female and (1x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

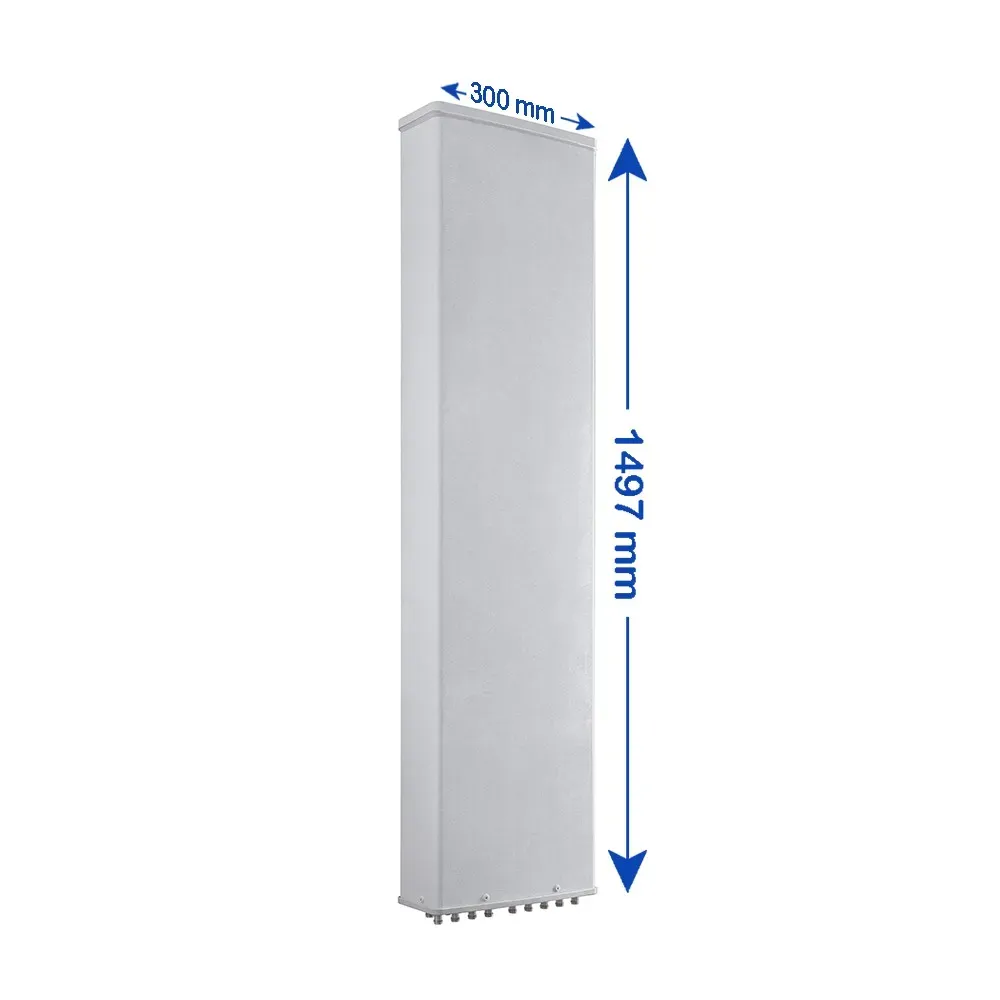

Antenna Dimensions (H x W x D)mm (in)1497 x 300 x 146 (58.9 x 11.8 x 5.7)
Antenna WeightAntenna Onlykg (lbs)19 (41.9)
With Clampskg (lbs)23 (50.7)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)415 (93.3)
At 150RearN (lbf)465 (104.5)
Km/HLateralN (lbf)250 (56.2)
Operating Temperature°C (°F)-40 to +60 (-40 to 140)
