Product code: 9P-3300-3800F-16G-75H6V

9-Port, TDD Panel Antenna 75° HBW, 3300-3800 MHz, 16 dBi, 2-12°T, 0.997 m

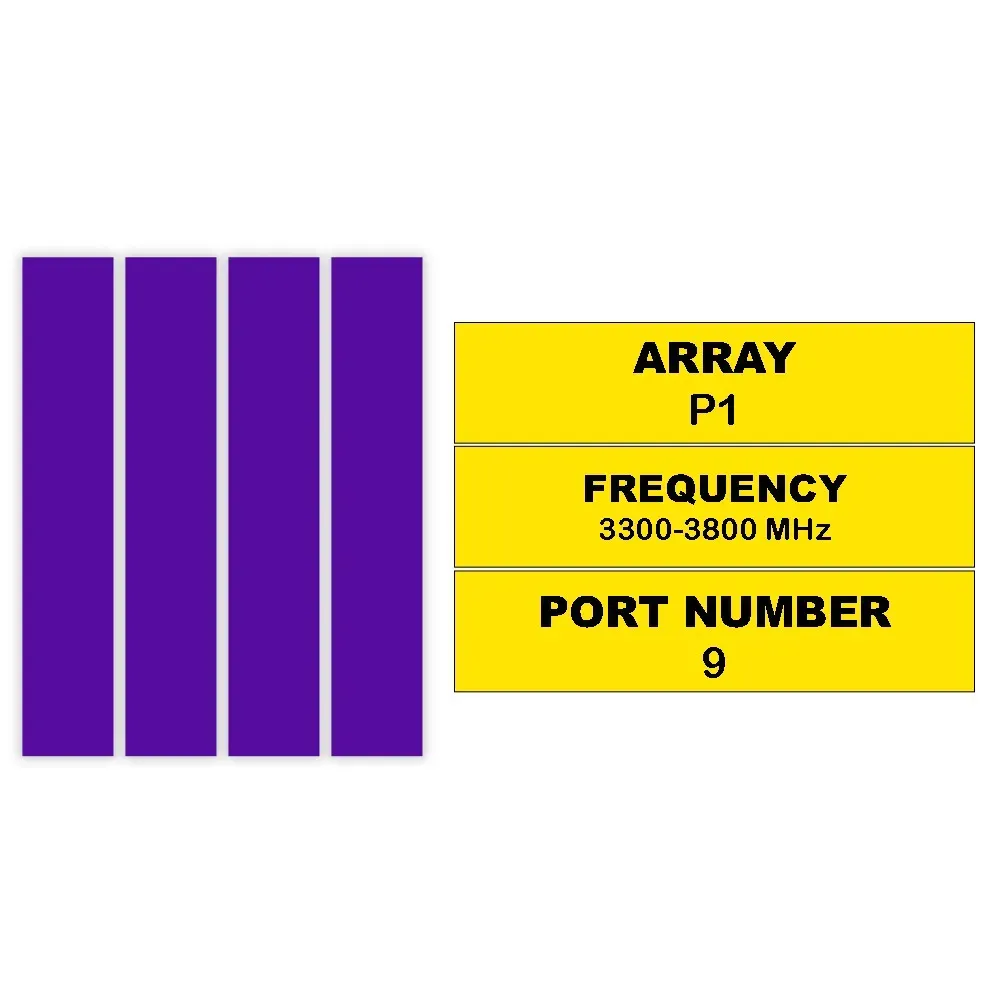

9-Port Antenna P1
Frequency Range (MHz) 3300-3800
HBW 75°
Gain 16 dBi
Tilt 2-12°
Connectors

(other connectors by request)

 (9x) 4.3/10 Female
WhatsApp Chat
Skype
Product Part Number
9P-3300-3800F-16G-75H6V
Electrical & Mechanical Specification
Electrical Specifications
P1
Frequency RangeMHz3300-3800
MHz3300-36003600-3800
Polarization—±45°
Electrical Downtilt, Continuously Adjustabledegree2-Dec
GaindBi14.0 ± 114.3 ± 1
Horizontal Beamwidthdegree75 ± 1065 ± 10
Single Column BeamVertical Beamwidth (3 dB)degree6.6 ± 0.76.2 ± 0.6
Cross-Polar Discrimination (0°)dB≥ 15≥ 15
First Upper Side Lobe SuppressiondB≥ 15≥ 15
Front-To-Back RatiodB≥ 22≥ 22
Gain (typical)dBi15.5 ± 115.8 ± 1
Horizontal Beamwidthdegree6565
65°Vertical Beamwidthdegree6.6 ± 0.76.2 ± 0.6
Broadcast BeamCross-Polar Discrimination (0°)dB≥ 15≥ 15
First Upper Side Lobe SuppressiondB≥ 15≥ 15
Front-To-Back RatiodB≥ 25≥ 25
GaindBi18.5 ± 118.8 ± 1
0°3dB Horizontal Beamwidthdegree< 25< 25
DirectCross Polar RatiodB≥ 16≥ 16
ServiceBeamFront-To-Back RatiodB≥ 25≥ 25
Beam±30°GaindBi16.516.8
Direct
Beam3dB Horizontal Beamwidthdegree< 30< 30
Calibration And Electrical ParameterCoupling Factor Between Calibration AnddB-26 ± 2
Each Antenna Port
Maximum Amplitude Tolerance FromdB≤ 0.7
Calibration Port To Antenna Port
Maximum Phase Tolerance FromdB≤ 9
Calibration Port To Antenna Port
Average Power Per PortW25
IsolationCo-Polar Isolation Bewtween PortsdB≥ 20
Cross-Polar Isolation Between PortsdB≥ 25
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
Lightning Protection—DC Ground
Values based on NGMN-P-BASTA V10.0
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

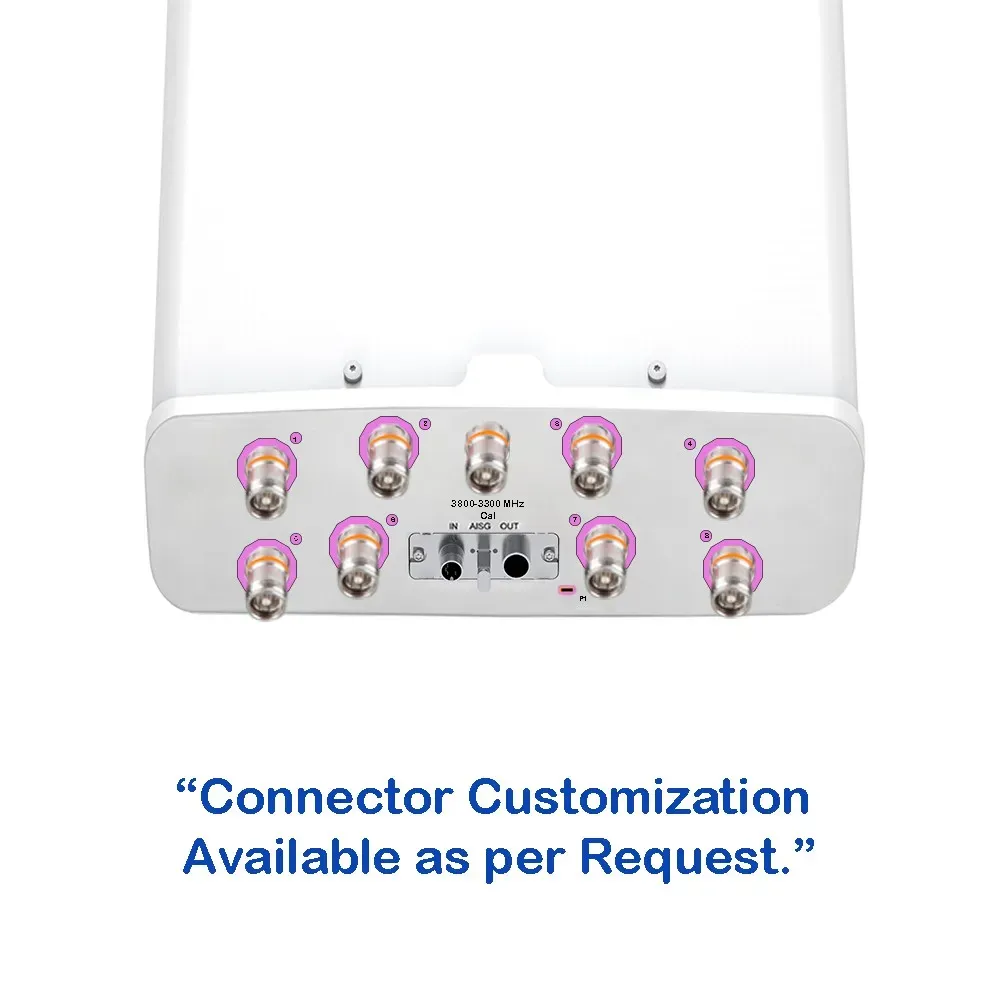

Connector Type—(8x) 4.3/10 Female and
(1x) 4.3/10 Female Calibration Port
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

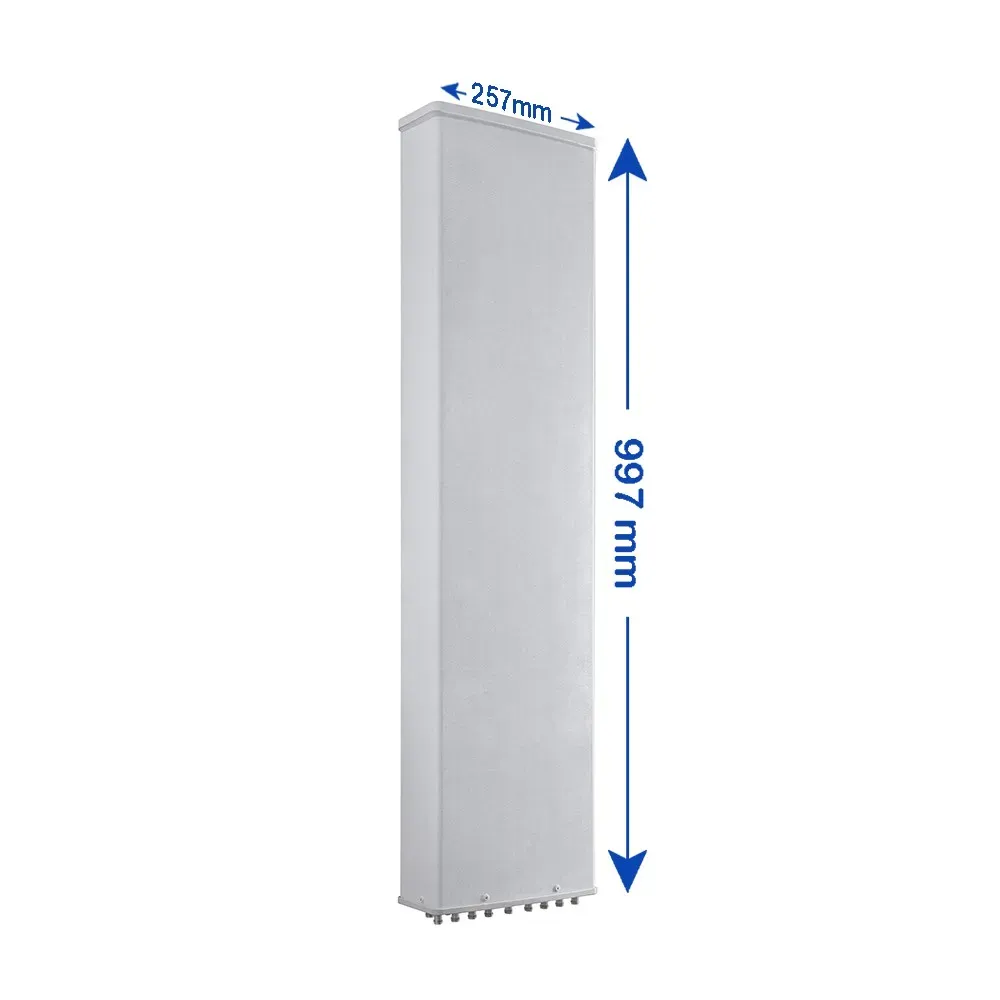

Antenna Dimensions (H x W x D)mm (in)997 x 257 x 87 (39.3 x 10.1 x 3.4)
Antenna WeightAntenna Onlykg (lbs)10.5 (23.1)
with Clampskg (lbs)14.5 (32.0)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)235 (52.8)
at 150 km/hRearN (lbf)265 (59.6)
LateralN (lbf)100 (22.5)
Operating Temperature°C (°F)-40 to +60 (-40 to 140)
