Product code: 9P-3300-3800F-17G-75H6V

9-Port, TDD Panel Antenna 75° HBW, 3300-3800 MHz, 17 dBi, 2-12°T, 1.097 m

9-Port Antenna P1
Frequency Range (MHz) 3300-3800
HBW 75°
Gain 17 dBi
Tilt 2-12°
Connectors

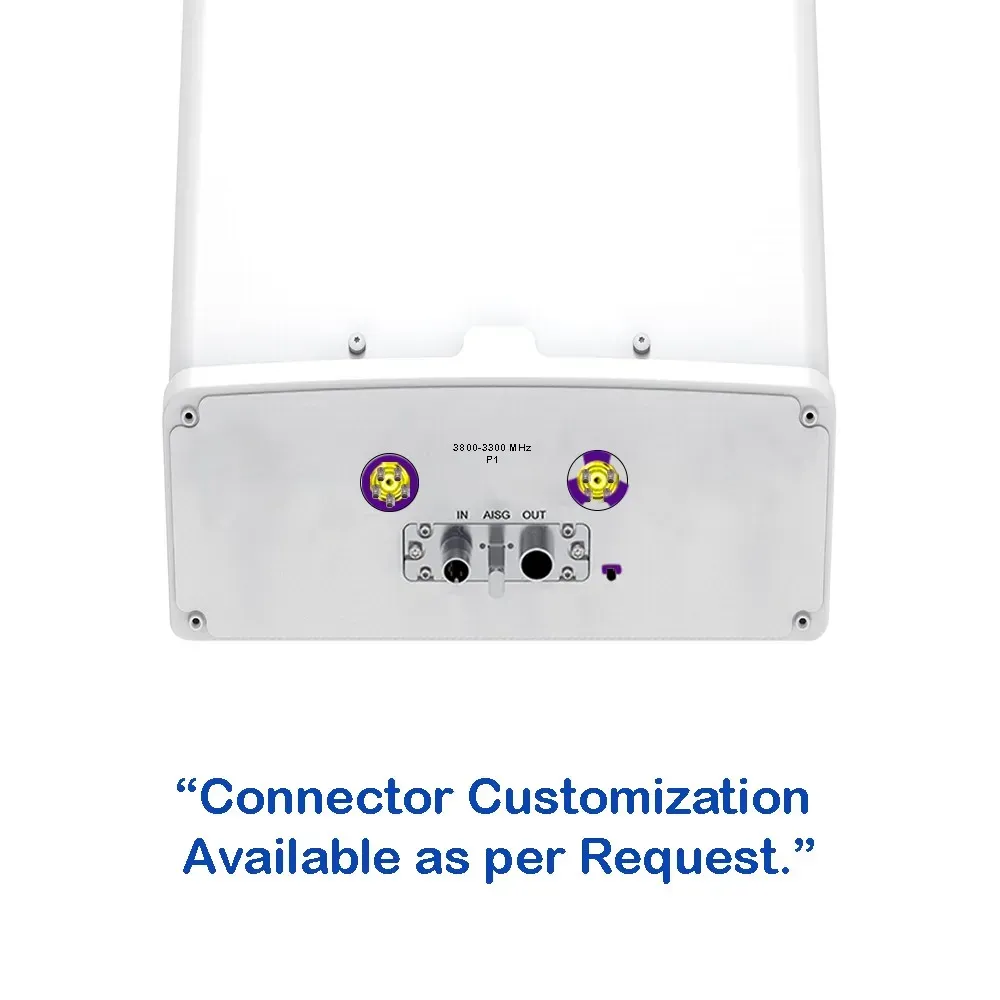

(other connectors by request)

 (1x) MQ4 & (1x) MQ5
WhatsApp Chat
Skype
Product Part Number
9P-3300-3800F-17G-75H6V
Electrical & Mechanical Specification
Electrical Specifications
TDD LTE Electrical SpecificationsP1
Frequency RangeMHz3300-3800
Polarization—±45°
Electrical Downtilt, Continuously Adjustabledegree2-Dec
GaindBi17
Horizontal Beamwidth (3 dB)degree75
Vertical Beamwidth (3 dB)degree5.8
Single Column BeamCross-Polar Discrimination at BoresightdB≥ 15
Cross-Polar Discrimination over sectordB≥ 8
First Upper Side Lobe SuppressiondB≥ 15
Front-To-Back RatiodB≥ 23
GaindBi18
Horizontal Beamwidth (3 dB)degree65
65°Vertical Beamwidth (3 dB)degree5.8
Broadcast BeamCross-Polar Discrimination (0°)dB≥ 15
First Upper Side Lobe SuppressiondB≥ 15
Front-To-Back RatiodB≥ 25
GaindBi21.5
0°3dB Horizontal Beamwidthdegree26
DirectCross Polar Ratio at BeampeakdB≥ 16
BeamFront-To-Back RatiodB≥ 27
ServiceHorizontal Sidelobedegree12
Beam±30°GaindBi20
Direct3dB Horizontal Beamwidthdegree31
BeamFront-To-Back RatiodB≥ 25
GaindB20
Soft Split Multi-Beam3dB Horizontal Beamwidthdegree31
Front-To-Back RatiodB≥ 25
Calibration And Electrical ParameterCoupling Factor Between Calibration AnddB-26 ± 2
Each Antenna Port
Maximum Amplitude Tolerance FromdB≤ 1.0
Calibration Port To Antenna Port
Maximum Phase Tolerance FromdB≤ 9
Calibration Port To Antenna Port
Average Power Per PortW25
IsolationIntrabanddB≥ 23
InterbanddB≥ 23
ImpedanceOhm50
VSWR—< 1.5
Lightning Protection—DC Ground
5GNR Electrical SpecificationsP1
Frequency RangeMHz3300-3800
GaindBi17
Horizontal Beamwidth (3 dB)degree75
Single Column BeamVertical Beamwidth (3 dB)degree5.8
Cross-Polar Discrimination at BoresightdB≥ 15
Cross-Polar Discrimination over sectordB≥ 8
First Upper Side Lobe SuppressiondB≥ 15
NRGaindBi21
Broadcast Beam (±13°,Horizontal Beamwidth (10 dB)degree120
±43° FourFirst Upper Side Lobe SuppressiondB≥ 15
Narrow Beam)Front-To-Back RatiodB≥ 25
GaindBi21.5
0°3dB Horizontal Beamwidthdegree26
NR ServiceDirectCross Polar Ratio at BeampeakdB≥ 16
BeamBeamFront-To-Back RatiodB≥ 27
Horizontal Sidelobedegree12
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions
Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Mechanical Specifications
Connector Type—(1x) MQ4 and (1x) MQ5
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—UPVC

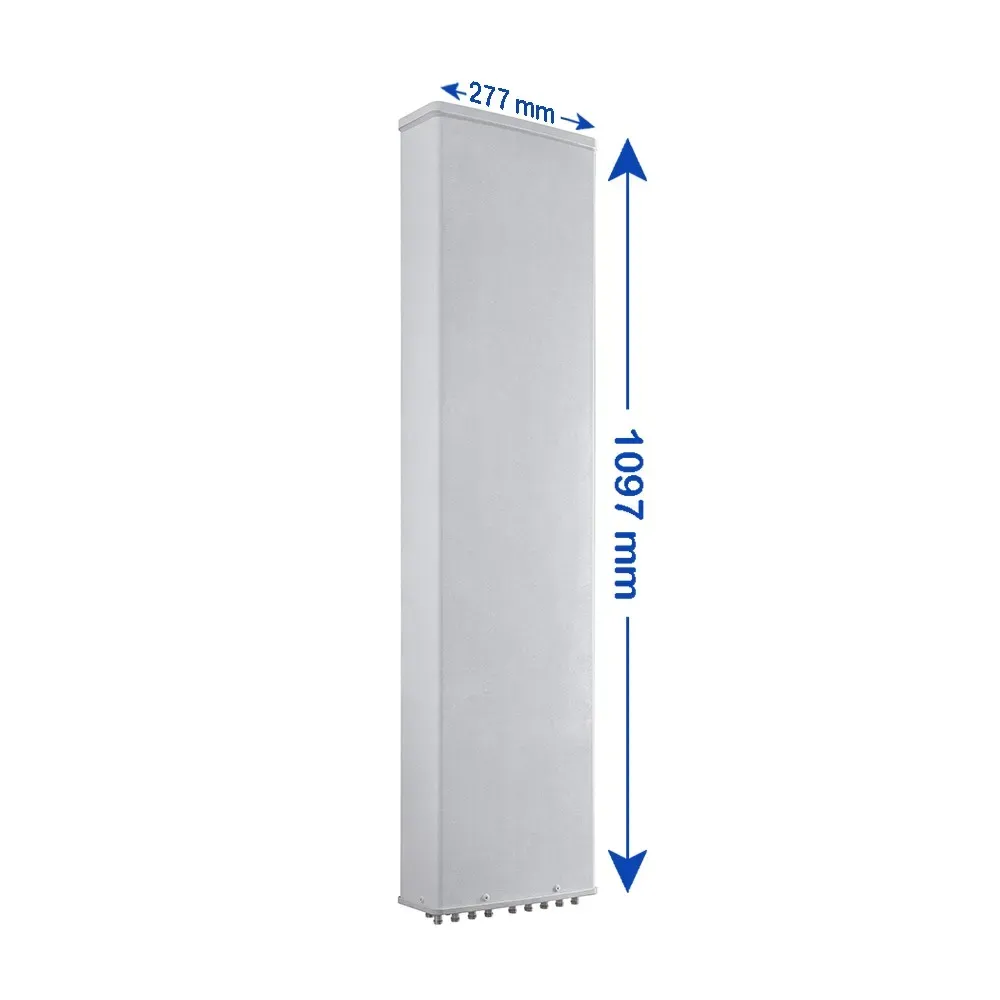

Antenna Dimensions (H x W x D)mm (in)1097 x 277 x 167 (43.2 x 10.9 x 6.6)
Antenna WeightAntenna Onlykg (lbs)13 (28.7)
with Clampskg (lbs)17 (37.5)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)280 (62.9)
at 150 km/hRearN (lbf)315 (70.8)
LateralN (lbf)210 (47.2)
Operating Temperature°C (°F)-40 to +60 (-40 to 140)
