Product code: 9P-2300-2400F-16G-90H6V

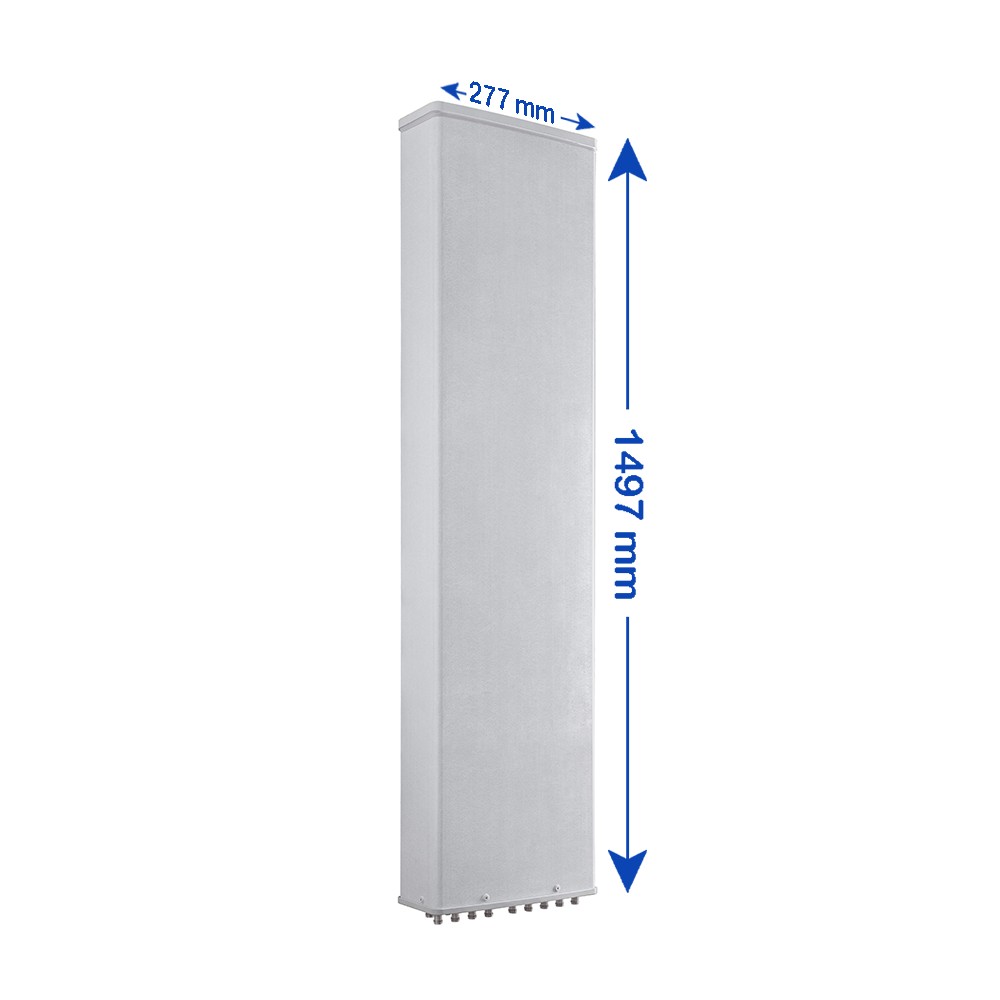

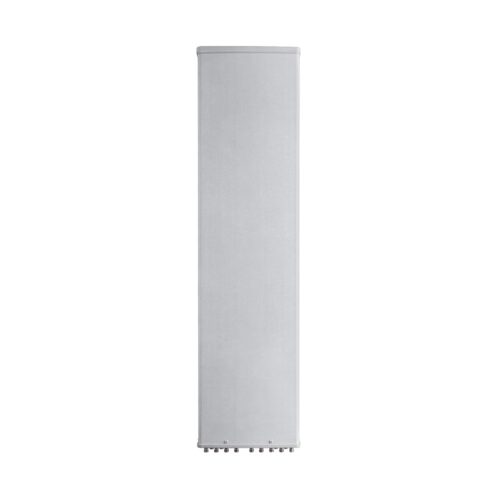

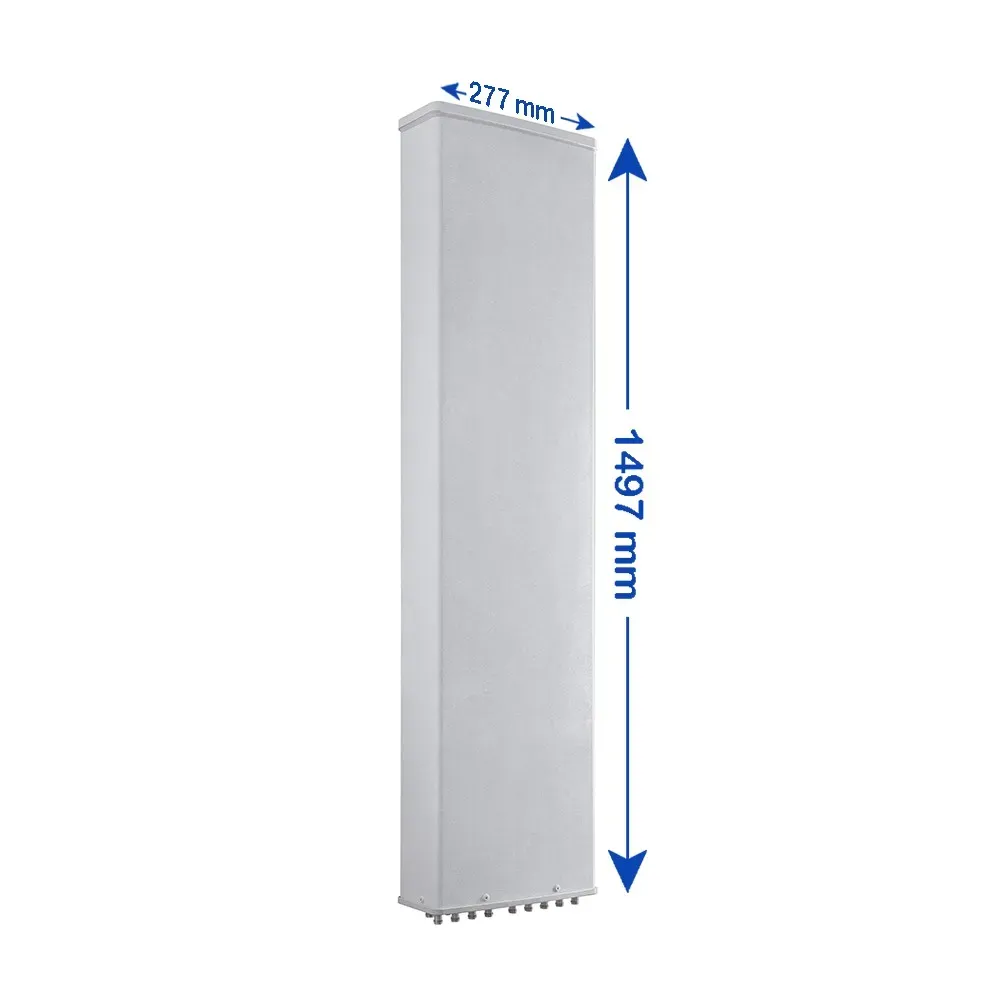

9-Port, TDD Panel Antenna 90° HBW, 2300-2400 MHz, 16 dBi, 2-12°T, 1.497 m
| 9-Port Antenna | Y1 |
| Frequency Range (MHz) | 2300-2400 |
| HBW | 90° |
| Gain | 16 dBi |
| Tilt | 2-12° |

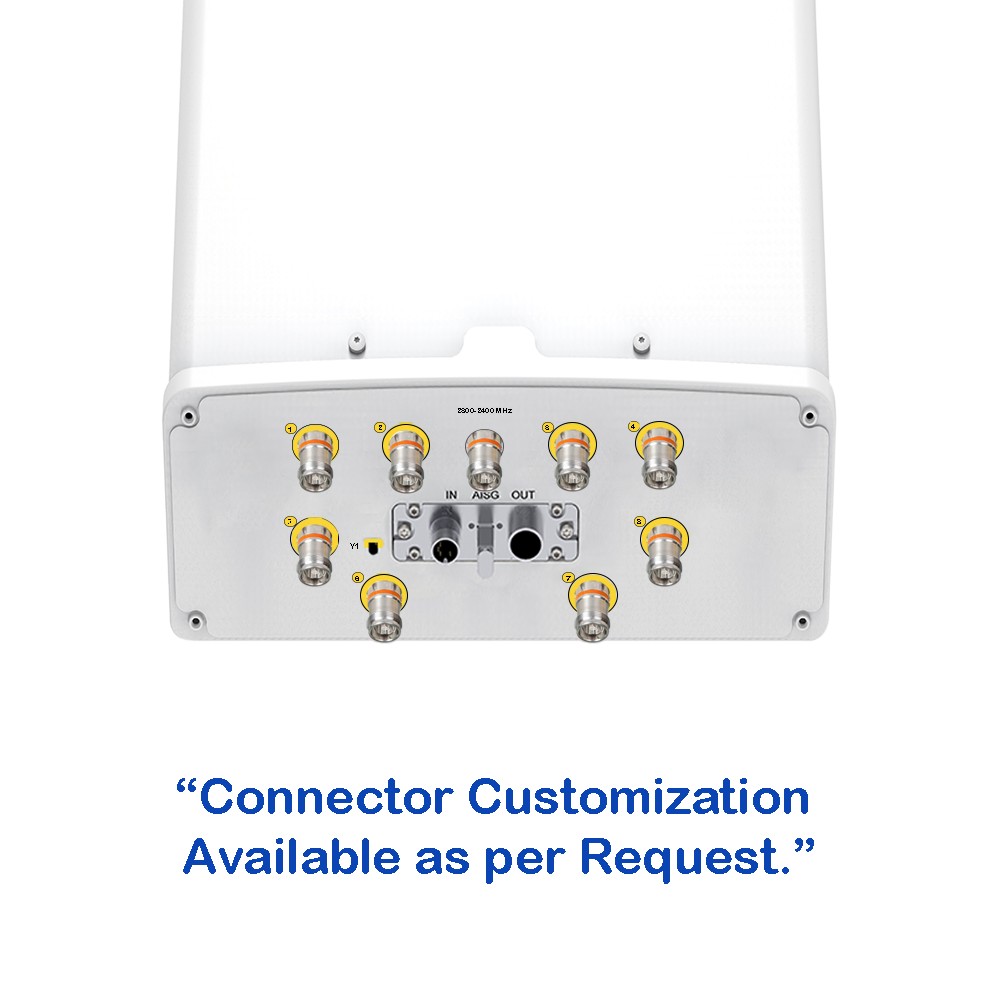

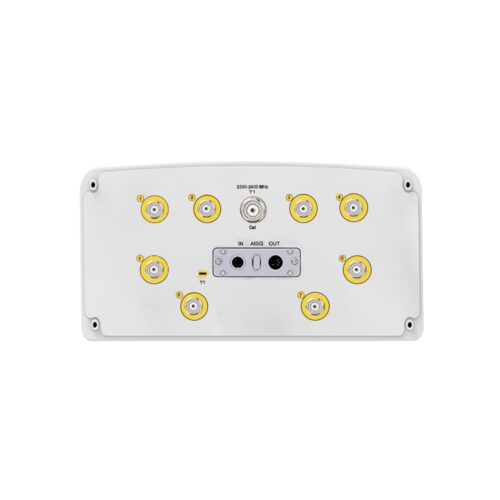

| Connectors
(other connectors by request) |
(8x) 4.3/10 Female &
(1x) 4.3/10 Female Calibration Port |
