Product code: MT-915M04-NF

915 MHz 4dBi Omni Directional Outdoor Antenna (US915) N-Female

Product Overview
Part Number MT-915M04-NF

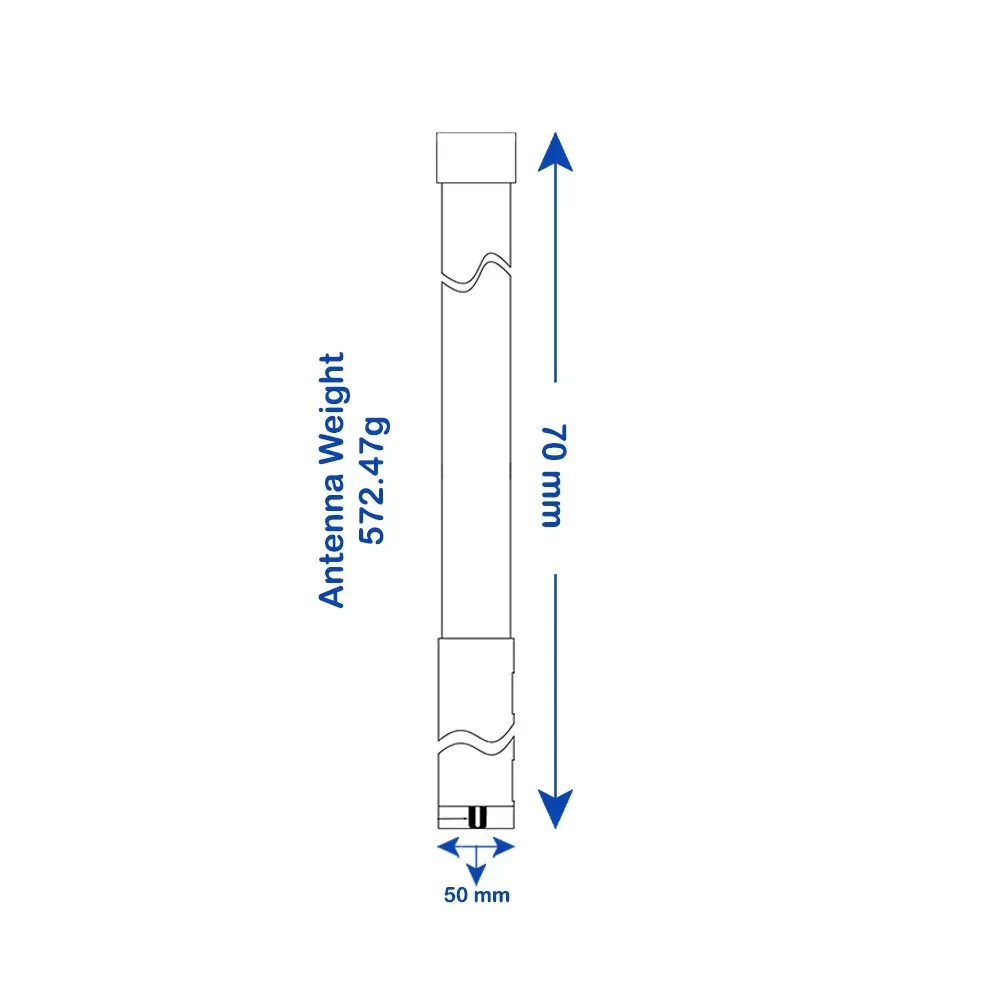

Dimension 745x70x50mm
Weight  572.47g
Connector  N-Female
Beam-width Horz.360 deg Vert.50 deg



WhatsApp Chat
Skype
Product Part Number
MT-915M04-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range902 to 928MHz
V.S.W.R (MAX)915MHz: 1.5:1
902 and 928MHz: <2.0
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)4 dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beam-with50 Deg
Horizontal Beam-with360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length744.45+-30mm
Diameter 70x50mm
Antenna Weight 572.47g
Accessories70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater then 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherCE, FCC, RoHS
