Product code: MT-915M05C-NF

915 MHz 5dBi Omni Directional Outdoor Antenna Spring Designed (US915) N-Female

Product Overview
Part Number MT-915M05C-NF
Dimension 635x70x50mm
Weight 0.43 KG
Connector  N-Female
Beam-width Horz.360 deg Vert.34 deg



WhatsApp Chat
Skype
Product Part Number
MT-915M05C-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range902 to 928MHz
V.S.W.R (AVG)2:01
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)5 dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beam-width34 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female

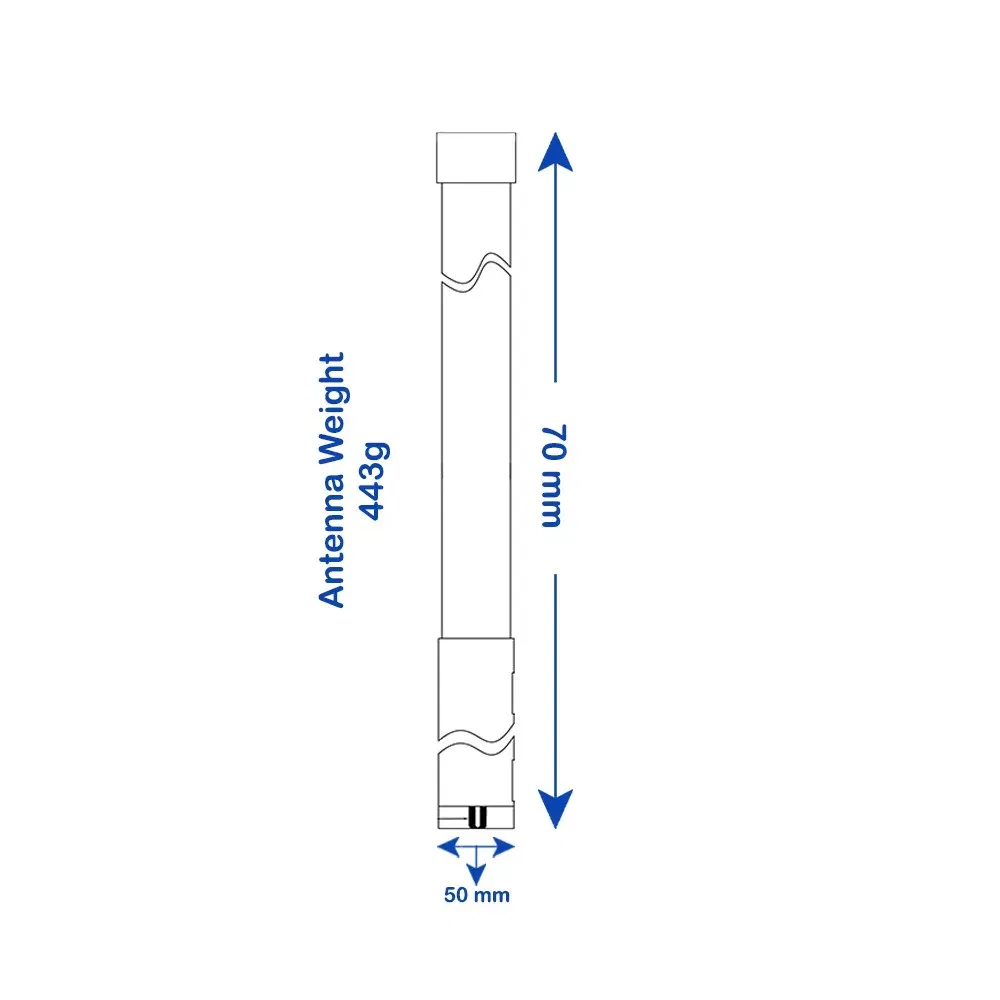

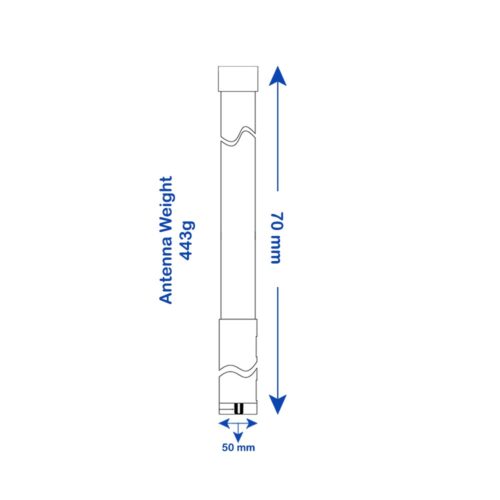

Mechanical
Length (MAX)635+-30mm
Diameter (MAX)70 x 50mm
Antenna Weight (G.W) 443 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherCE, FCC, RoHS
