Product code: MT-915M07C-NF

915 MHz 7dBi Omni Directional Outdoor Antenna Spring Designed (AS915) N-Female

Product Overview
Part Number MT-915M07C-NF

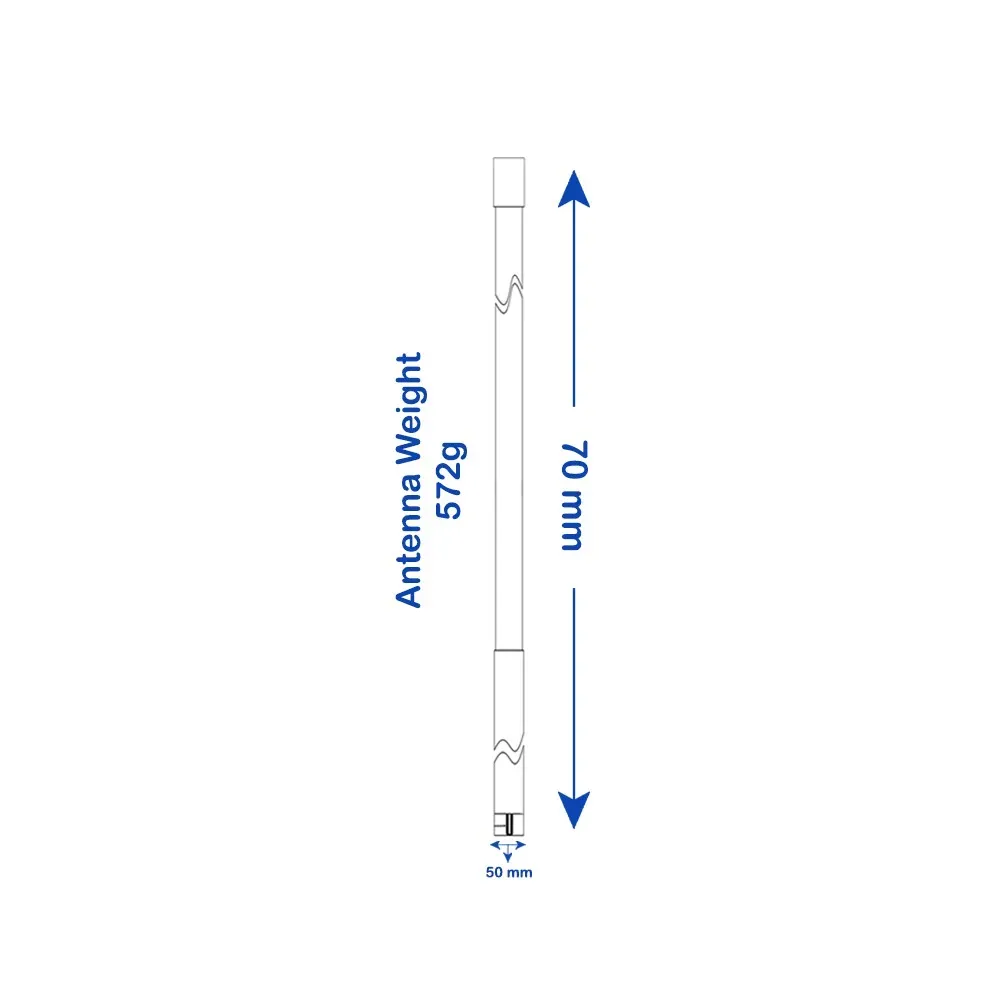

Dimension 1235x70x50mm
Weight 0.58 KG
Connector  N-Female
-3 Beam-width Horz.360 deg Vert.21 deg



WhatsApp Chat
Skype
Product Part Number
MT-915M07C-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range902 to 928MHz
V.S.W. R(AVG) 2:1
Antenna TypeSpring array
RadiationOmni Directional
Gain (MAX)7 dBi
PolarizationVertical
Maximum Power30 Watts
Vertical Beam-width21 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignSpring array
Internal MaterialCopper spring
ConnectorN-Female
Mechanical
Length1235+/-5 mm
Diameter70 x 50mm
Antenna Weight  572 g
Accessories 70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherCE, FCC, RoHS
