Product code: MT-915M08-NF

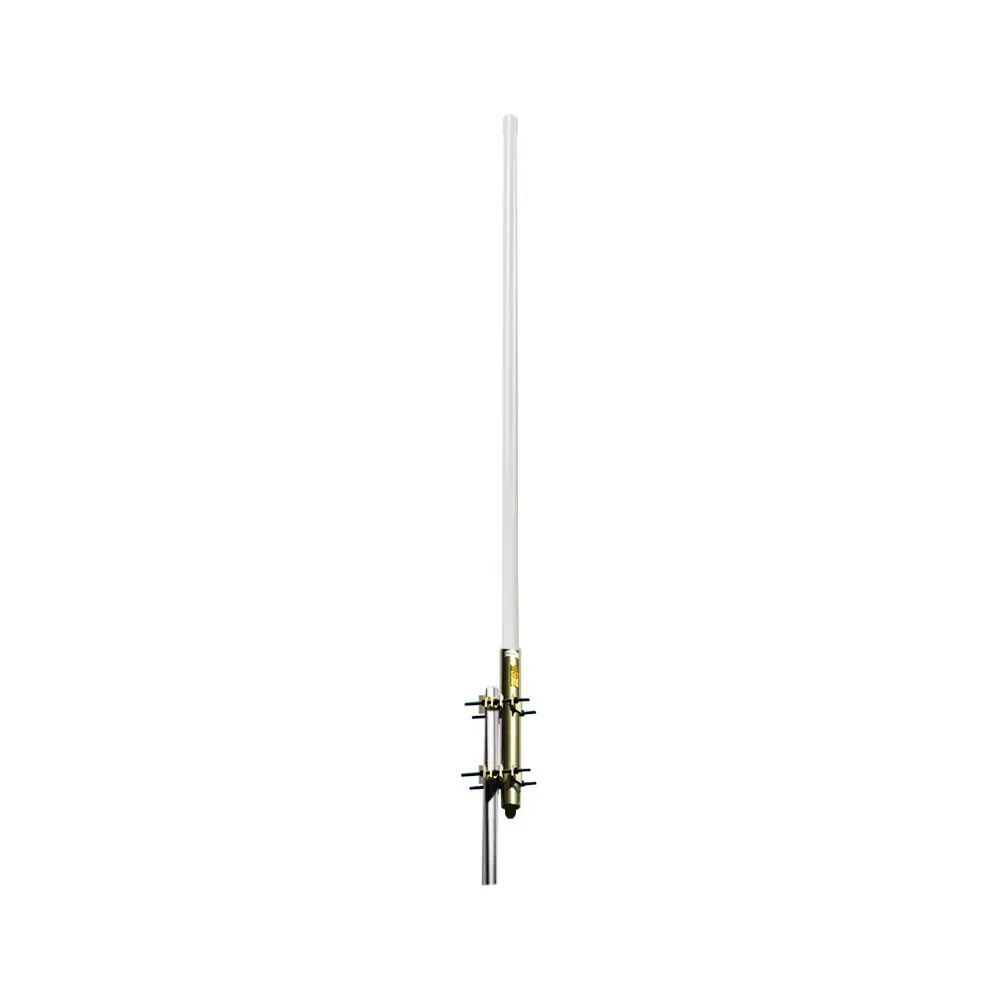

915 MHz 8dBi Omni Directional Outdoor Antenna (US915) N-Female

Product Overview
Part Number MT-915M08-NF
Dimension 1475x70x50mm
Weight 870g
Connector N-Female
Beam-width Horz.360 deg Vert.13 deg



WhatsApp Chat
Skype
Product Part Number
MT-915M08-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range900 to 930MHz
V.S.W.R (MAX)915MHz: 1.5:1
902 and 928MHz: <2.0
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)8dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beam-width14 Deg
Horizontal Beam-width360Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length 1475+/-5 mm
Diameter 70 x 50mm
Antenna Weight 870 g
Accessories 70 g
ApplicationIndoor / Outdoor
Radom MaterialWhite Fiberglass
Mount StylePole Mount / Wall Mount
Parts MaterialAluminium
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherCE, FCC, RoHS
