Product code: MT-915M12-NF

915MHz 12dBi Omni Directional Outdoor Antenna

Product Overview
Part Number MT-915M12-NF

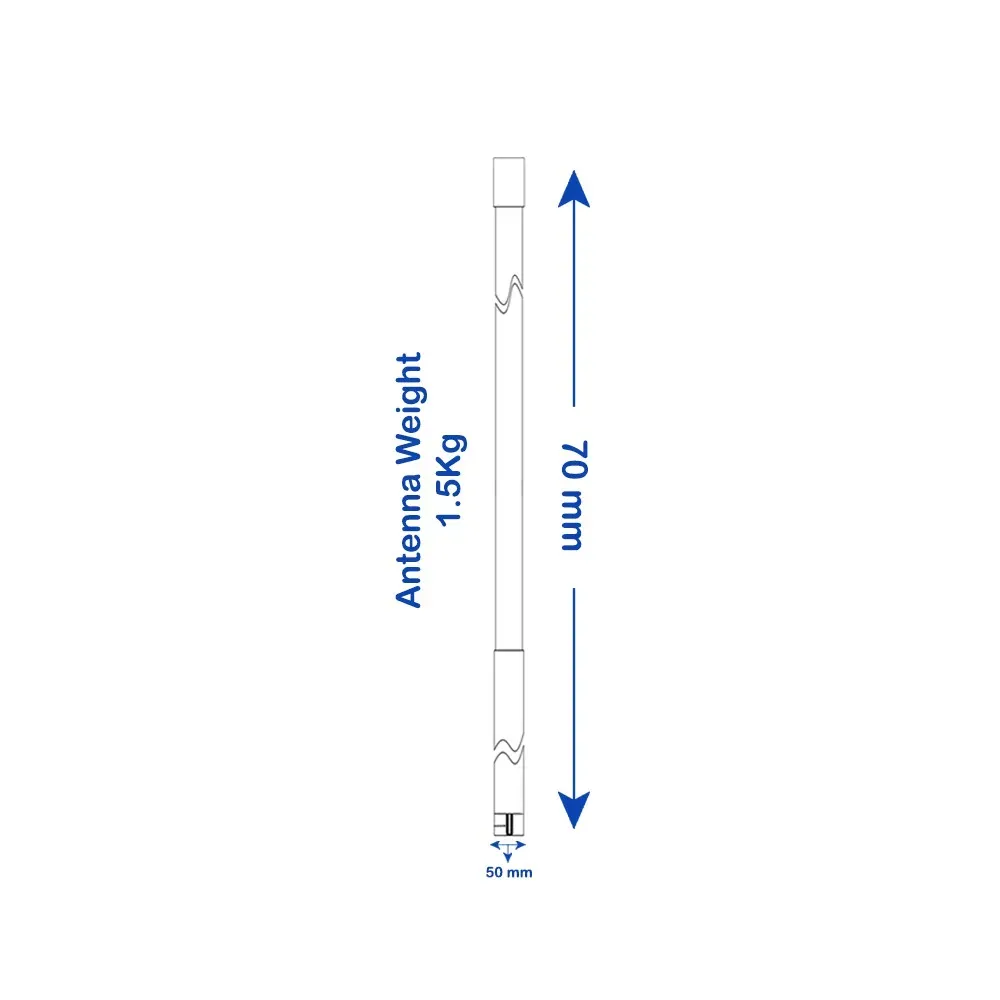

Dimension 2235x70x50mm
Weight 1.5 kg
Connector N-Female
Beam-width Horz.360 deg Vert. 7 deg



WhatsApp Chat
Skype
Product Part Number
MT-915M12-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range900 to 930 MHz
V.S.W.R (avg)1.5:1
Antenna TypeCollinear
Gain (Max)12dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beamwidth7 Deg
Horizontal Beamwidth360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
ConnectorN-Female
Mechanical
Dimension (LxWxH)2235x70x50mm
Antenna Weight1.5kg
ApplicationIndoor / Outdoor
Radom MaterialWhite Fiberglass
Parts MaterialAluminium
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherRoHS
