Product code: MT-915M06C-NF

915MHz 6dBi Omni Directional Outdoor Antenna Spring Designed (US915) N-Female

Product Overview
Part Number MT-915M06C-NF

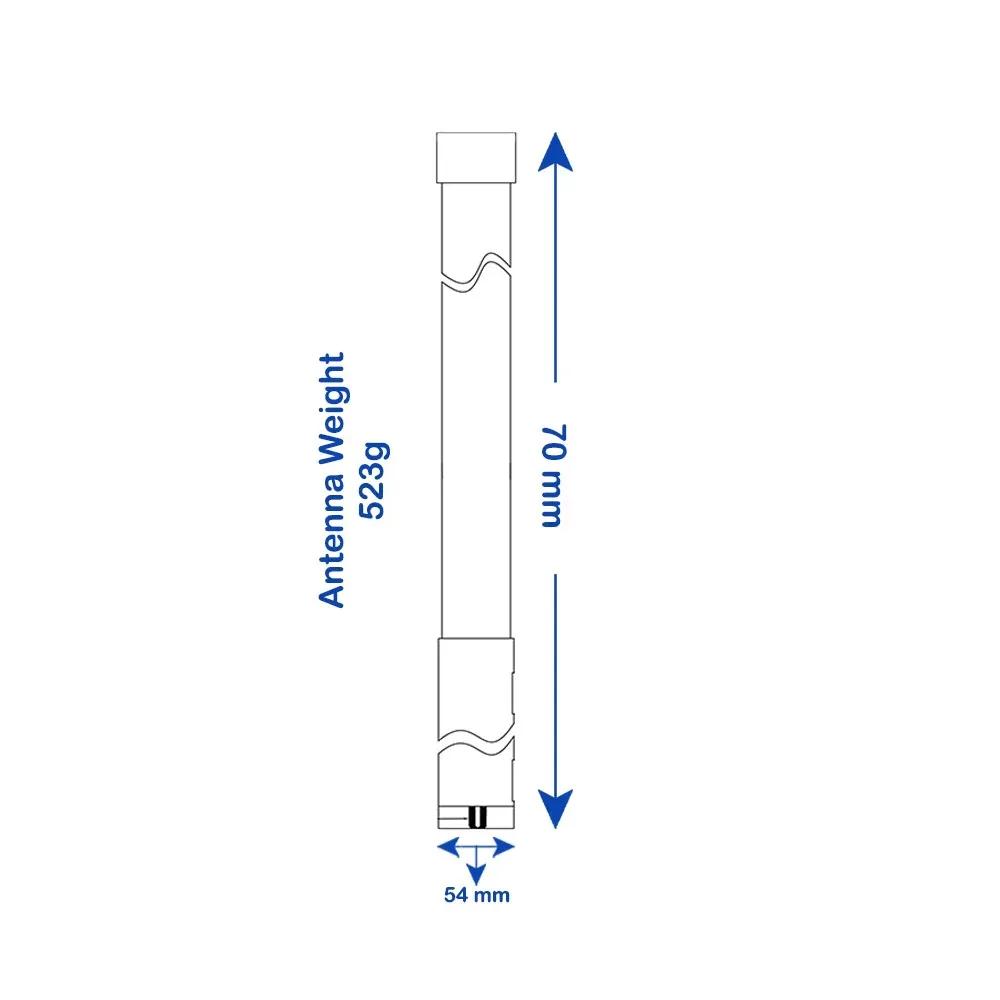

Dimension 915x70x54mm
Weight 0.53 KG
Connector  N-Female
Beam-width Horz.360 deg Vert.23 deg



WhatsApp Chat
Skype
Product Part Number
MT-915M06C-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range902 to 928MHz
V.S.W.R(AVG) 2:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)6 dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beam-width23 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length 865+/-30 mm
Diameter 70 x 54mm
Antenna Weight  523 g
Accessories 70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminum
Mount StylePole Mount / Wall Mount
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherCE, FCC, RoHS
