Product code: MT-DTA70N
920～925MHz Cavity Band Pass Filter
- P/N：MT-DTA70N
- Pass Band Frequency:920～925MHz
- inhibition：≥40dB
- Insertion loss：≤3.0dB
Product Part Number
MT-DTA70N
Electrical & Mechanical Specification
| Serial | Parameters | |
|---|---|---|
| 1 | Center Frequency(F0) | 922.5MHz |
| 2 | Pass Band Frequency | 920～925MHz |
| 3 | Insertion Loss | ≤3.0dB |
| 4 | Ripple | ≤1.5dB |
| 5 | Return Loss | ≥18dB |
| 6 | Stop Band Rejection | ≥40dB @ Fc±5MHz (DC～915MHz、930～1500MHz) |
| 7 | Impedance | 50 ohms |
| 8 | Surface Finish | Black Paint |
| 9 | Power Handling | ≤10W |
| 10 | Connectors | N-Female |

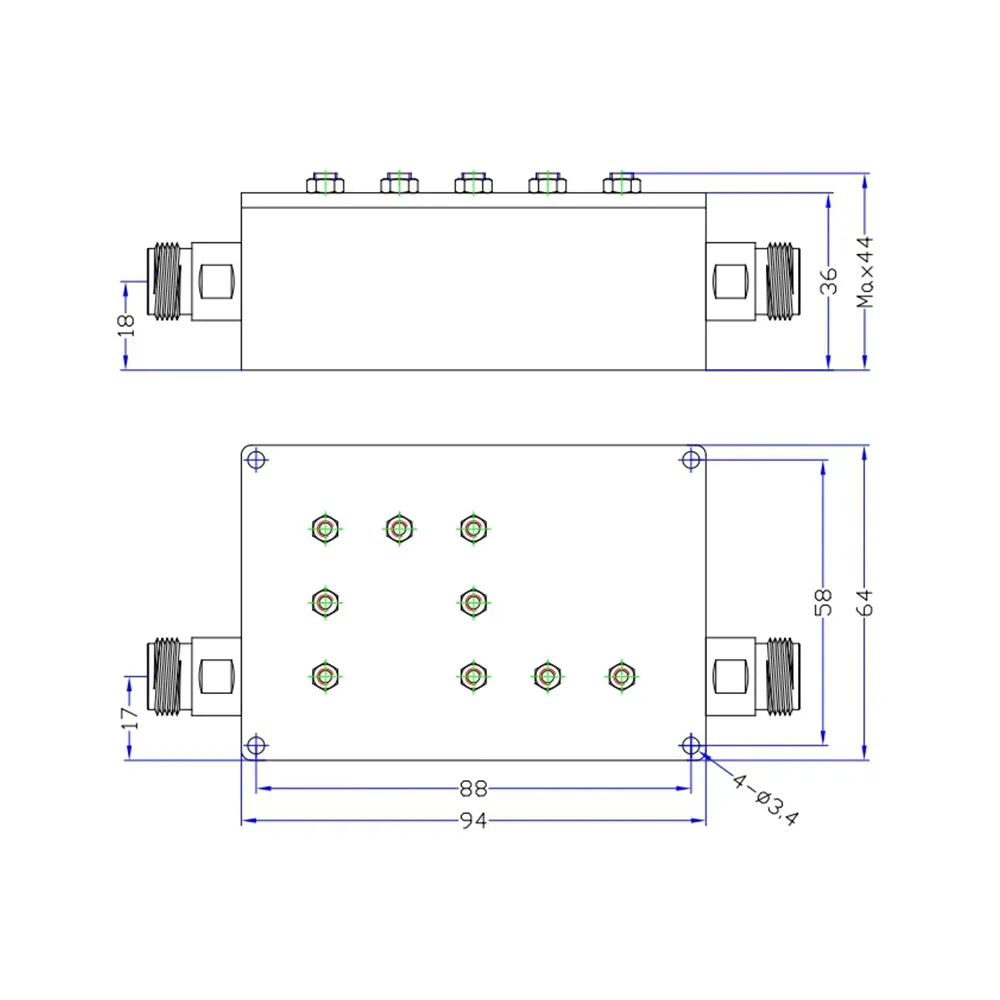

| 11 | Configuration | As Below (Size Unit: mm) |
