Product code: MT-923M06-NF

923MHz 6dBi Omni Directional Outdoor Antenna (AS923) N-Female

Product Overview
Part Number MT-923M06-NF
Dimension 1474.45±5mmx70x54mm
Weight 685.61g
Connector  N-Female
Beam-width Horz.360 deg Vert.13 deg



WhatsApp Chat
Skype
Product Part Number
MT-923M06-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range917 to 928MHz
V.S.W.R (MAX)922-923MHz: 1.5:1
917-921/ 924-928MHz: 2.0:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (Avg)6 dBi
PolarizationVertical
Maximum Power120 Watts
Vertical Beamwidth (AVG)13 deg
Horizontal Beamwidth (AVG)360 deg
Impedance50 Ohm
Antenna DesignDipole array
Internal MaterialCooper
ConnectorN-Female
Mechanical

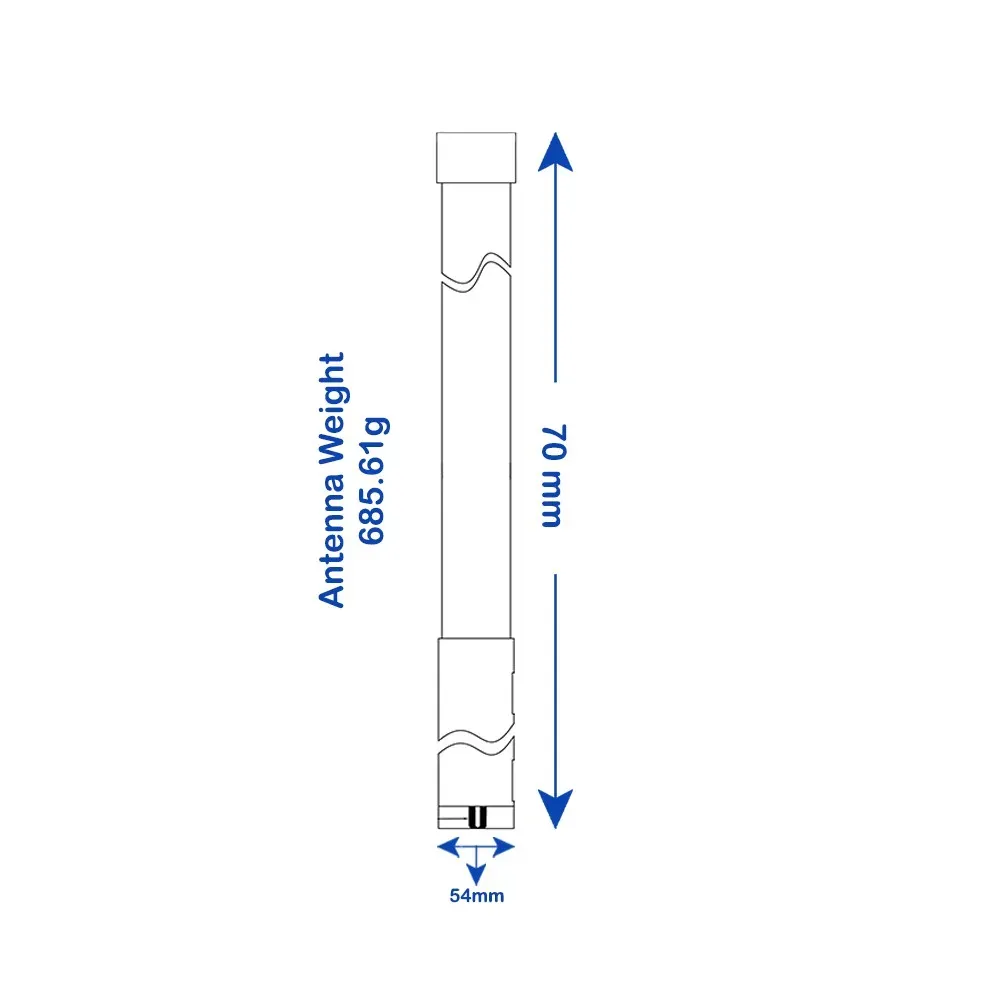

Length1474.45±5mm
W x H70x54mm
Antenna Weight (N.W)685.61g
ApplicationIndoor / Outdoor
Radome MaterialWhite ABS + Fiberglass + UV
Mount StylePole Mount/ Wall mount
Parts MaterialAluminium
MountingStainless Steel and Aluminium
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherCE, FCC, RoHS, WEEE
