Product code: MT-DTA892X
925-960MHz Cavity Band Pass Filter
- P/N：MT-DTA892X
- Pass Band Frequency：925-960MHz
- Stop Band Rejection：≥80dB
- Connectors：SMA-Female
Product Part Number
MT-DTA892X

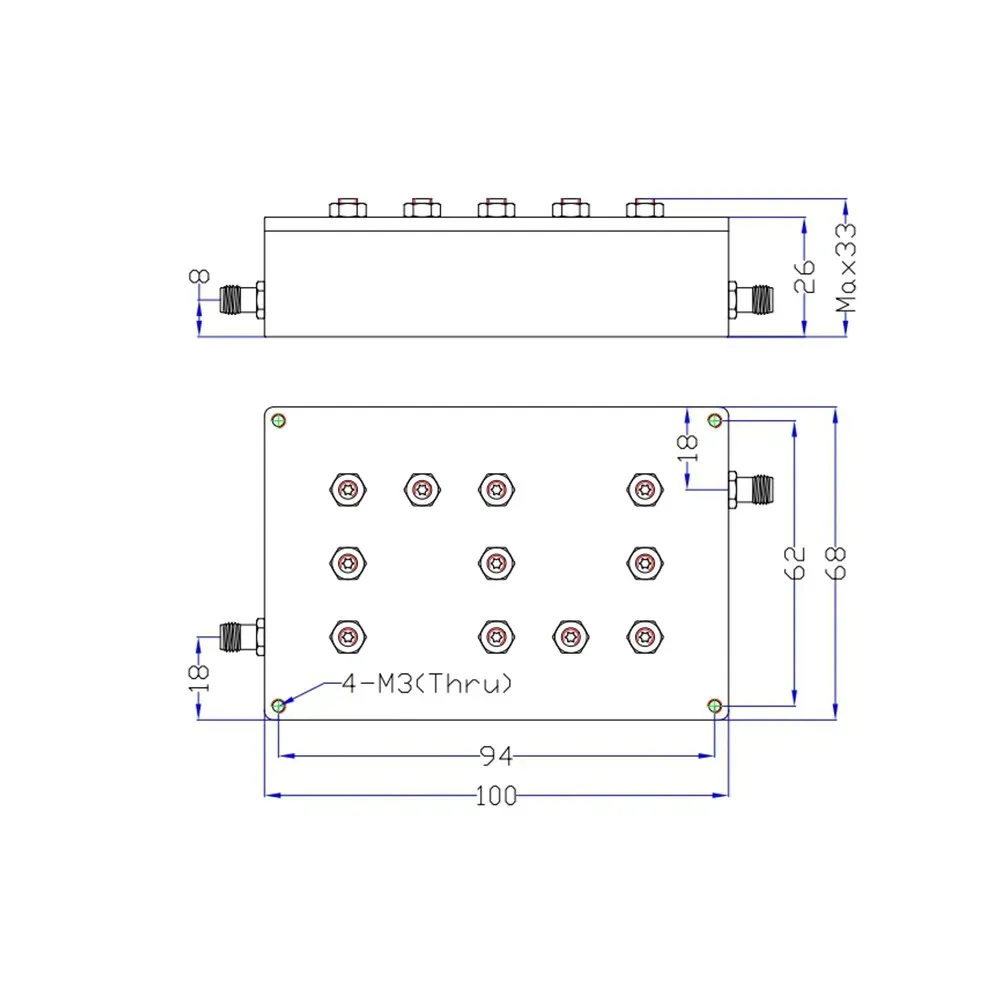

Electrical & Mechanical Specification
| S/N | Item | Parameters |
|---|---|---|
| 1 | Center Frequency(F0) | 942.5MHz |
| 2 | Pass Band Frequency | 925 ~ 960MHz |
| 3 | Pass Band Insertion Loss | ≤2.0dB |
| 4 | Pass Band Ripple | ≤1.0dB |
| 5 | Pass Band Return Loss | ≥20dB |
| 6 | Stop Band Rejection | ≥80dB @ 1010 ~ 2000MHz |
| 7 | Impedance | 50 Ohms |
| 8 | Power Handling | 20W Max. |
| 9 | Connectors | SMA-Female |
