Product code: MT-66-72GHz

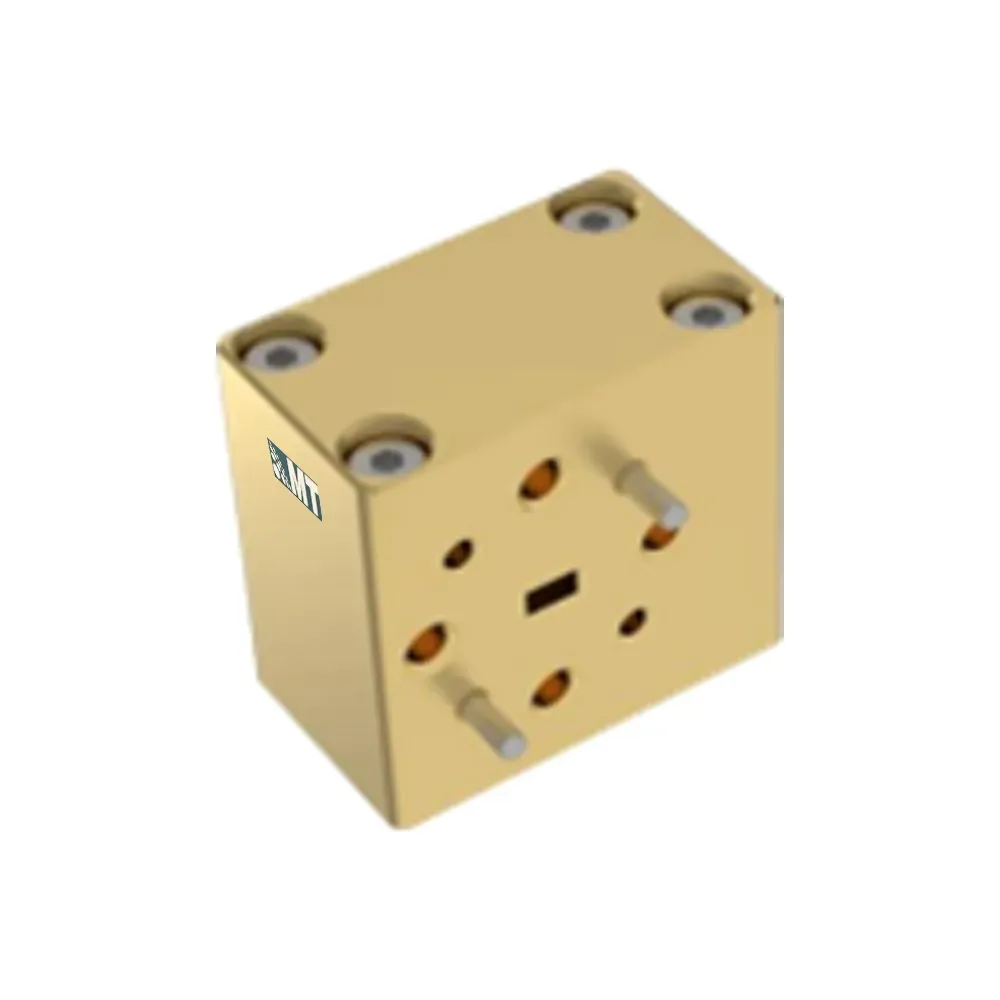

E Band Waveguide Isolators
| Model:MT-66-72GHz |
| High frequency, ultra-bandwidth |
| High coupling, high flatness |
| Low loss, anti-high power |
| Operating temperature:-55℃~85℃ |
Product Part Number
MT-66-72GHz
Electrical & Mechanical Specification
| Performance Specifications | |
|---|---|
| Parameter | Specifications |
| Frequency | 66GHz~72GHz |
| VSWR | ≤1.35 |
| Positive loss | ≤0.6dB |
| Reverse loss | ≤18dB |
| Power | ≤5W |
| Isolation | ≥18dB |
| Interface Type | WR12 |
