Product code: MT-Z4-OA500L01

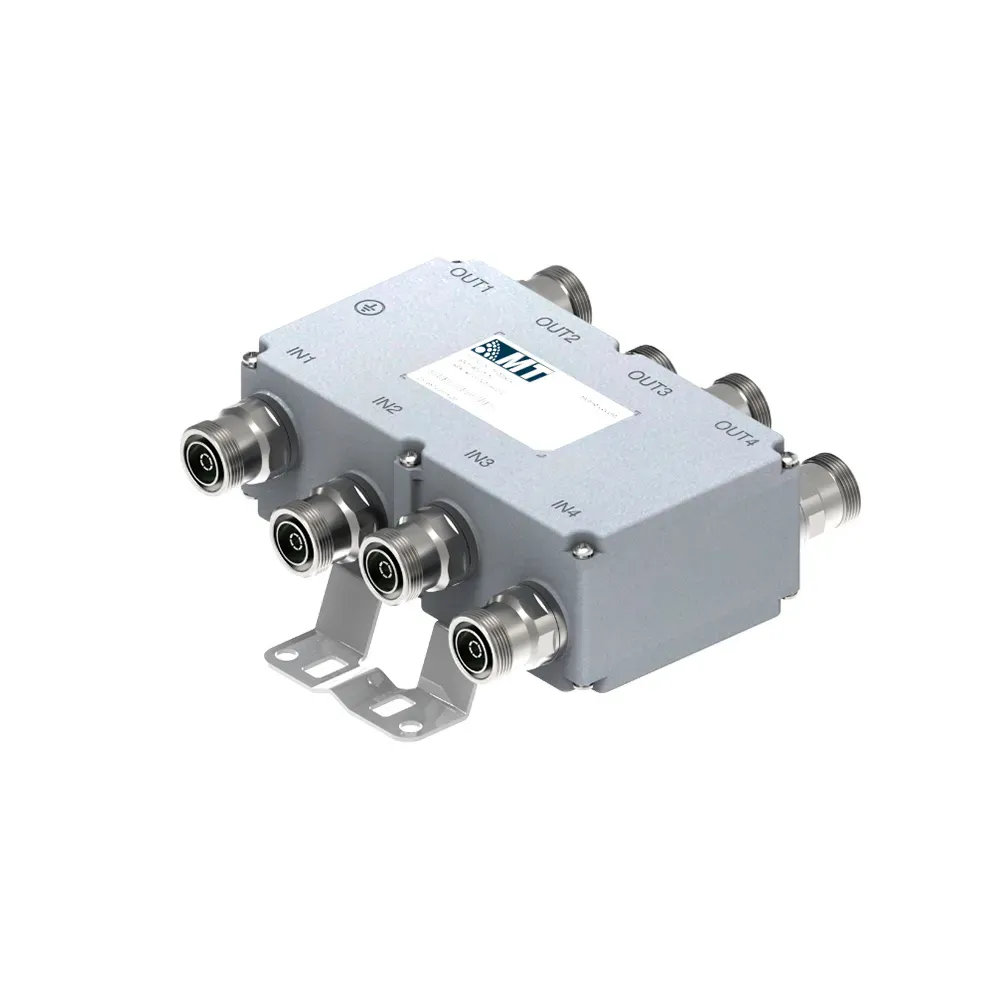

Hybrid Coupler 617-3800 MHz
| Description | Hybrid Coupler 617-3800 MHz |
| Part No. | MT-Z4-OA500L01 |
| Frequency Range (MHz) | 617-3800 |
| Connector Type | Din Female/4.3-10 Female |
Product Part Number
MT-Z4-OA500L01
Electrical & Mechanical Specification
| Model No. | MT-Z4-OA500L01 | |
|---|---|---|
| Intermodulation @2x43dBm(dBc) | -155 | |
| Dimension (L x W x H in mm) | 118x195x70 | |
| Connector Type | Din Female/4.3-10 Female | |
| Frequency Range (MHz) | 617-3800 | |
| Max. input power (W/Port) | 1500 | |
| Power Handling (W) | 500 | |
| Description | 4-in-4-out Wideband Hybrid Coupler |
Request a Quote
Other Inquiries
Please send purchase request at sales@mtsrl.in
