Product code: MT-R4-ON200L

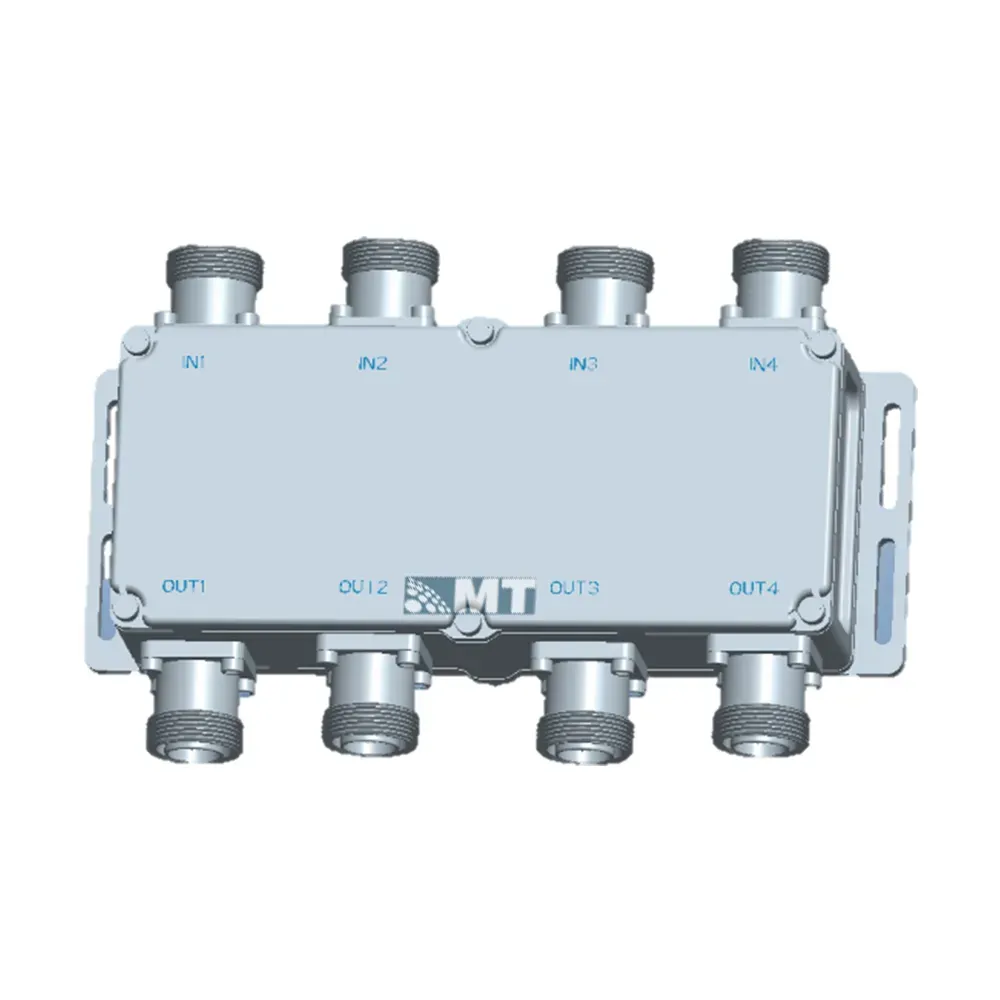

Hybrid Coupler 698-2700 MHz
| Description | Hybrid Coupler 698-2700 MHz |
| Part No. | MT-R4-ON200L |
| Frequency Range (MHz) | 698-2700 |
| Connector Type | Din Female/N-Female |
Product Part Number
MT-R4-ON200L
Electrical & Mechanical Specification
| Model No. | MT-R4-ON200L | |
|---|---|---|
| Intermodulation @2x43dBm(dBc) | -150 | |
| Dimension (L x W x H in mm) | 250x100x60, 250x100x54 | |
| Connector Type | Din Female/N-Female | |
| Frequency Range (MHz) | 698-2700 | |
| Max. input power (W/Port) | 1000 | |
| Power Handling (W) | 200 | |
| Description | 4-in-4-out Wideband Hybrid Coupler |
Request a Quote
Other Inquiries
Please send purchase request at sales@mtsrl.in
