Product code: MT-27-32GHz

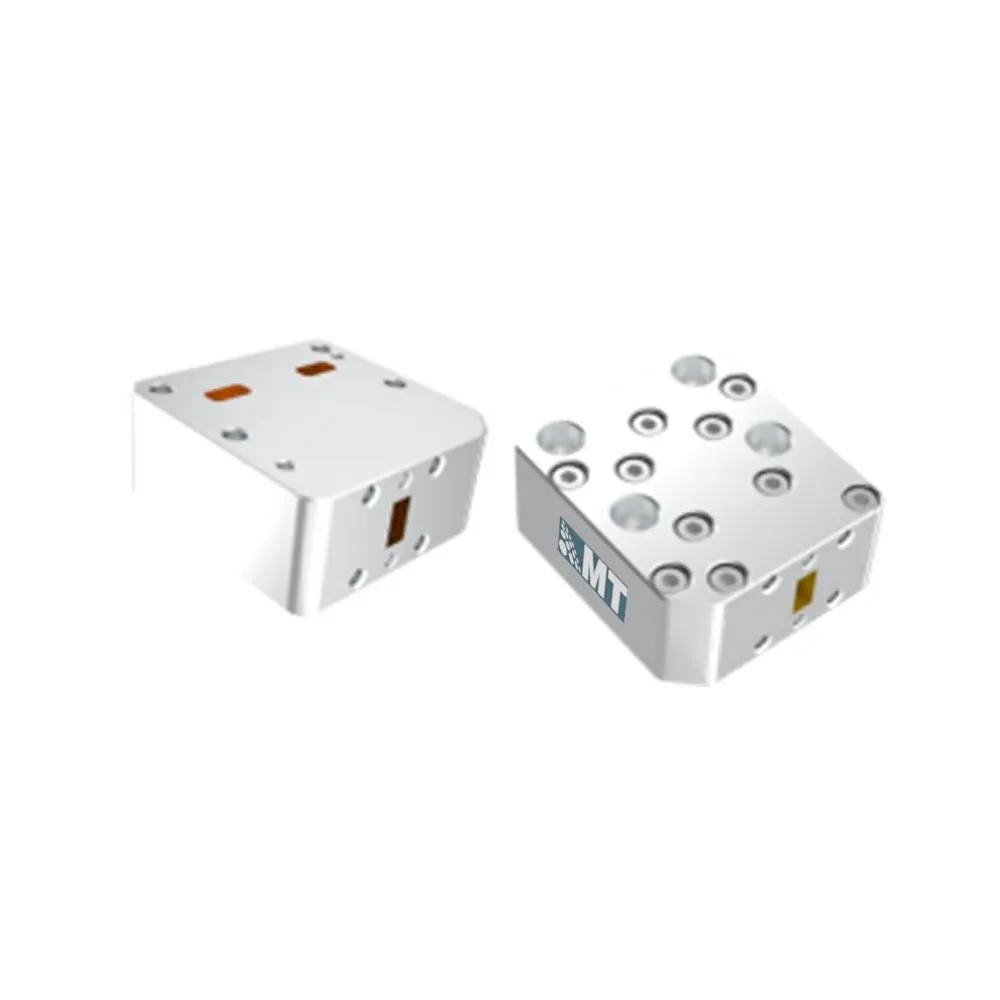

Ka High-power Waveband 3dB-90 °Waveguide Bridge
| Model:MT-27-32GHz |
| High flatness |
| Low loss, anti-high power |
| Operating temperature:-55℃~85℃. |
Product Part Number
MT-27-32GHz
Electrical & Mechanical Specification
| Performance Specifications | |
|---|---|
| Parameter | Specifications |
| Frequency | 27GHz~32GHz |
| VSWR | ≤1.35 |
| Insertion Loss | ≤3.3dB |
| Average Power | ≥80W |
| Amplitude balance | ≤±0.35dB |
| Phase balance | ≤±3 ° |
| Isolation | ≥18dB |
| Interface Type | WR28 |
