Product code: MT-13.75-14.5GHz-1

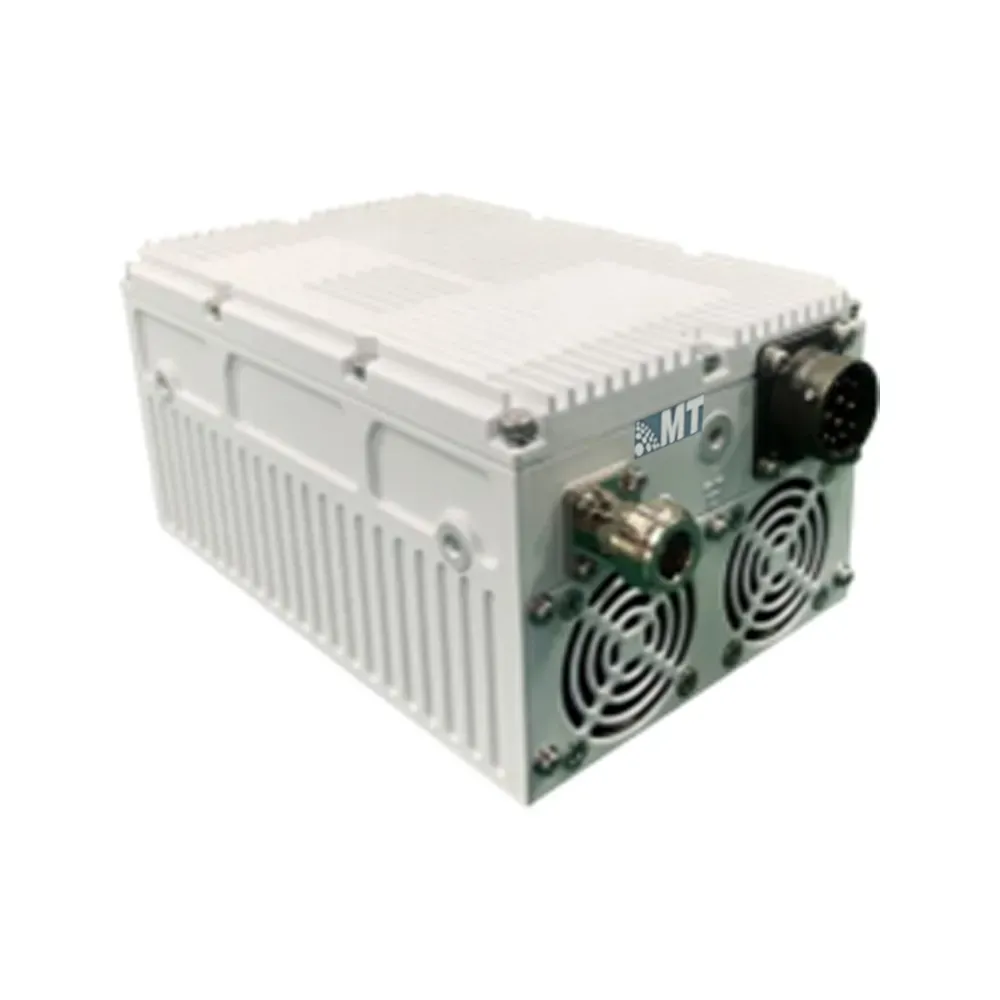

Ku Frequency Band 100W BUC

Model:MT-13.75-14.5GHz
Built-in receive rejection filter
Low power consumption, low spurious emissions, ultra-low phase noise
Built-in overcurrent protection function
Built-in temperature protection function
Operating temperature:-40℃~75℃
Storage temperature:-50℃~+85℃
WhatsApp Chat
Skype
Product Part Number
MT-13.75-14.5GHz-1
Electrical & Mechanical Specification
Performance Specifications
ParameterSpecifications
RF Frequency13.75/14GHz-14.5GHz
IF Frequency950MHz-1450/1700MHz or 2500-3000MHz
Lo Frequency12.8/13.5GHz or 11.5GHz
Reference Frequency10MHz 0±5 dBm,Input via IF Port
Small Signal Gain≥68dB
Gain Adjustment Range20dB @ 0.5dB Stepping
Gain Flatness±0.6dB/40MHz ±1.5dB/500MHz ±2dB/750MHz
Saturation Output Power≥50dBm
IM3≤-25dBc@ Rated power fallback 3dB
Phase Noise≤-65dBc/Hz@100Hz ≤-75dBc/Hz@1kHz ≤-85dBc/Hz@10kHz ≤-95dBc/Hz@100kHz
Input VSWR1.5:1
Output VSWR2:1*
Power Supply+48 V/DC
Power Consumption≤450W
Interface Definition
ParameterSpecifications
Size160mm×80mm×70mm
RF InputN-F
RF OutputBJ120
Monitoring methodEthernet port
Power supply/communication interfaceThree-hole Aviation Connector/Aviation Plug（RJ45）
CoolingForced air cooling
Waterproof ratingIP65
