Product code: MT-10.7-12.75GHz

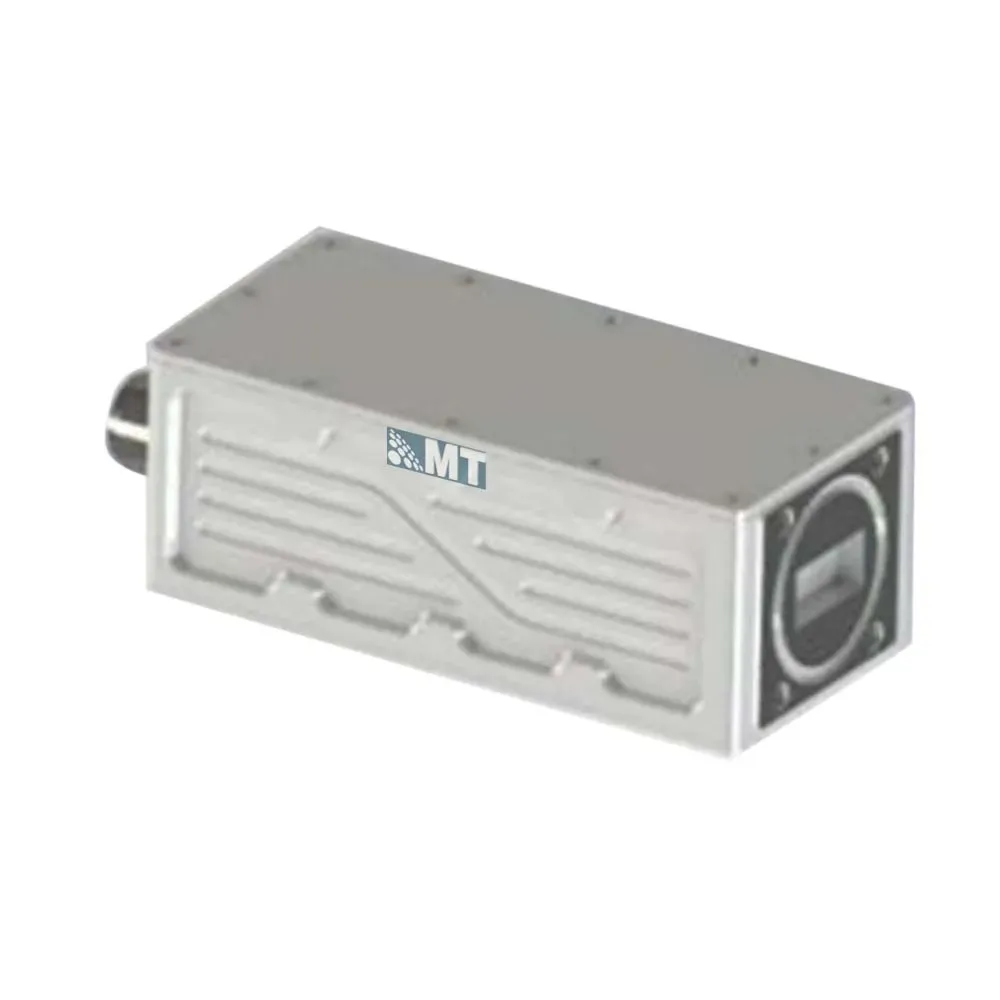

Ku Frequency Band LNB

Model:MT-10.7-12.75GHz
Low Noise Figure
Low Power Consumption
Low Spurious Signals
Ultra-Low Phase Noise
Overvoltage and Overcurrent Alarm and Protection Functions
Operating Temperature:-40℃~65℃
Storage temperature:-55℃~80℃
WhatsApp Chat
Skype
Product Part Number
MT-10.7-12.75GHz
Electrical & Mechanical Specification
Performance Specifications
ParameterSpecifications
RF Frequency10.7~ 12.75GHz
IF Frequency950~2150MHz OR 2500~3000MHz
Lo Frequency9.75/10/10.75/11.2/11.3GHz
Reference FrequencyExternal 10MHz or Internal
Gain40~60dB
Gain Flatness≤6dB
Output P- 115dBm Typical Value
Output IP325dBm Typical Value
Noise≤-75dBc/Hz@1kHz ≤-85dBc/Hz@10kHz ≤-95dBc/Hz@100kHz
Noise figure0.8dB Typical Value @25℃
Image suppression40dBm
Enter VSWR2.1*
Electricity24V
Consumption≤4W
Monitoring methodRS422
Interface Definition
ParameterSpecifications
Size150×60×45mm
RF inputWR75
IF outputSMA-K
Waterproof and dust-likeIP65
