Product code: MT-915M09-NF

LoRa 915MHz 9dBi Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-915M09-NF

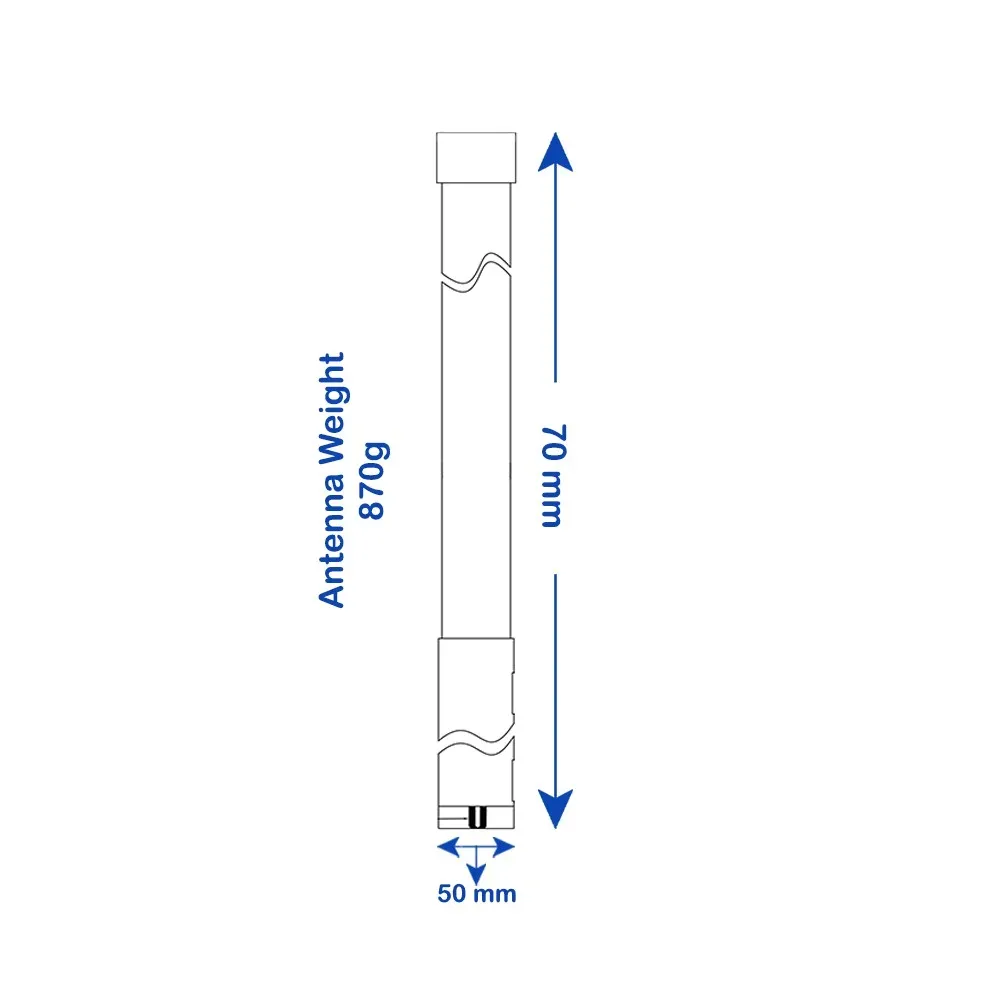

Dimension 1475x70x50mm
Weight 870g
Connector N-Female
Beam-width Horz.360 deg Vert.14 deg



WhatsApp Chat
Skype
Product Part Number
MT-915M09-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range902 to 928MHz
V.S.W.R (MAX)915MHz 1.5:1
902 and 928 MHz: <2.0
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)9dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beam-width14 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array
Internal MaterialCooper
ConnectorN-Female
Mechanical
Length (MAX)1475 +-5 mm
Diameter (MAX)70×50 mm
Antenna Weight (G.W)870 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radom MaterialWhite Fiberglass
Mount StylePole Mount/ Wall Mount
Parts MaterialAluminium
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-20 to +80
Operating Temperature-20 to +60
Operating Humidity10%~80% non-condensing
Storage Humidity5%~80% non-condensing
Safety, Emission and otherRoHS
