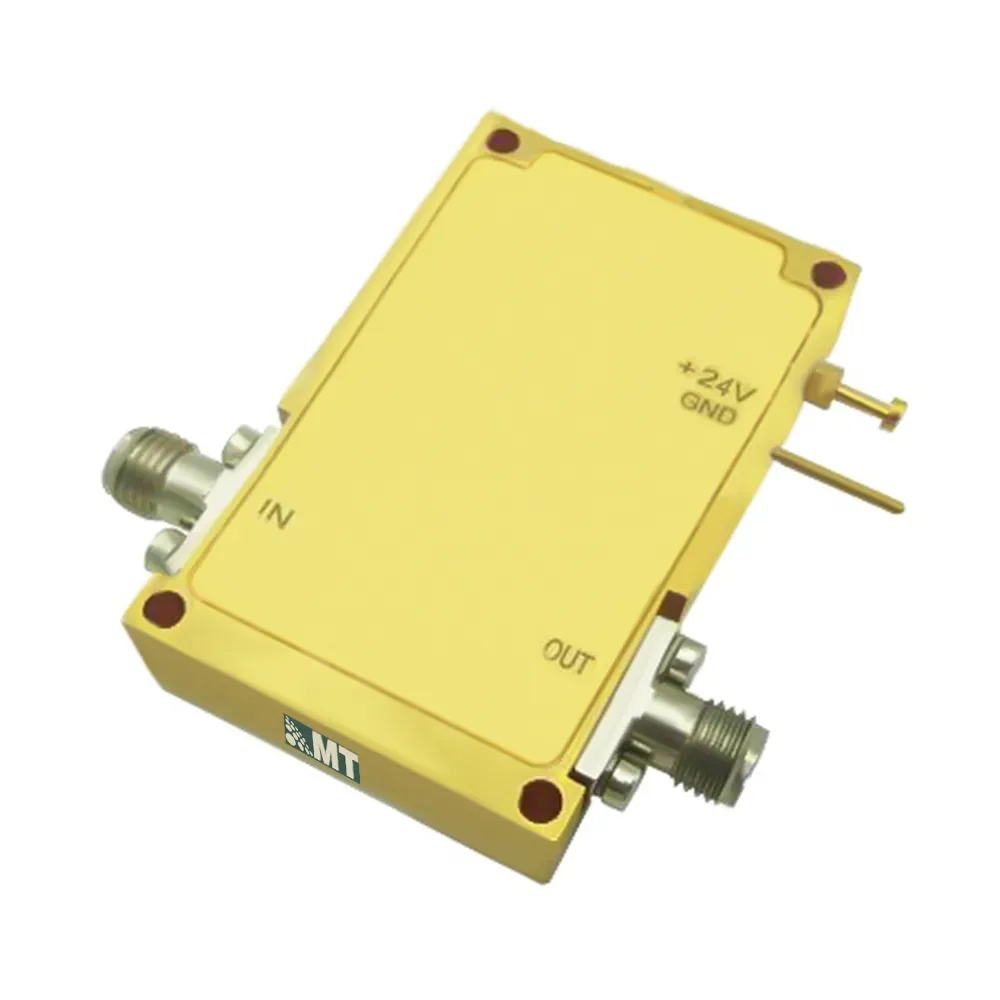

Product code: MT-10M40G-30-30

Low Noise Amplifier 0.01-18GHz, NF:3.0dB, Gain:30dB,P1dB:21dBm 18-40GHz,NF:5.5dB,Gain:29dB,P1dB:19dBm

Model: MT-10M40G-30-30
Ultra Wide Band: 0.01-40GHz
Gain: 30dB Typ@0.01-18GHz
Noise Figure: 3.0dB Typ@0.01-18GHz
Good Power and Gain Flatness
50 Ohm Matched Input / Output
WhatsApp Chat
Skype
Product Part Number
MT-10M40G-30-30
Electrical & Mechanical Specification

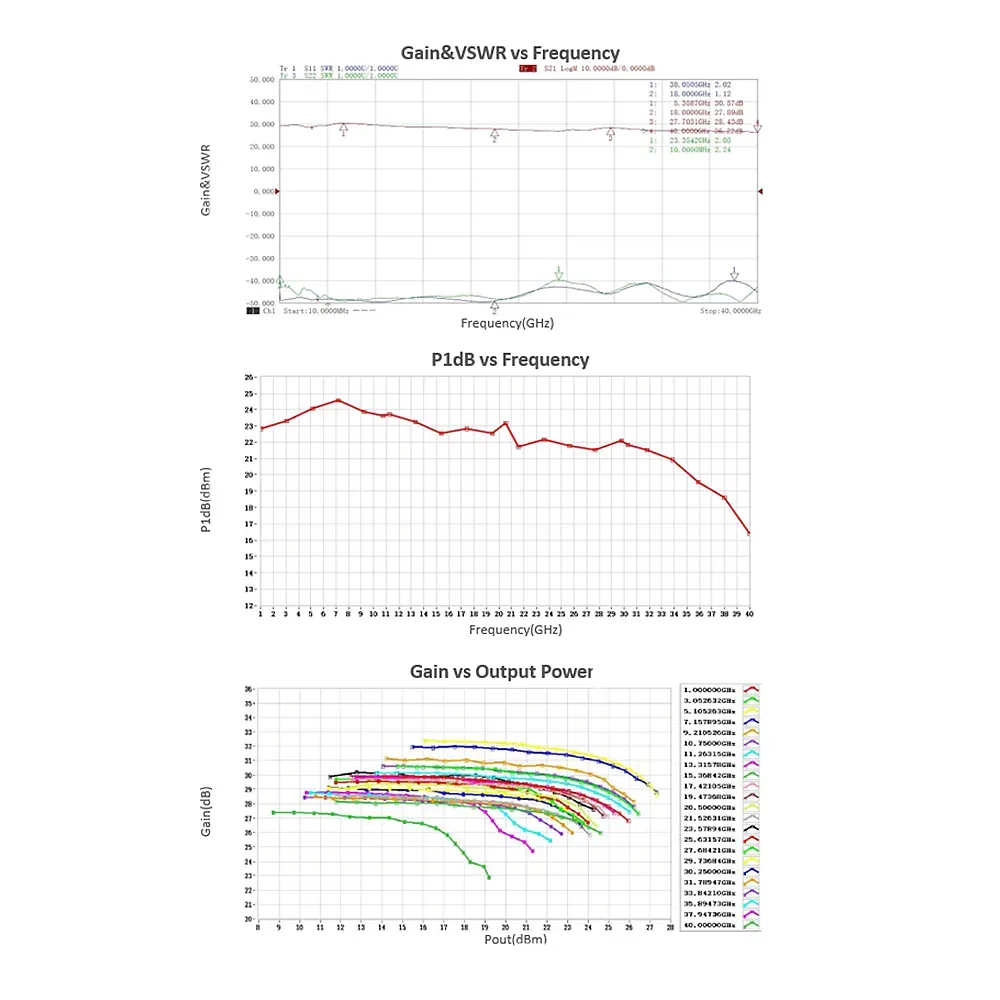

Electrical:
Frequency range0.01-1818-40GHz
Gain25302429dB
Gain Flatness±3±2.5dB
Noise Figure35.5dB
Output P1dB18211619dBm
Output Psat2321dBm
Output IP33128dBm
Input VSWR1.82:1
Output VSWR1.82:1
DC Voltage12V DC
DC Supply Current350400mA
Impedance50Ohms

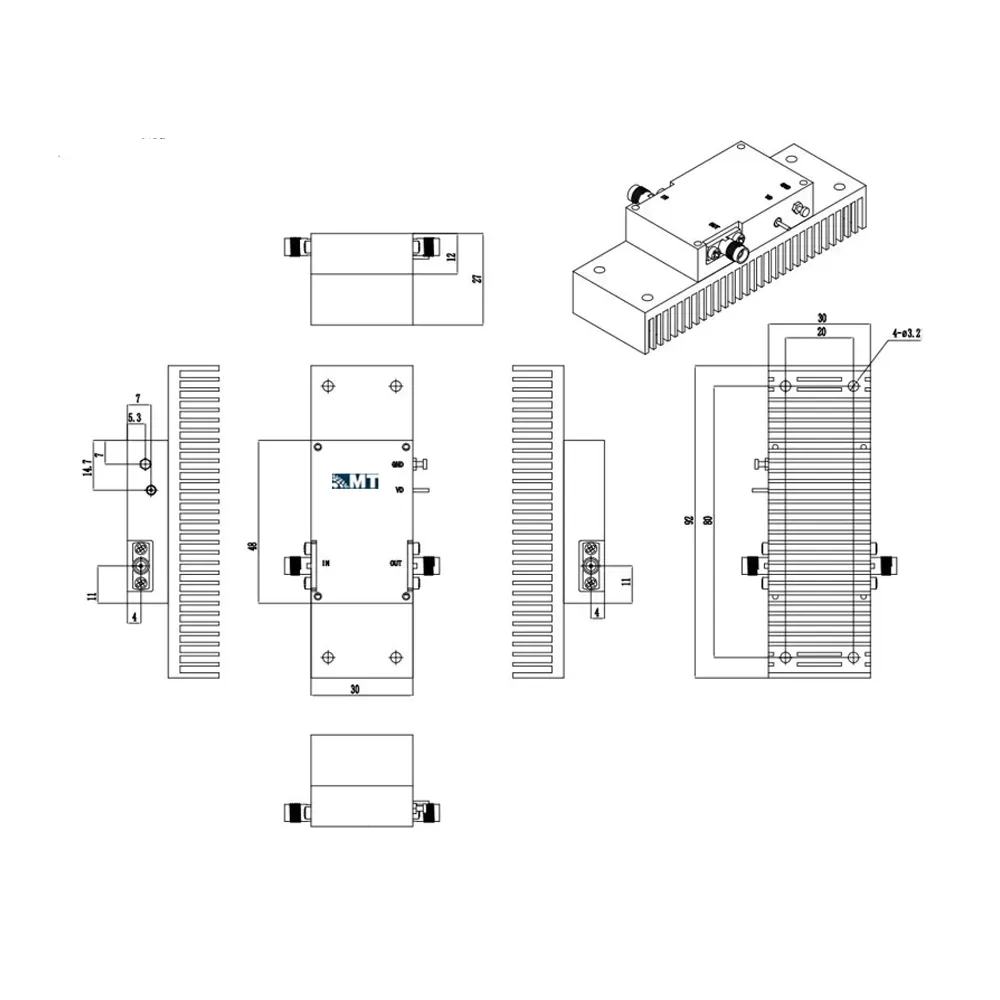

Mechanical:
ParameterValueUnits
Input /Output Connector2.92mm Female/2.92mm Female
DC BiasSolder Pin
Size30*48*12(Without Heatsink) 30*92*27(With Heatsink)mm
Weight40g
Environmental Conditions:
ParameterMinTypMax Units
Operating Temperature-45+85℃
Non-operating Temperature-55+125℃
Relative humidity95%
Altitude50,000feet
Shock / Vibration(MIL-STD-810F)25g rms (15 degree 2KHz) endurance, 1 hour per axis
Shock(non operating)20G for 11msc half sin wave,3 axis both directions
