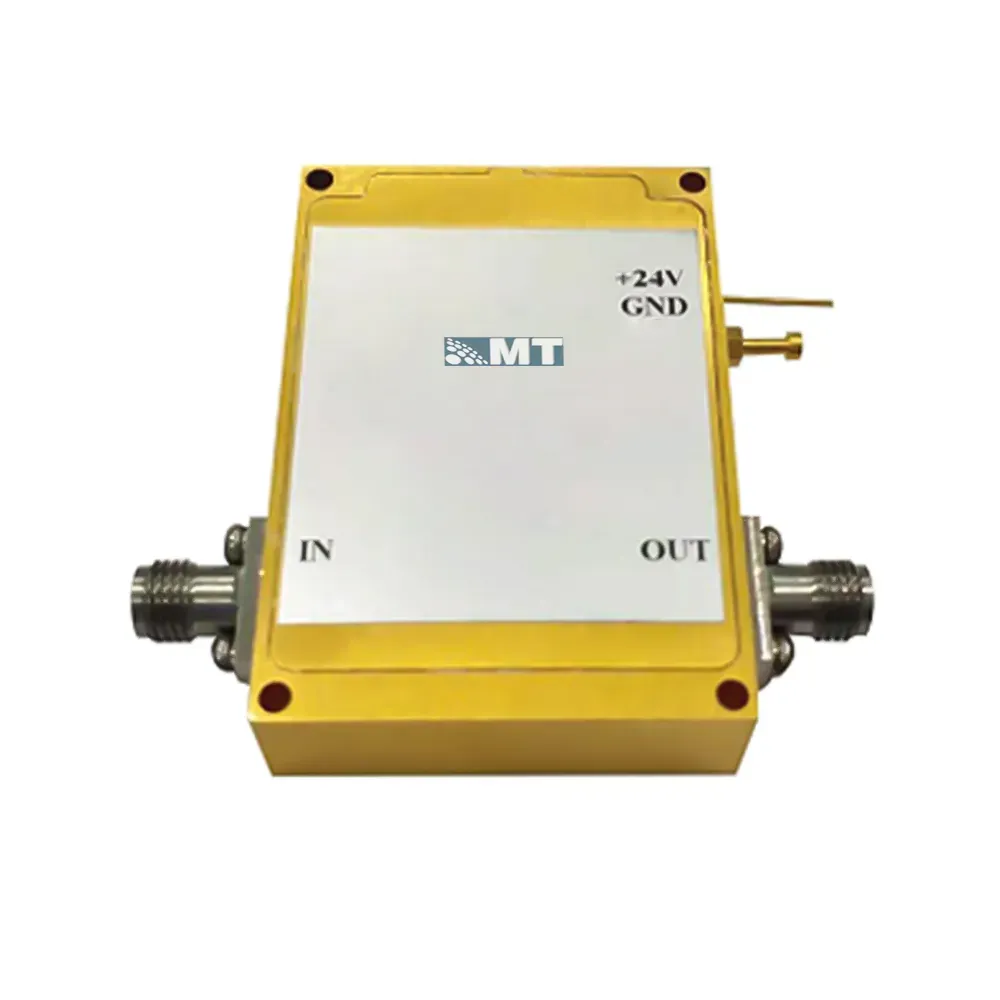

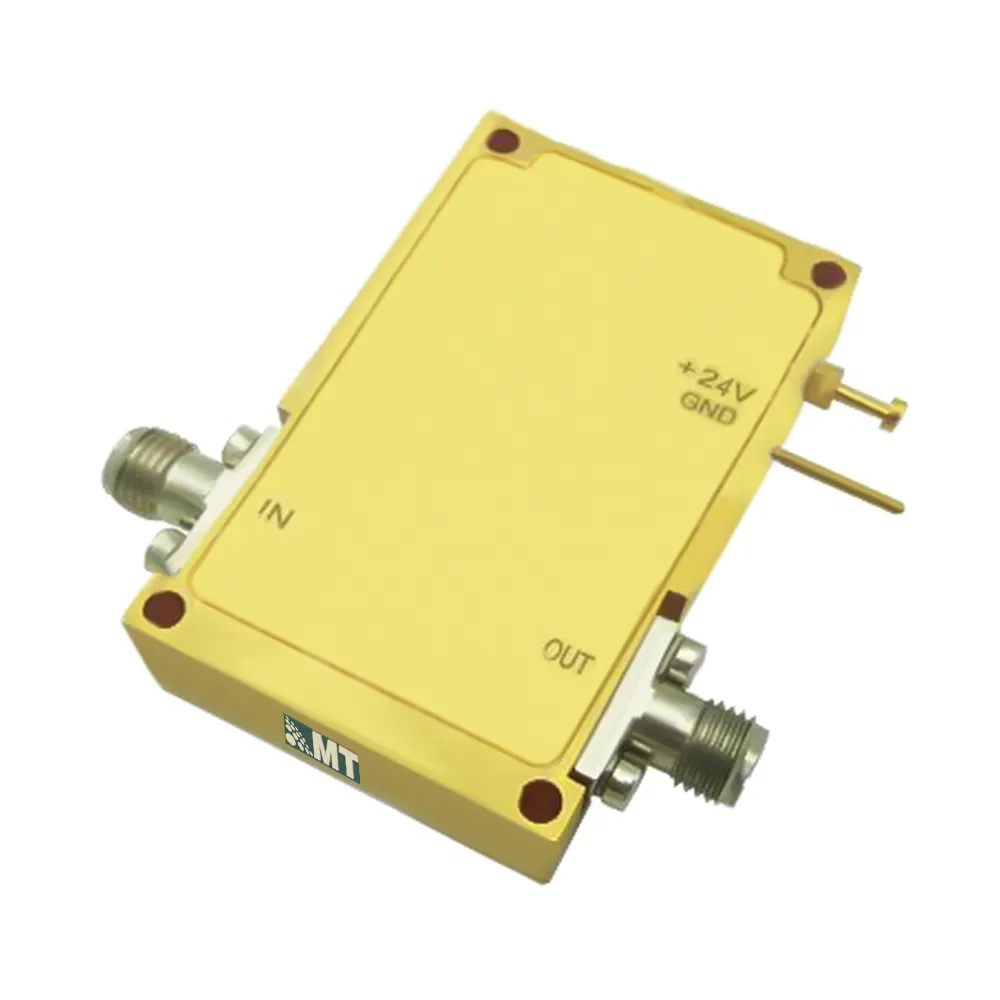

Product code: MT-0.01G26.5G-32-40
Low Noise Amplifier , 0.01-26.5GHz, NF:4.0dB, Gain:32dB,P1dB:20dBm
| Model:MT-0.01G26.5G-32-40 |
| Ultra Wide Band:1-18GHz |
| Gain: 32dB Typ |
| Noise Figure: 4.0dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-0.01G26.5G-32-40

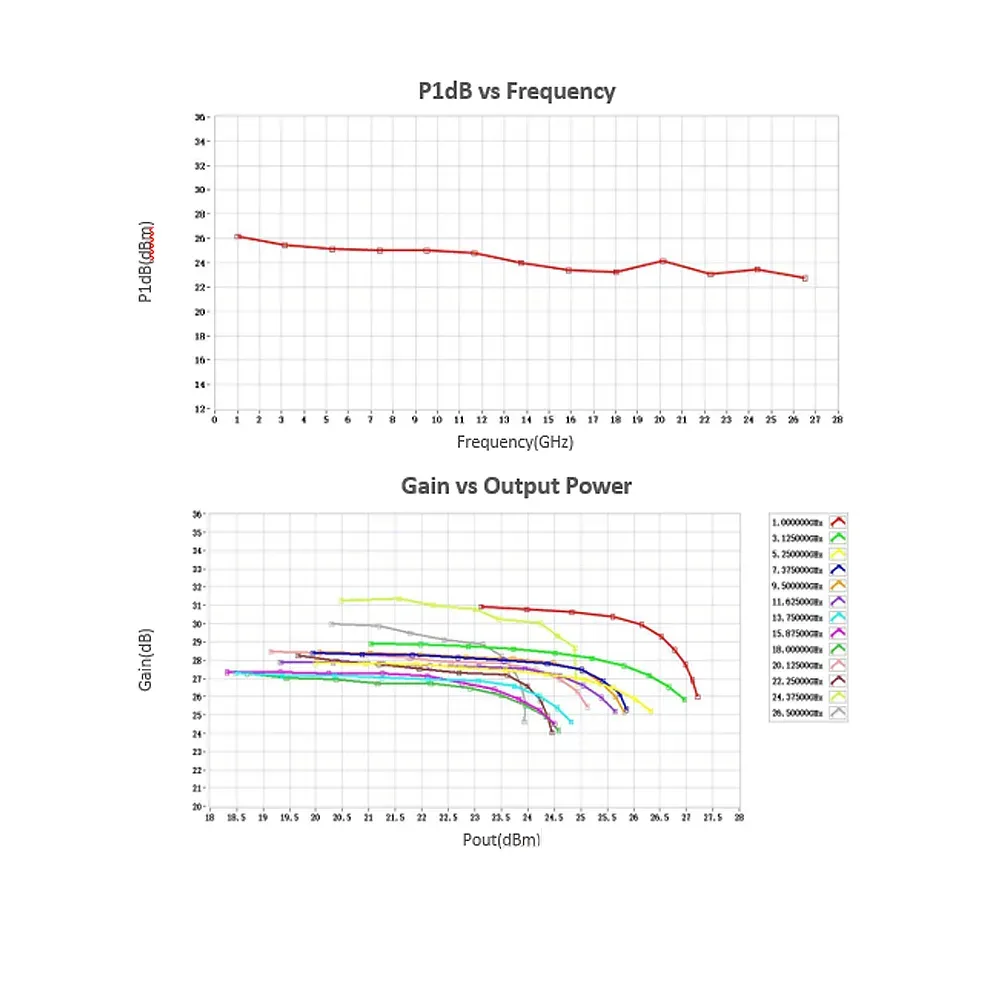

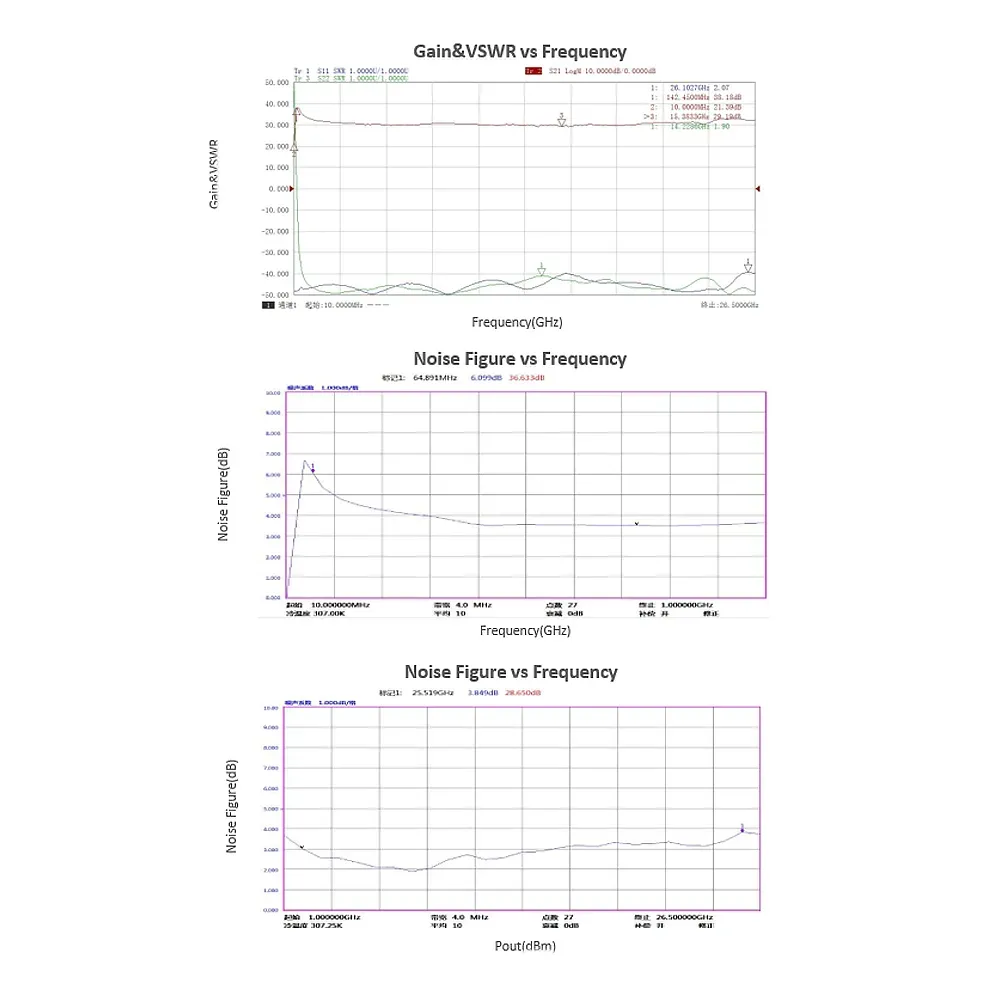

Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min | Typ | Max | Units |
| Frequency range | 0.01-26.5 | GHz | ||
| Gain | 27 | 32 | dB | |
| Gain Flatness | ±2.5 | dB | ||
| Noise Figure | 4 | 6 | dB | |
| Output P1dB | 18 | 20 | dBm | |
| Output IP3 | 22 | dBm | ||
| Input VSWR | 1.8 | :1 | ||
| Output VSWR | 1.8 | :1 | ||
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 360 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical: | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | 2.92 Female/2.92 Female | |||
| DC Bias | Solder Pin | |||

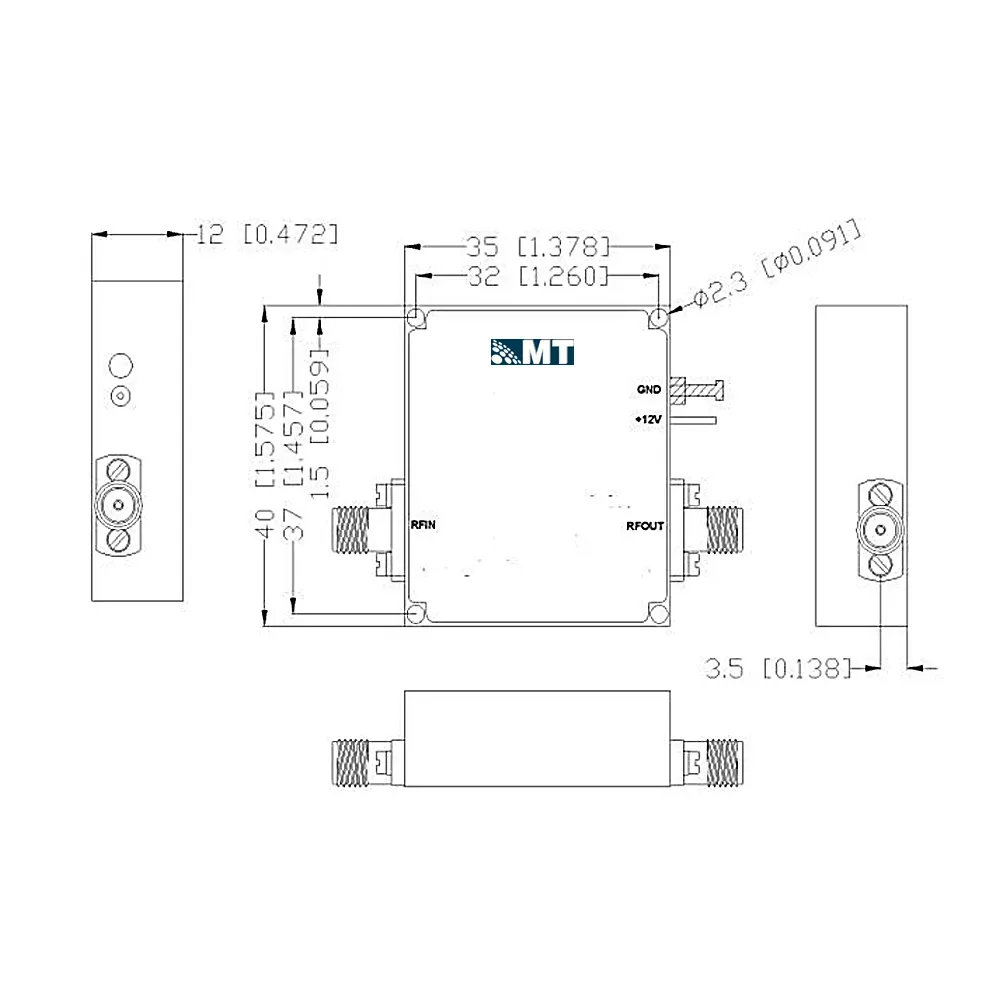

| Size | 40*35*12 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min | Typ | Max | Units |
| Operating Temperature | -40 | +85 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock(non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
