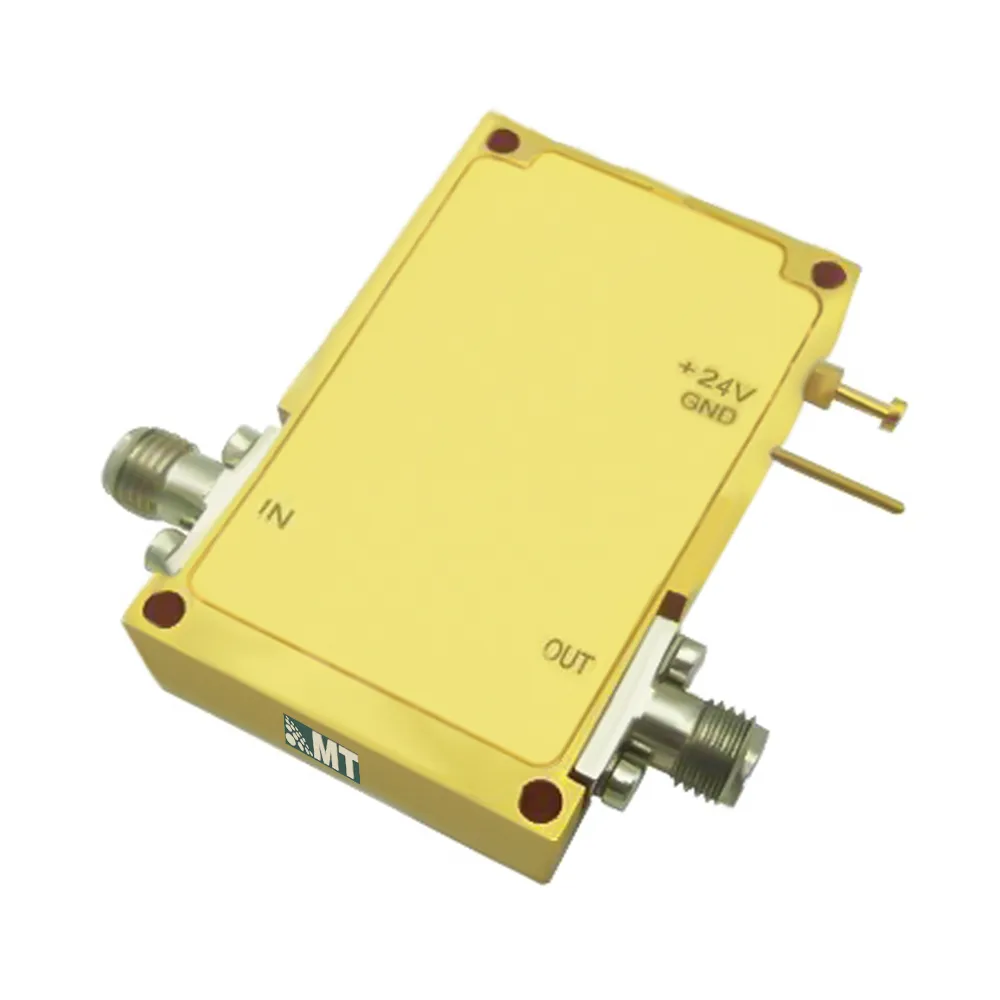

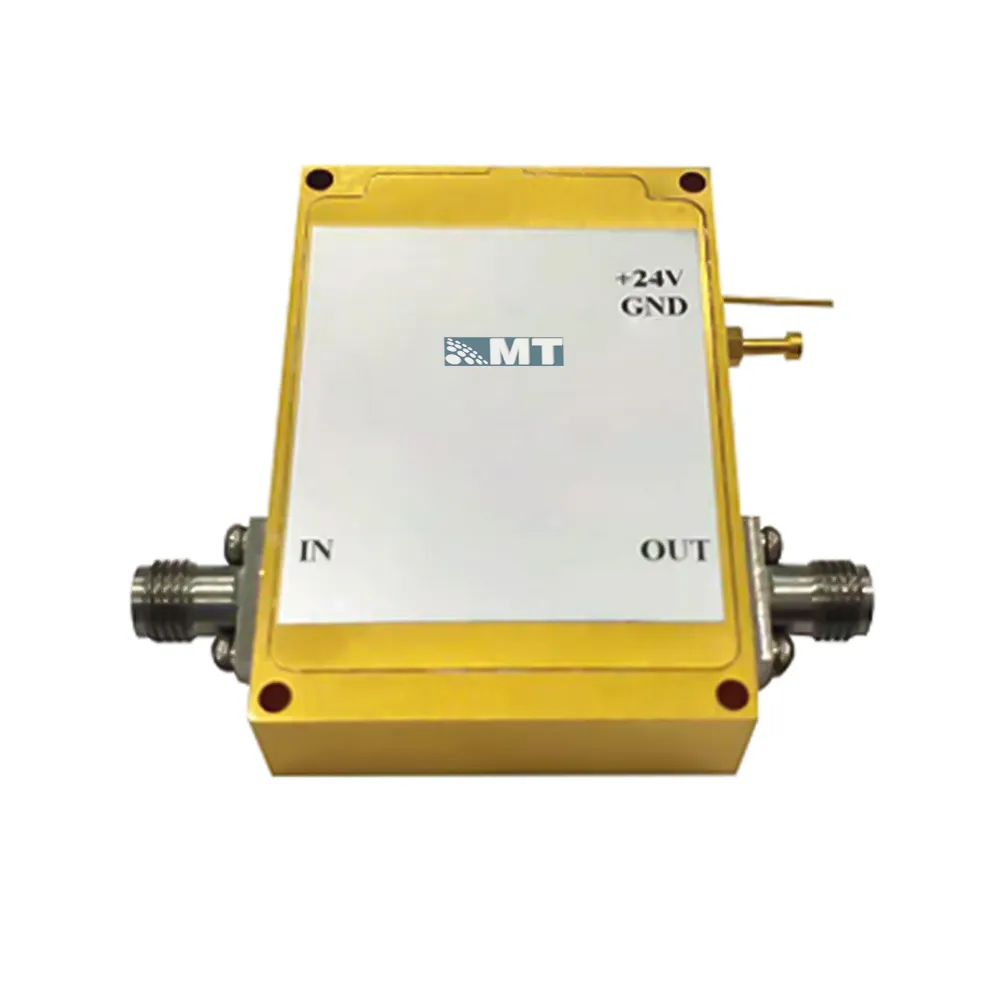

Product code: MT-1G26.5G-18-60
Low Noise Amplifier 0.1-26.5GHz, NF:6.0dB, Gain:18dB,P1dB:14dBm
| Model:MT-1G26.5G-18-60 |
| Ultra Wide Band:0.1-26.5GHz |
| Gain: 18dB Typ |
| Noise Figure: 6.0dB Typ |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Product Part Number
MT-1G26.5G-18-60

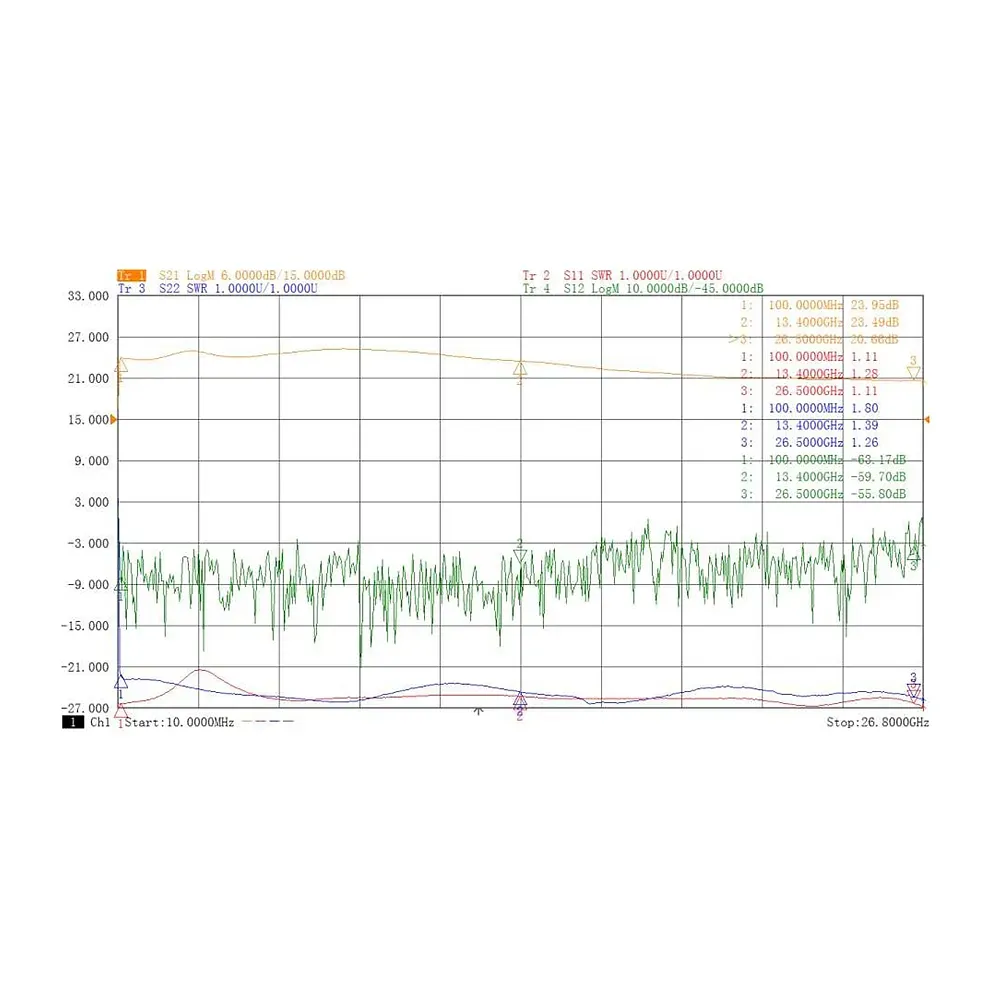

Electrical & Mechanical Specification
| Electrical: | ||||
|---|---|---|---|---|
| Parameter | Min. | Typ. | Max. | Units |
| Frequency range | 0.1-26.5 | GHz | ||
| Gain | 15 | 18 | dB | |
| Gain Flatness | ±2.0 | ±3.0 | dB | |
| Noise Figure | 6 | dB | ||
| P1dB | 14 | dBm | ||
| IP3 | 20 | dBm | ||
| spurious | -60 | dBc | ||
| Input VSWR | 1.8 | 2 | :1 | |
| Output VSWR | 1.8 | 2 | :1 | |
| DC Voltage | 12 | V DC | ||
| DC Supply Current | 200 | mA | ||
| Impedance | 50 | Ohms | ||
| Mechanical : | ||||
| Parameter | Value | Units | ||
| Input /Output Connector | SMA Female | |||
| Bias | Solder Pin | |||

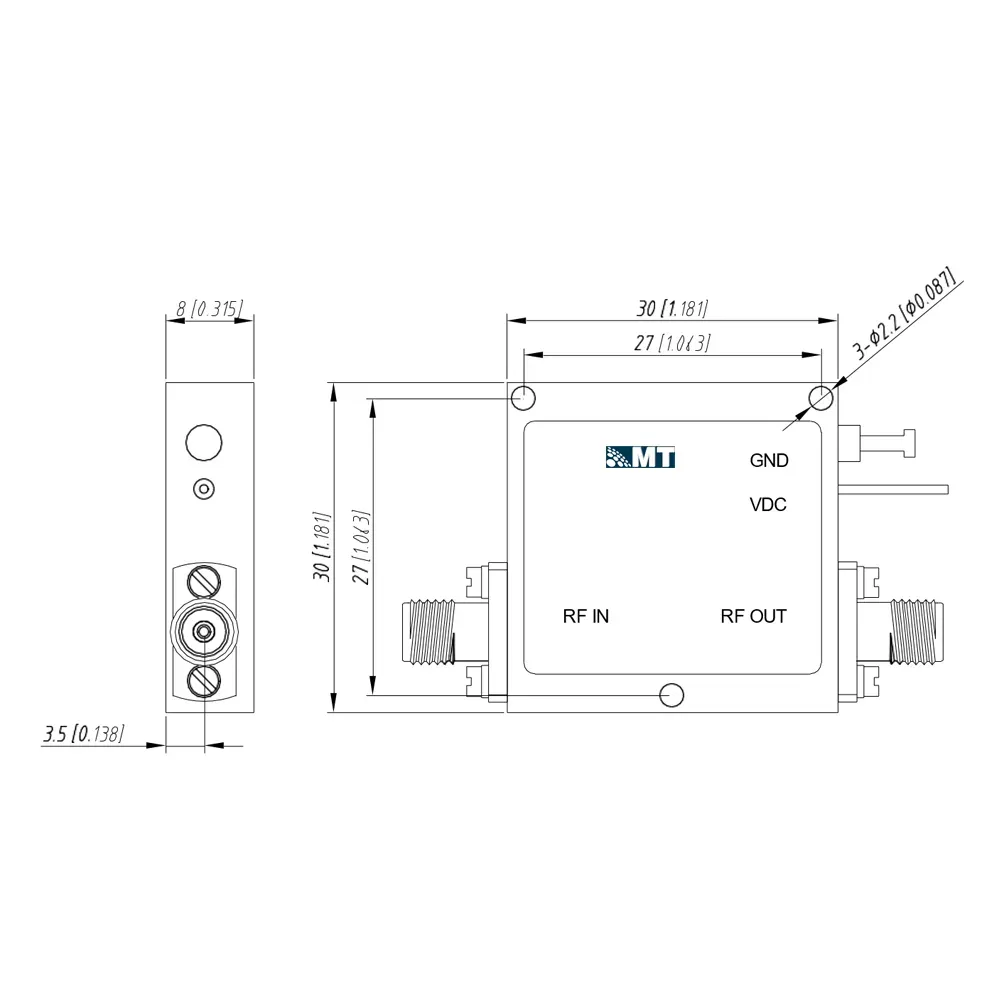

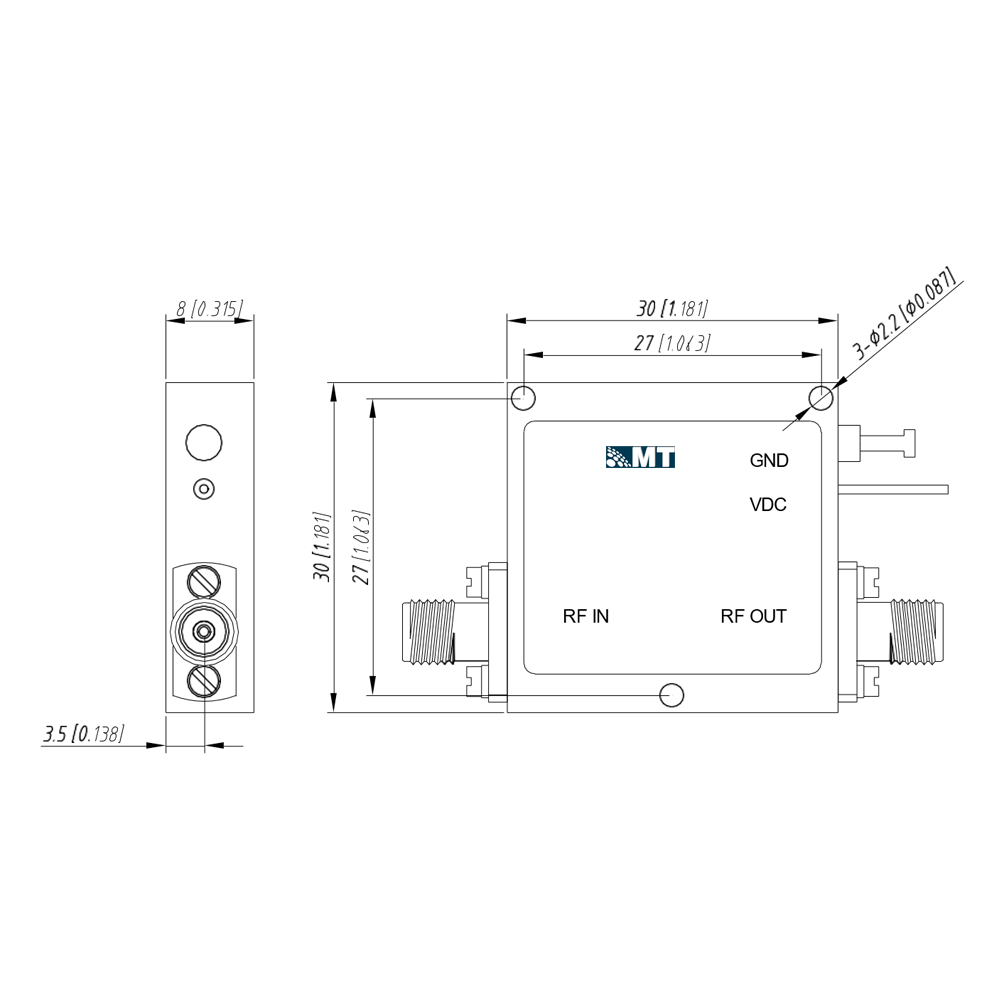

| Size | 30*30*8 | mm | ||
| Weight | / | g | ||
| Environmental Conditions: | ||||
| Parameter | Min. | Typ. | Max. | Units |
| Operating Temperature | -40 | +75 | ℃ | |
| Non-operating Temperature | -55 | +125 | ℃ | |
| Relative humidity | 95 | % | ||
| Altitude | 50,000 | feet | ||
| Shock / Vibration(MIL-STD-810F) | 25g rms (15 degree 2KHz) endurance, 1 hour per axis | |||
| Shock (non operating) | 20G for 11msc half sin wave,3 axis both directions | |||
