Product code: MT-0.1G3G-28-10

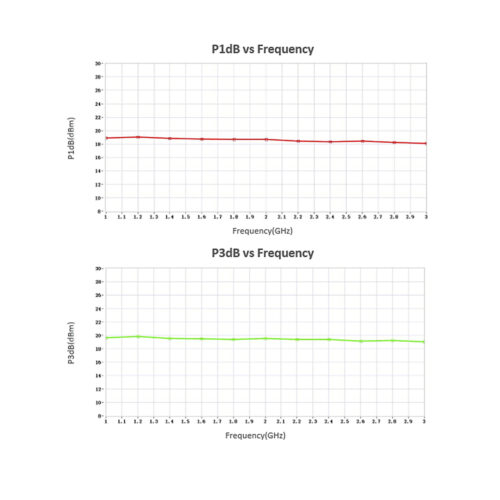

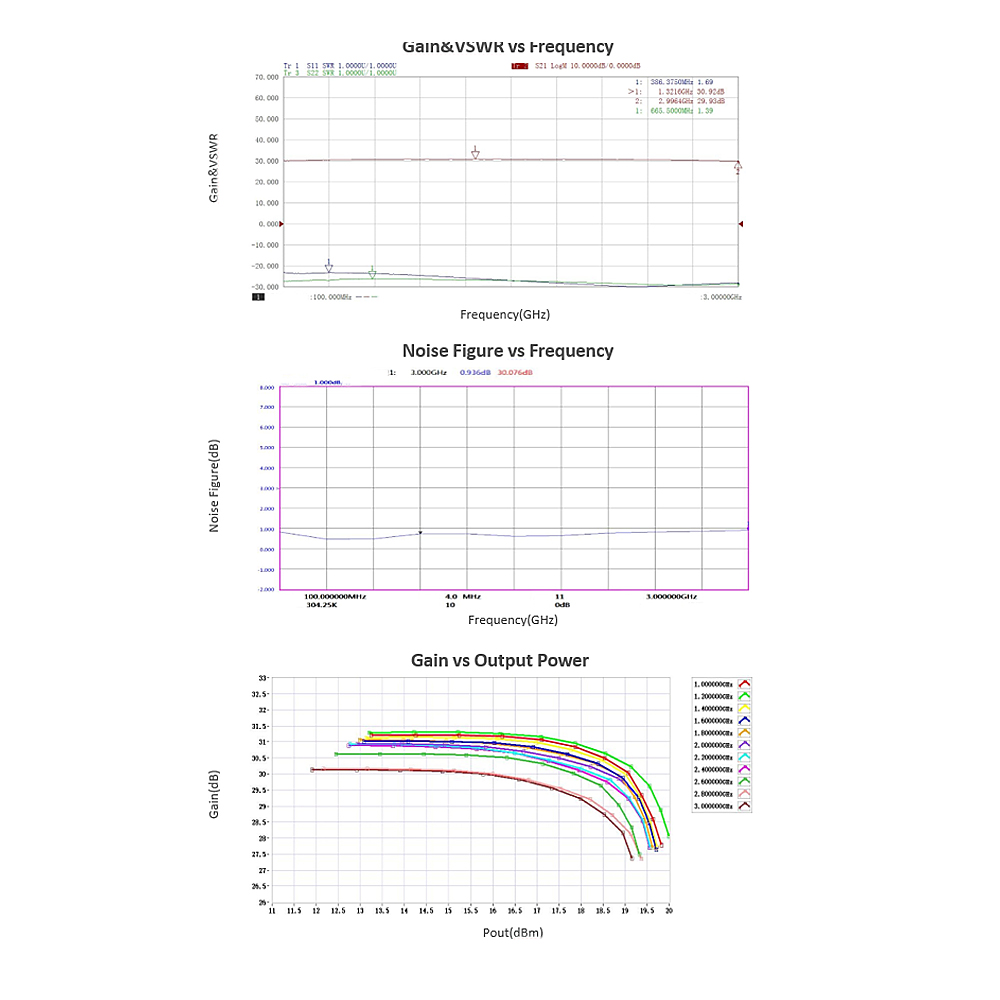

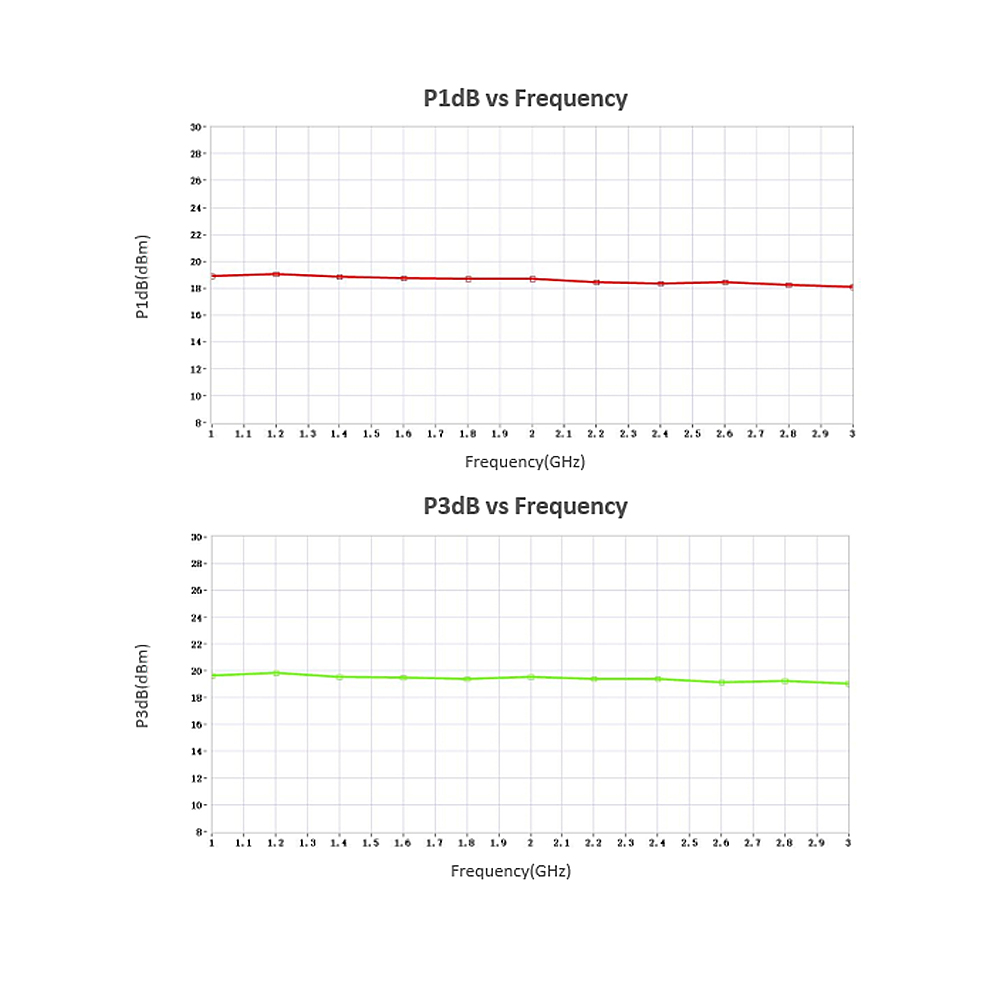

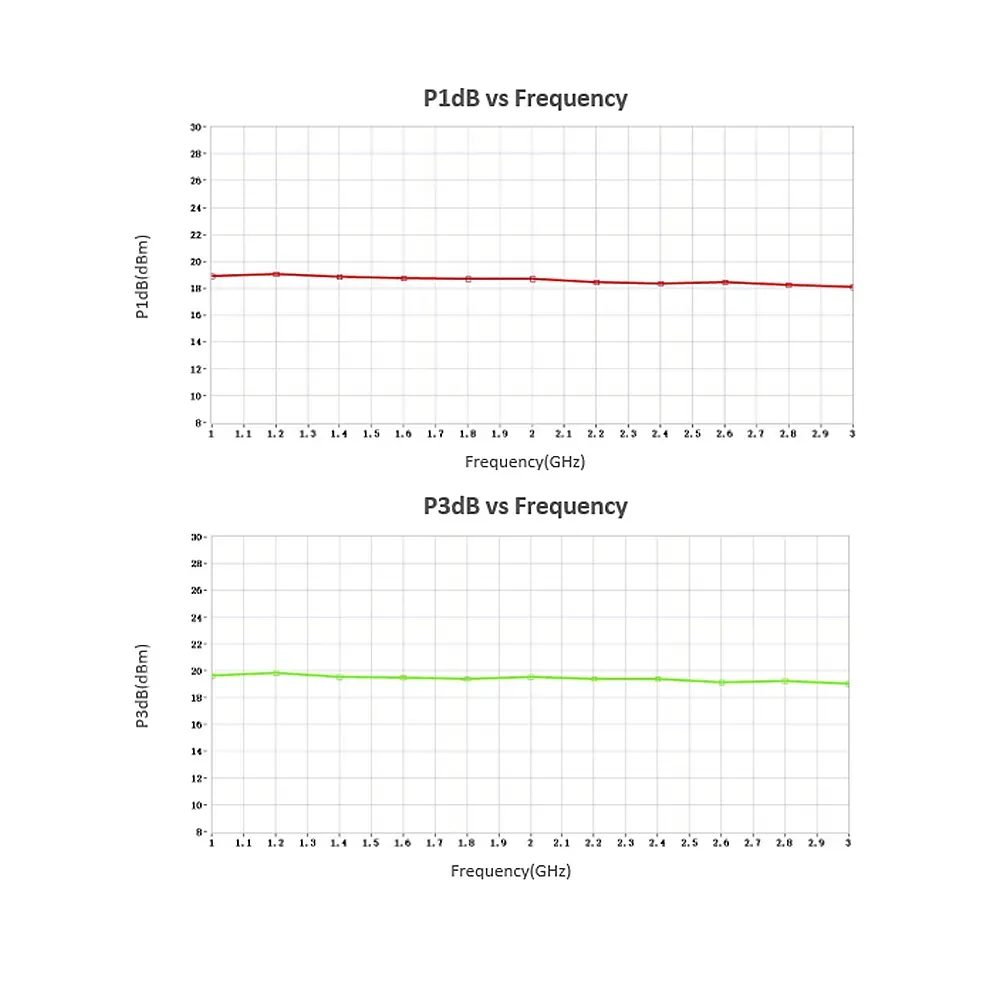

Low Noise Amplifier 0.1-3GHz, NF:1.0dB, Gain:28dB,P1dB:17dBm
| Model: MT-0.1G3G-28-10 |
| Ultra Wide Band: 1-3GHz |
| Gain: 28dB Min |
| Noise Figure: 1.0dB Max |
| Good Power and Gain Flatness |
| 50 Ohm Matched Input / Output |
Low Noise Amplifier 50KHz-20GHz, NF:3.0dB, Gain:35dB, P1dB:15dBm
Low Noise Amplifier 0.01-40GHz, NF:4.5dB, Gain:27dB,P1dB:21dBm
Low Noise Amplifier,0.03-6GHz, NF:2.0dB, Gain:38dB,P1dB:13dBm
Low Noise Amplifier 50KHz-43GHz, NF:5.0dB, Gain:15dB
Low Noise Amplifier 50KHz-50GHz, NF:6dB, Gain:32dB,P1dB:19dBm
Low Noise Amplifier 50KHz-43GHz, NF:5.0dB, Gain:30dB
Low Noise Amplifier , 0.01-50GHz, NF:5.0dB, Gain:50dB,P1dB:13dBm
Low Noise Amplifier 0.1-26GHz, NF:4.0dB, Gain:28dB,P1dB:21dBm
Low Noise Amplifier 0.1-4GHz, NF:2.0dB, Gain:36dB,P1dB:10dBm
Low Noise Amplifier 50K-53GHz, NF:5.0dB, Gain:12dB
