Product code: MT-0.5G40G-28-50

Low Noise Amplifier 0.5-40GHz, NF:5.0dB, Gain:28dB,P1dB:17dBm

Model: MT-0.5G40G-28-50
Ultra Wide Band: 0.5-40GHz
Gain: 28dB Typ
Noise Figure: 5.0dB Typ
Good Power and Gain Flatness
50 Ohm Matched Input / Output
WhatsApp Chat
Skype
Product Part Number
MT-0.5G40G-28-50
Electrical & Mechanical Specification
Electrical:
ParameterMinTypMaxUnits
Frequency range0.5-40GHz

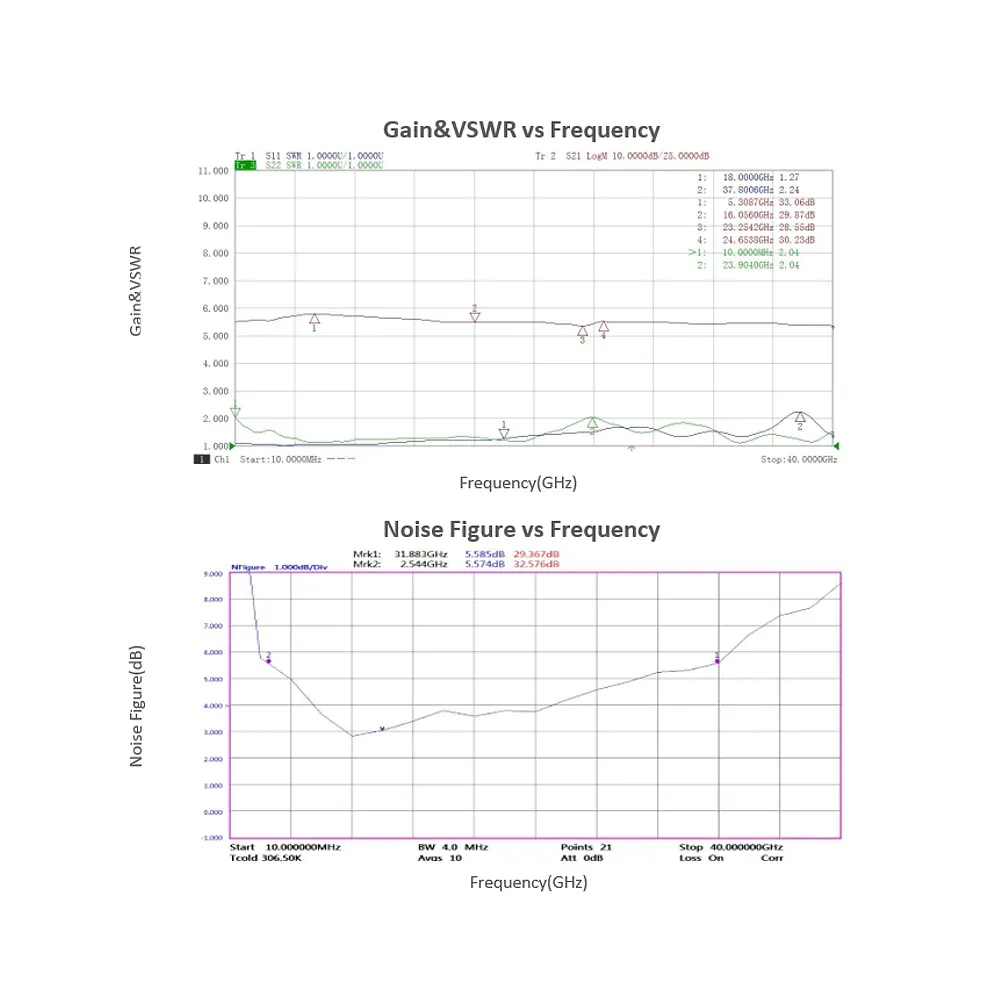

Gain2528dB
Gain Flatness±2.0±2.5dB
Noise Figure5dB

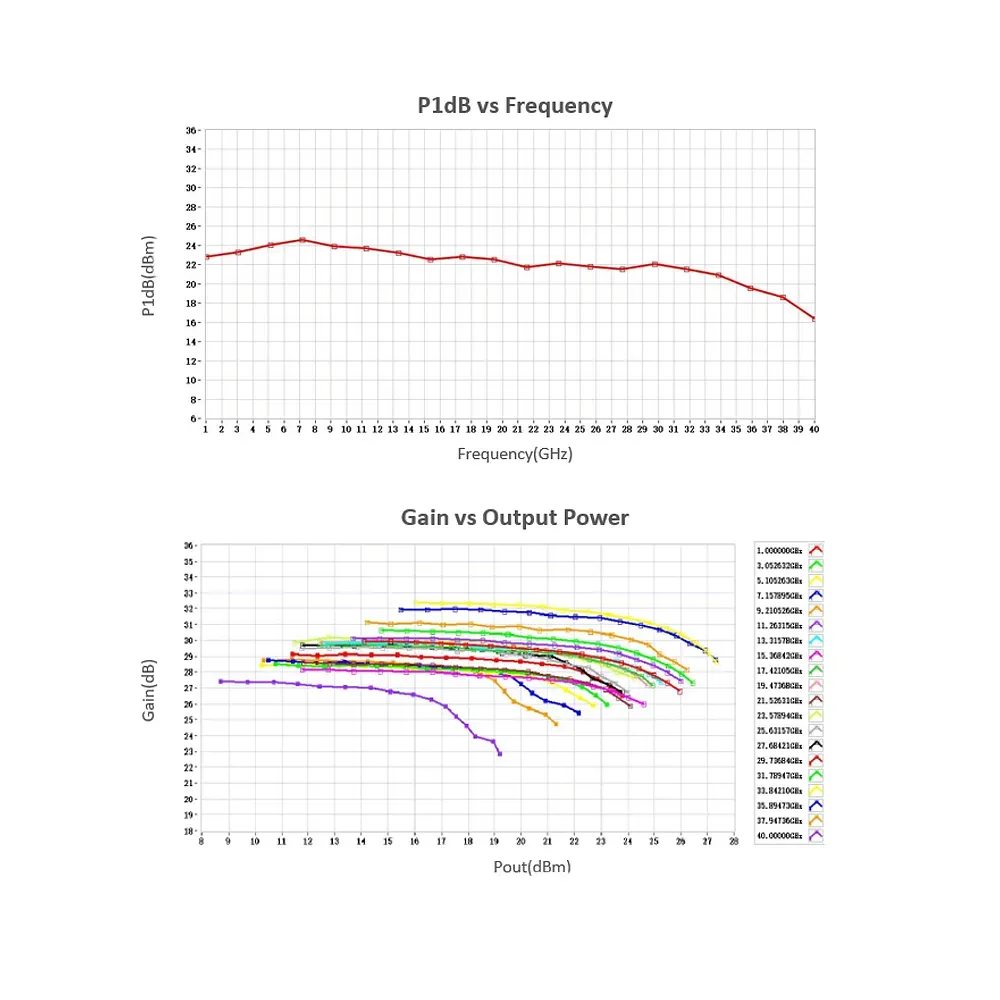

Output P1dB17dBm
Output IP330dBm
Input VSWR1.82.5:1
Output VSWR1.82.5:1
DC Voltage12V DC
DC Supply Current400mA
Impedance50Ohms

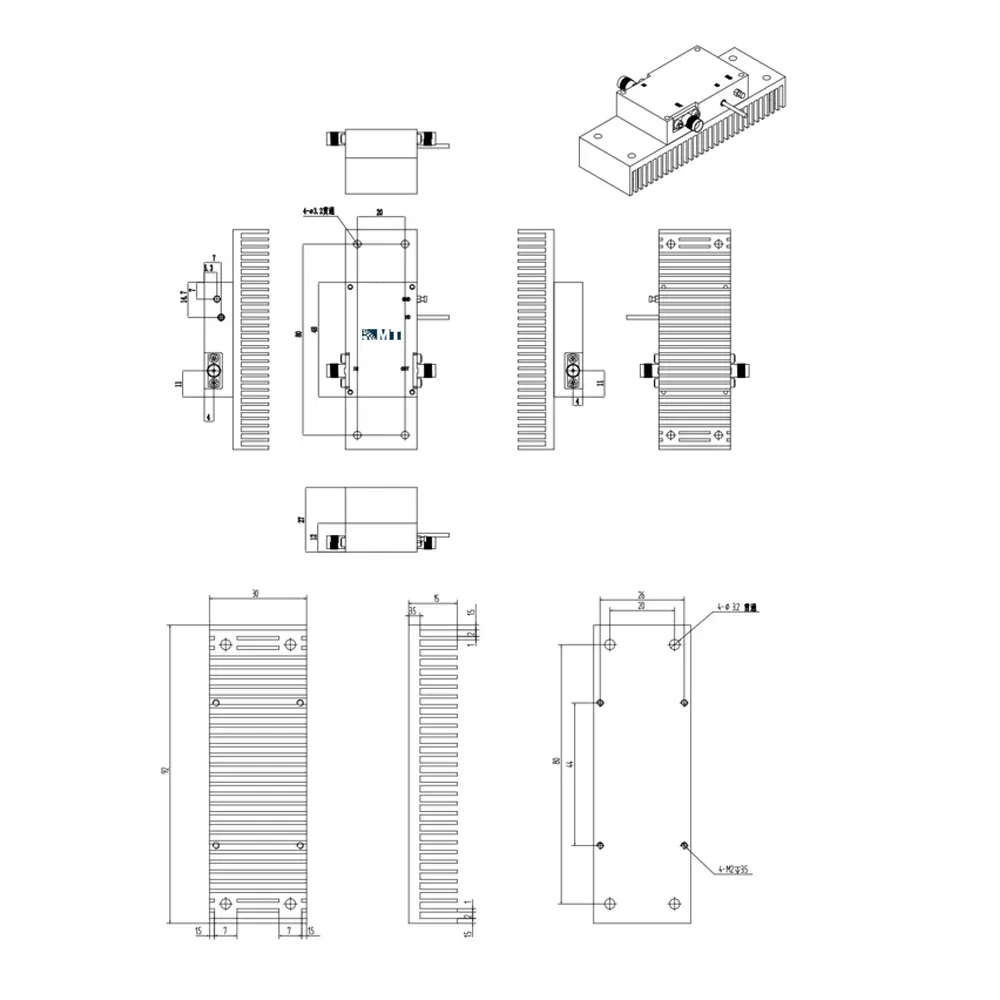

Mechanical:
ParameterValueUnits
Input /Output Connector2.92mm Female/2.92mm Female
DC BiasSolder Pin
Size48*30*12(Without Heatsink) 92*30*27(With Heatsink 92*30*15)mm
Weight/g
Environmental Conditions:
ParameterMinTypMaxUnits
Operating Temperature-45+85℃
Non-operating Temperature-55+125℃
Relative humidity95%
Altitude50,000feet
Shock / Vibration(MIL-STD-810F)25g rms (15 degree 2KHz) endurance, 1 hour per axis
Shock(non operating)20G for 11msc half sin wave,3 axis both directions
